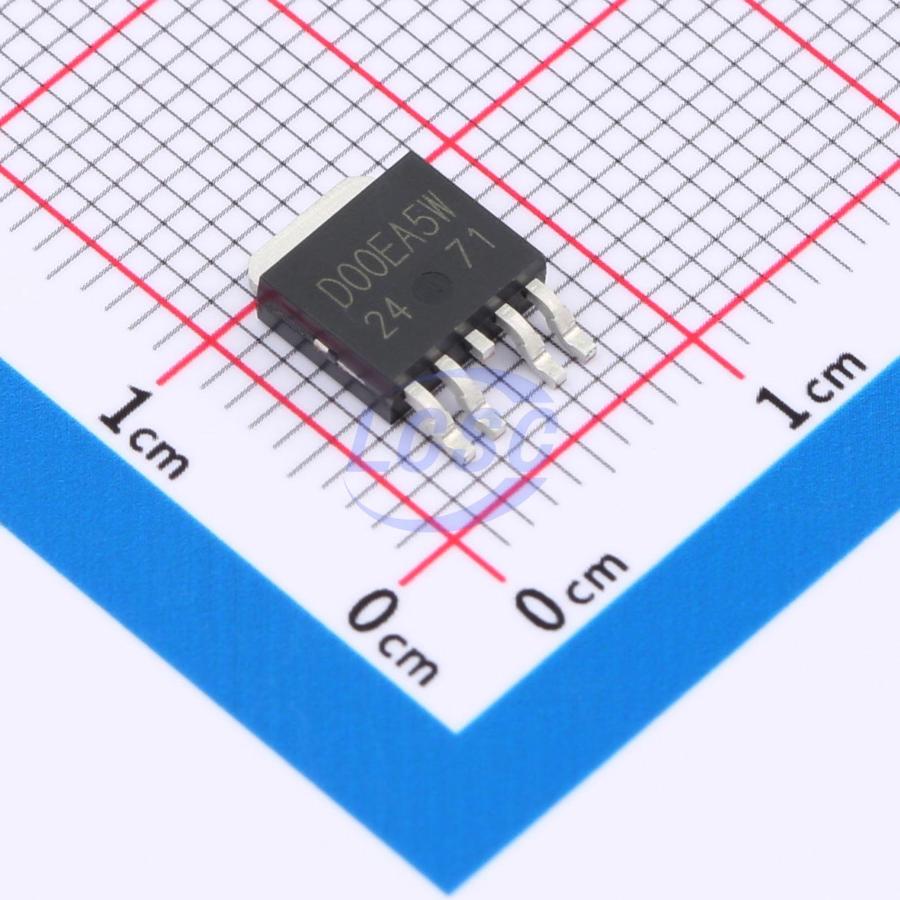

BD00EA5WFP-E2

The BD00EA5Wxxx series are linear regulators designed as low current consumption products for power supplies in various automotive applications. These products are designed for up to 45 V as an absolute maximum voltage and to operate until 500 mA for the output current with low current consumption 17 μA (Typ). These can regulate the output with a very high accuracy, ±1 % (BD00EA5WFP, BD00EA5WHFP) and ±1.5 % (BD00EA5WFP2). The output voltage can be adjusted between 1.2 V and 16 V by an external resistive divider connected to the adjustment pin. These regulators are therefore an ideal for any applications requiring a direct connection to the battery and a low current consumption. A logical “HIGH” at the EN pin turns on the device, and in the other side, the devices are controlled to disable by a logical “LOW” input to the EN pin. The devices feature the integrated Over Current Protection to protect the device from a damage caused by a shortcircuiting or an overload. These products also integrate Thermal Shutdown Protection to avoid the damage by overheating. Furthermore, low ESR ceramic capacitors are sufficiently applicable for the phase compensation.

Applications

• Power Supply for General Purpose

Key features

• Output Shutdown Function (EN Function)
• Over Current Protection (OCP)
• Thermal Shutdown Protection (TSD)
