UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,000 in stock
ROHMDatasheet (PDF)

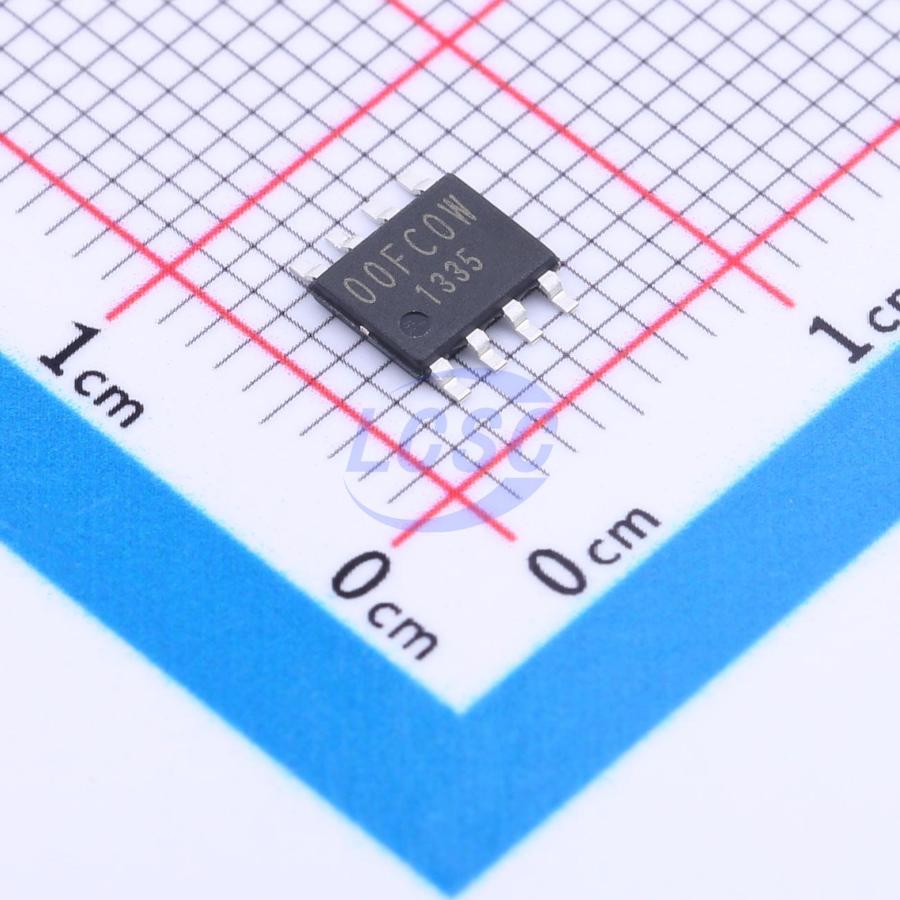

BD00FC0WEFJ-E2
1V~15V Positive Adjustable HTSOP-J8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HTSOP-J8ROHS3 CompliantActive
Single-Output LDO Regulators 35V Withstand Voltage 1A LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BD00FC0WEFJ-E2
- Store part #
- C2909276
- Package / case
- HTSOP-J8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,826 in stock
#C2909276
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.83 | ₹82.83 |
| 10+ | ₹67.87 | ₹678.70 |
| 30+ | ₹60.50 | ₹1,815.00 |
| 100+ | ₹52.91 | ₹5,291.00 |
| 500+ | ₹41.20 | ₹20,600.00 |
| 1,000+ | ₹39.03 | ₹39,030.00 |
1 × ₹82.83
₹82.83
excl. GST
₹97.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD00FC0WEFJ-E2
₹82.83 for 1 + GST
Specifications
- Output Voltage
- 1V~15V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5mA
- Output Configuration
- Positive
- Operating Voltage
- 26.5V
- Output Current
- 1A
- Output Type
- Adjustable
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The BDxxFC0 series are low-saturation regulators. The series’ output voltages are Variable, 3.0V, 3.3V, 5.0V, 6.0V, 7.0V, 8.0V, 9.0V, 10.0V, 12.0V and 15.0V and packages are HTSOP-J8, TO252-3, and TO252-5. This series has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits and a thermal shutdown circuit that protects the IC from thermal damage due to overloading.
Key features
- Output Voltage: 1.0V to 15.0V
- Output Voltage Precision(Ambient temperature Ta = 25℃): ±1%
- Supply Voltage (Output voltage V0 ≥ 3.0V): V0 + 1.0V to 26.5V
- Supply Voltage (Output voltage Vo < 3.0V): 4.0V to 26.5V
- Output Current: 1A
- Operating Temperature Range: -25℃ ≤ Ta ≤ +85℃
