ROHMDatasheet (PDF)

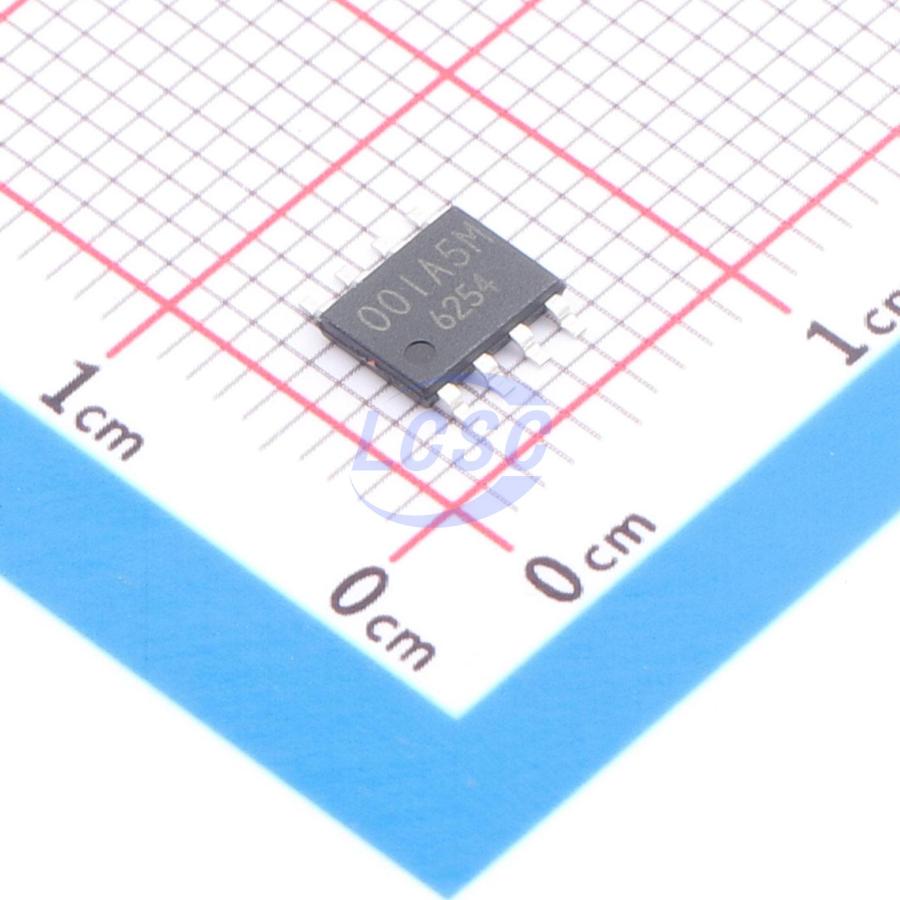

BD00IA5MEFJ-ME2
800mV~4.5V Positive Adjustable HTSOP-J8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HTSOP-J8ROHS3 CompliantActive
Automotive 0.5A Variable Output LDO Regulator
- Manufacturer
- ROHM
- Manufacturer part #
- BD00IA5MEFJ-ME2
- Store part #
- C5557442
- Package / case
- HTSOP-J8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,447 in stock
#C5557442
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.49 | ₹71.49 |
| 10+ | ₹56.51 | ₹565.10 |
| 30+ | ₹50.19 | ₹1,505.70 |
| 100+ | ₹42.16 | ₹4,216.00 |
| 500+ | ₹33.47 | ₹16,735.00 |
| 1,000+ | ₹31.51 | ₹31,510.00 |
1 × ₹71.49
₹71.49
excl. GST
₹84.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD00IA5MEFJ-ME2
₹71.49 for 1 + GST
Specifications
- Output Voltage
- 800mV~4.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Output Type
- Adjustable
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.189 g
Overview
BDxxIA5MEFJ-M BDxxIA5VEFJ-M is a LDO regulator with output current 0.5A. The output accuracy is ±1% of output voltage. With external resistance, it is available to set the output voltage at random (from 0.8V to 4.5V). It has package type: HTSOP-J8. Over current protection (for protecting the IC destruction by output short circuit), circuit current ON/OFF switch (for setting the circuit 0μA at shutdown mode), and thermal shutdown circuit (for protecting IC from heat destruction by over load condition) are all built in. It is usable for ceramic capacitor and enables to improve smaller set and long-life.
Key features
- High accuracy reference voltage circuit
- Built-in Over Current Protection circuit (OCP)
- Built-in Thermal Shut Down circuit (TSD)
- With shut down switch
- AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BD00IA5VEFJ-ME2#C22460712ROHM · HTSOP-J8 | ROHM | HTSOP-J8 | 2,231 | ₹92.12 · 2,231 in stock | View |
 | BD00IC0WEFJ-E2#C190156ROHM · SOIC-8-EP | ROHM | SOIC-8-EP | 165 | ₹30.89 · 165 in stock | View |
 | BD15IC0VEFJ-ME2#C21355443ROHM · HTSOP-J8 | ROHM | HTSOP-J8 | 30 | ₹91.37 · 30 in stock | View |
| BD00IA5MEFJ-LBH2#C7219736ROHM · HTSOP-8-J | ROHM | HTSOP-8-J | On request | Price on request | Quote | |
| BD18IC0VEFJ-ME2#C20788856ROHM · HTSOP-J8 | ROHM | HTSOP-J8 | On request | Price on request | Quote | |
