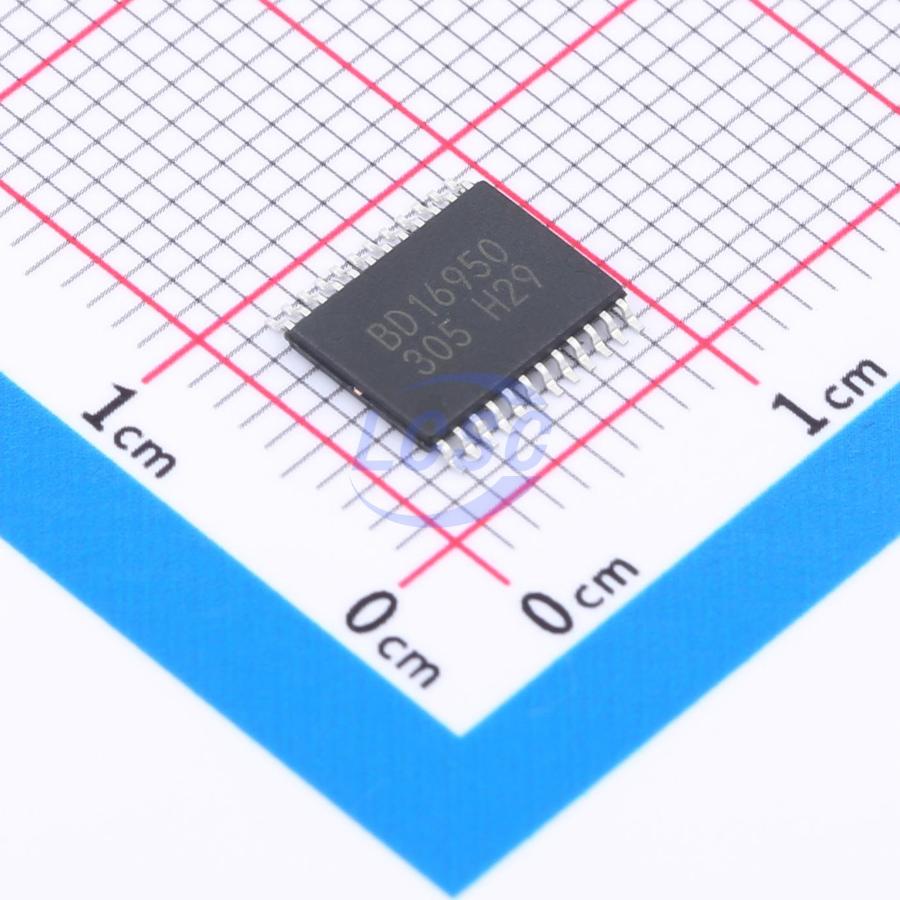

BD16950EFV-CE2
3V~5.5V HTSSOP-24-EP-5.6mm Gate Drivers RoHS
HTSSOP-24-EP-5.6mmROHS3 CompliantActive
2ch Half-Bridge Gate Driver
- Manufacturer
- ROHM
- Manufacturer part #
- BD16950EFV-CE2
- Store part #
- C2676964
- Package / case
- HTSSOP-24-EP-5.6mm
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,823 in stock
#C2676964
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹187.05 | ₹187.05 |
| 10+ | ₹170.42 | ₹1,704.20 |
| 30+ | ₹159.83 | ₹4,794.90 |
| 100+ | ₹149.04 | ₹14,904.00 |
| 500+ | ₹144.06 | ₹72,030.00 |
| 1,000+ | ₹142.13 | ₹1,42,130.00 |
1 × ₹187.05
₹187.05
excl. GST
₹220.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BD16950EFV-CE2
₹187.05 for 1 + GST
Specifications
- Low Level Delay Time
- 250ns
- High Level Delay Time
- 250ns
- Quiescent Current
- 2uA
- Voltage - Supply
- 3V~5.5V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Features
- Interleaved conduction protection;Charge pump boost
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.351 g
Overview
The BD16950EFV is an AEC - Q100 automotive qualified 2 - channel Half - Bridge Gate Driver, controlled by an external MCU through a 16 - bit Serial Peripheral Interface (SPI). Independent control of low - side and high - side N - MOSFETs allows for several MCU controlled modes. A programmable drive current is available to adjust slew - rates, in order to meet EMI and power dissipation requirements. Diagnostics can be read and reset by an external MCU.
Applications
- 4WD Torque Distribution System, Power Window Lifter, Sun Roof Module, Wiper, Seat Belt Tensioner, Seat Positioning etc.
Key features
- AEC - Q100 Qualified
- 2ch Half - Bridge Gate Drivers
- 4 external MOSFETs are Controlled Independently
- Half - Bridge Control Modes are Selected by SPI
- Slew Rates are Controlled with Constant Source /Sink Current.
- 500 kHz Oscillation for Charge Pump.
- 16bit SPI
