ROHMDatasheet (PDF)

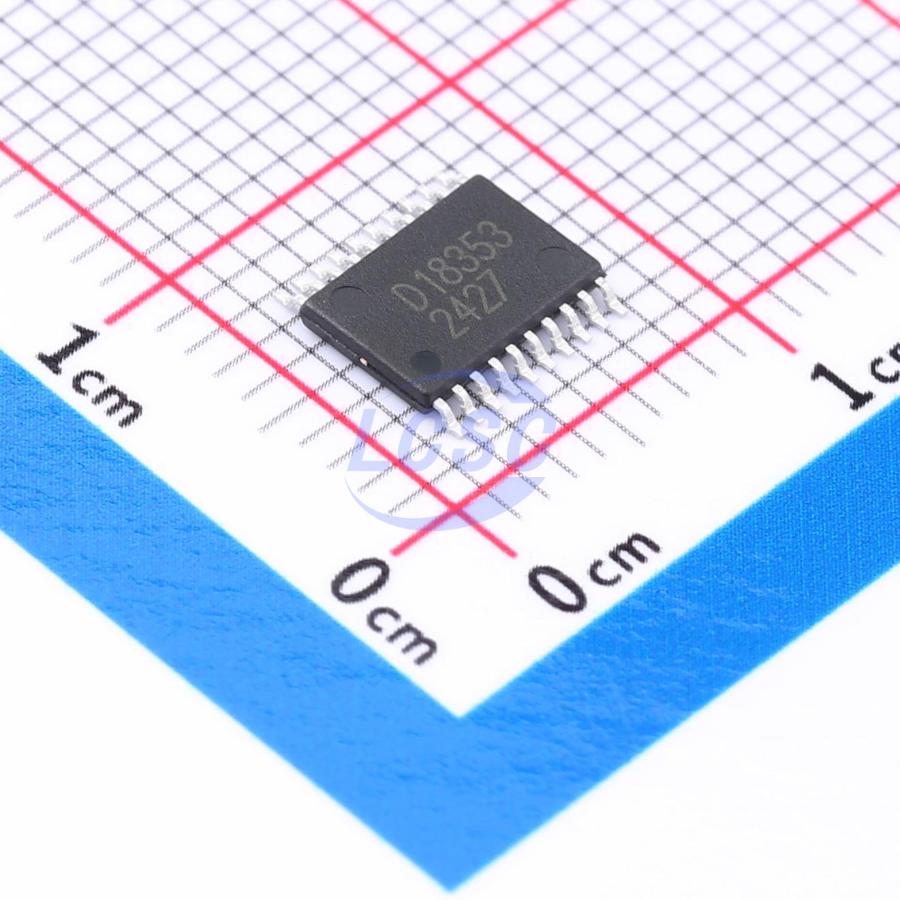

BD18353EFV-ME2
200kHz~2.5MHz 1 DC-DC 5V~65V TSSOP-20-EP LED Drivers RoHS
TSSOP-20-EPROHS3 CompliantActive
1ch High Current LED Controller for Automotive
- Manufacturer
- ROHM
- Manufacturer part #
- BD18353EFV-ME2
- Store part #
- C3191091
- Package / case
- TSSOP-20-EP
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,225 in stock
#C3191091
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.15 | ₹110.15 |
| 10+ | ₹87.82 | ₹878.20 |
| 30+ | ₹76.54 | ₹2,296.20 |
| 100+ | ₹65.26 | ₹6,526.00 |
| 500+ | ₹58.77 | ₹29,385.00 |
| 1,000+ | ₹55.29 | ₹55,290.00 |
1 × ₹110.15
₹110.15
excl. GST
₹129.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD18353EFV-ME2
₹110.15 for 1 + GST
Specifications
- Frequency - Switching
- 200kHz~2.5MHz
- Dimming
- PWM;Analog
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- External
- Operating Temperature
- -40℃~+125℃
- Features
- Over Voltage Protection;Short Circuit Protection;Over-Temperature Protection (OTP);LED open-circuit protection
- Topology
- Boost
- Constant Current Accuracy
- 3%
- Voltage - Input(DC)
- 5V~65V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
BD18353EFV-M/MUF-M is a 1ch LED Controller. High side current detection amplifier is built-in. PWM dimming duty can be freely set with built-in PWM generation circuit. PWM dimming realizes by driving an external P-ch MOSFET. Outputs abnormal LED status to the FAULT_B pin. Two systems of analog dimming are built-in. High precision 3.0 V output power supply for analog dimming and PWM dimming setting is built-in.
Applications
- Automotive Exterior Lamps
- Rear, Turn, DRL/Position, Fog, High/Low Beam etc.
Key features
- AEC-Q100 Qualified
- Functional Safety Supportive Automotive Products
- Rail-to-Rail Current Sense Amplifier
- PWM Dimming Signal Generator
- Over Voltage Protection (OVP)
- Short Circuit Protection (SCP)
- Analog Dimming (two systems)
- DRL Mode (100% Duty) Enable
- Outputs Abnormal LED Status (FAULT_B)
- Spread Spectrum Frequency Modulation
- ON/OFF (SSFM_B) Grade1
