ROHMDatasheet (PDF)

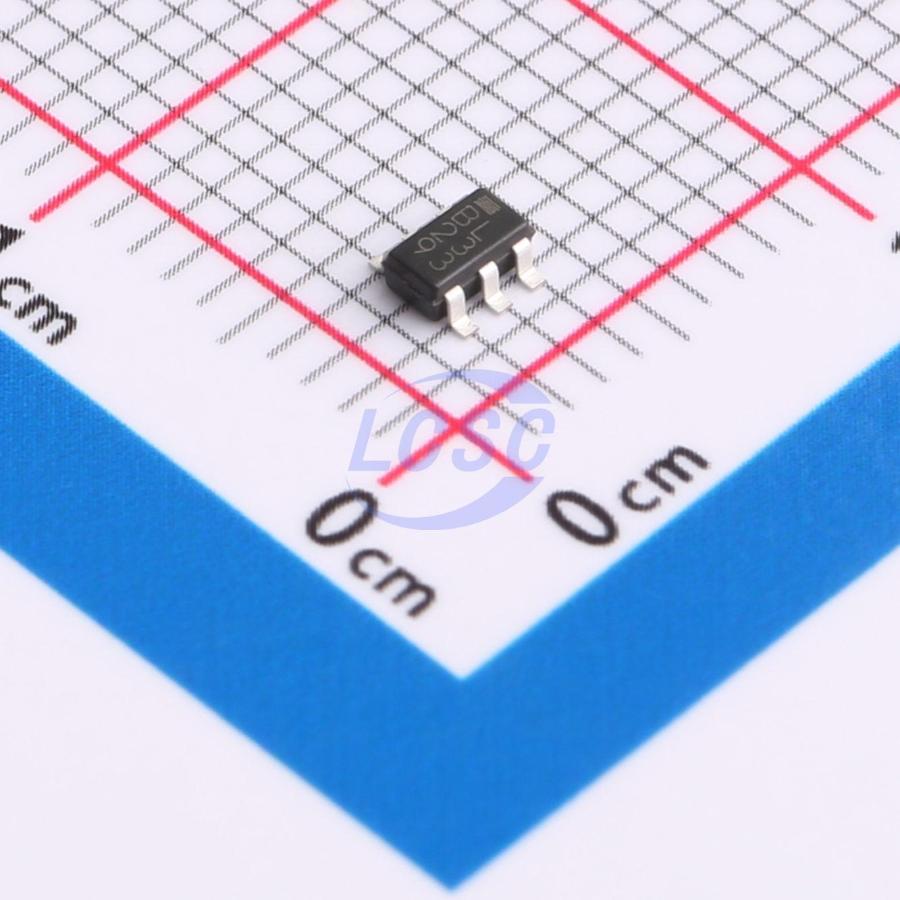

BD2244G-MGTR
1 1.5A Active High High Side Switch SSOP-6-1.6mm Power Distribution Switches, Load Drivers RoHS
SSOP-6-1.6mmROHS3 CompliantActive
1 Channel Compact High Side Switch ICs
- Manufacturer
- ROHM
- Manufacturer part #
- BD2244G-MGTR
- Store part #
- C2150205
- Package / case
- SSOP-6-1.6mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,530 in stock
#C2150205
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.51 | ₹177.55 |
| 50+ | ₹27.52 | ₹1,376.00 |
| 150+ | ₹24.11 | ₹3,616.50 |
| 500+ | ₹19.83 | ₹9,915.00 |
| 3,000+ | ₹17.94 | ₹53,820.00 |
| 6,000+ | ₹16.79 | ₹1,00,740.00 |
5 × ₹35.51
₹177.55
excl. GST
₹209.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD2244G-MGTR
₹177.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Soft-start;Output discharge function;Reverse current blocking
- number of channels
- 1
- Maximum Continuous Current
- 1.5A
- Control Input Logic
- Active High
- RDS(on)
- 100mΩ
- Operating Voltage
- 2.8V~5.5V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
BD2244G-M and BD2245G-M are low on-resistance N-channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications. BD2244G-M and BD2245G-M are equipped with the function of over-current detection, thermal shutdown, under-voltage lockout and soft-start. Moreover, the range of Current limit threshold can be adjusted from 0.2A to 1.7A by changing the external resistance
Applications
- Car accessory
Key features
- AEC-Q100 Qualified
- Adjustable Current Limit Threshold: 0.2A to 1.7A
- Built-in Low On-Resistance (Typ 100mΩ) N-channel MOSFET
- Built-in Soft-Start Circuit
- Output Discharge Function
- Open-Drain Fault Flag Output
- Thermal Shutdown
- Under-Voltage Lockout
- Reverse Current Protection when Power Switch Off
- Control Input Logic: Active-High: BD2244G-M; Active-Low: BD2245G-M
- UL: File No.E243261
- IEC 60950-1 CB scheme approval
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SGM2553YN6G/TR#C699882SGMICRO · SOT-23-6 | SGMICRO | SOT-23-6 | 1,066 | ₹77.37 · 1,066 in stock | View |
 | APL3552ACI-TRG#C503680ANPEC · SOT-23-6 | ANPEC | SOT-23-6 | 5,879 | ₹78.89 · 5,879 in stock | View |
 | MIC2017YM6-TR#C625669MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 10 | ₹185.60 · 10 in stock | View |
 | RS2583YH6#C42459545RUNIC · SOT-23-6 | RUNIC | SOT-23-6 | 35 | ₹29.45 · 35 in stock | View |
 | AP22653AW6-7#C1511768DIODES · SOT-26 | DIODES | SOT-26 | 7,505 | ₹34.49 · 7,505 in stock | View |
