ROHMDatasheet (PDF)

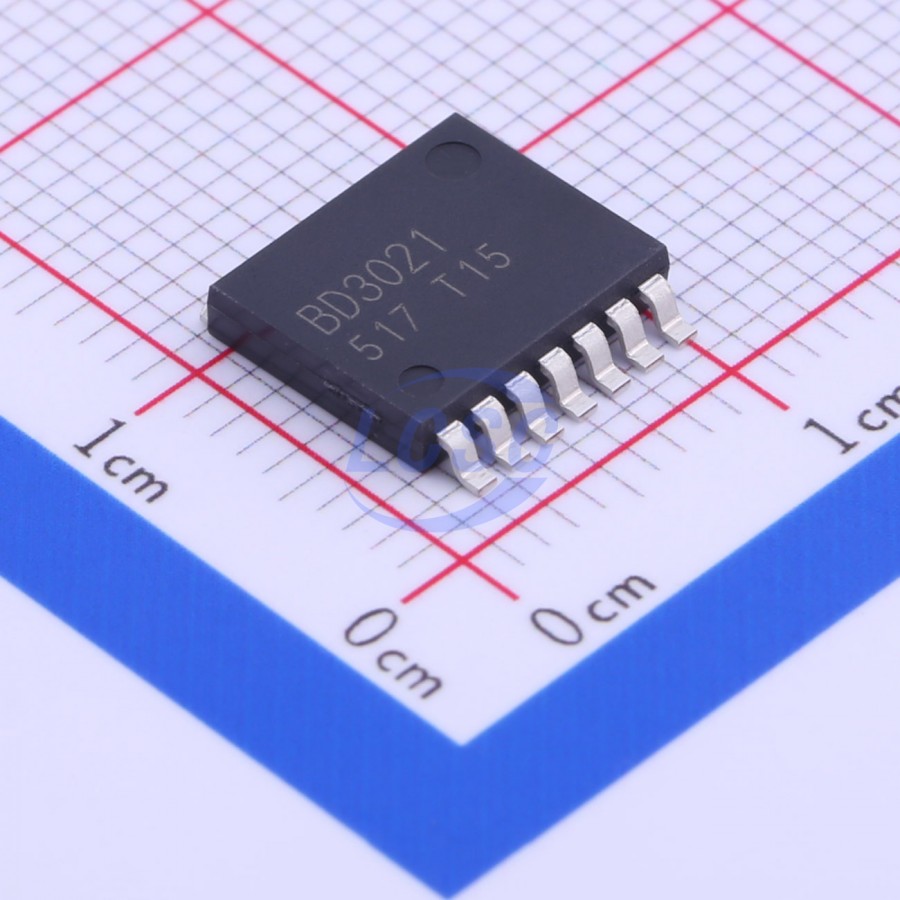

BD3021HFP-MTR
5.1V Positive Fixed HRP-7 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HRP-7ROHS CompliantActive
500mA Output LDO Regulators with Watch-Dog Timer
- Manufacturer
- ROHM
- Manufacturer part #
- BD3021HFP-MTR
- Store part #
- C308589
- Package / case
- HRP-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,968 in stock
#C308589
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹173.87 | ₹173.87 |
| 10+ | ₹157.68 | ₹1,576.80 |
| 30+ | ₹148.82 | ₹4,464.60 |
| 100+ | ₹120.74 | ₹12,074.00 |
| 500+ | ₹116.21 | ₹58,105.00 |
| 1,000+ | ₹114.27 | ₹1,14,270.00 |
1 × ₹173.87
₹173.87
excl. GST
₹205.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BD3021HFP-MTR
₹173.87 for 1 + GST
Specifications
- Output Voltage
- 5.1V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 36V
- Features
- Watchdog timer;Reset function;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.674 g
Overview
BD3020HFP BD3021HFP is a regulator IC with integrated WDT (Watch Dog Timer), high output voltage accuracy ±2.0 % and 80 μA (Typ) low circuit current consumption. These are supports usage of low ESR ceramic capacitor for output stability. The reset detection voltage can be adjusted by connecting resistors on the Vs terminal (BD3020HFP). They can be a stable power supply for any applications while detecting malfunction of microcontrollers.
Applications
- Automotive (body, audio system, navigation system, etc.)
Key features
- Low Circuit Current: 80 μA (T
- Output Voltage: 5.0 V (T
- Output Current: 500
- High Output Voltage Accuracy
- Low ESR ceramic capacitor can be used as output capacitor
- Integrated WDT Reset Circuit
- [BD3020HFP]: Adjustable Detection Voltage through Vs pin
- [BD3021HFP]: WDT Can be Switched ON / OFF by Using INH Pin
- Low saturation voltage by using PMOS output transistor
- VCC Max Voltage: 50 V
- Integrated Over Current Protection and Thermal Shut Down
- HRP7 package
