ROHMDatasheet (PDF)

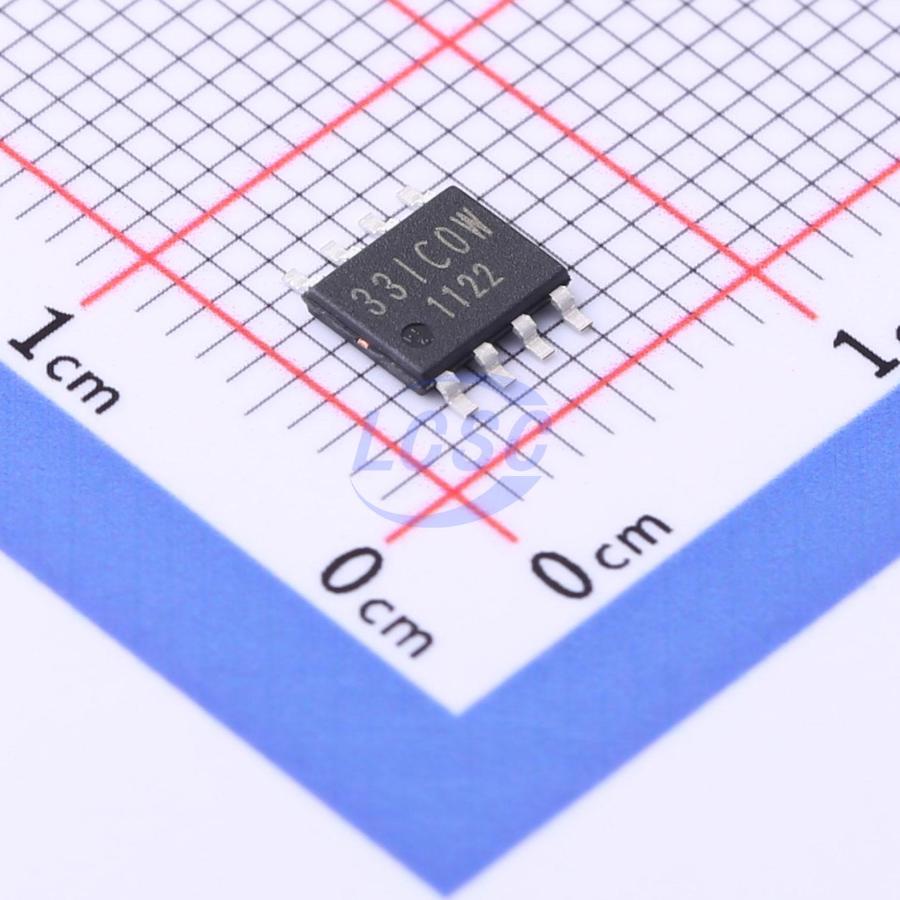

BD33IC0WEFJ-E2
3.3V Positive Fixed HTSOP-J8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HTSOP-J8-EPROHS3 CompliantActive
1A Variable / Fixed Output LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BD33IC0WEFJ-E2
- Store part #
- C2924218
- Package / case
- HTSOP-J8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C2924218
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.40 | ₹140.40 |
| 10+ | ₹113.91 | ₹1,139.10 |
| 30+ | ₹100.77 | ₹3,023.10 |
| 100+ | ₹87.65 | ₹8,765.00 |
| 500+ | ₹79.67 | ₹39,835.00 |
| 1,000+ | ₹75.58 | ₹75,580.00 |
1 × ₹140.40
₹140.40
excl. GST
₹165.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD33IC0WEFJ-E2
₹140.40 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 500uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.184 g
Overview
BDxxIC0W series devices are LDO regulators with an output current of 1.0A. The output accuracy is ±1% of the output voltage. Both fixed and variable output voltage devices are available. The output voltage of the variable output voltage device can be varied from 0.8 to 4.5V using external resistors. Various fixed output voltage devices that do not use external resistors are also available. These LDO regulators are available in two package types: HTSOP - J8 (4.90mm×6.00mm×1.00mm) and HVSOF6 (1.60mm×3.00mm×0.75mm), and can be used in a wide variety of digital appliances. These devices have built in over current protection to protect the device when output is shorted, 0μA shutdown mode and thermal shutdown circuit to protect the device during over load conditions. These LDO regulators are usable with ceramic capacitors that enable a smaller layout and longer life.
Key features
- +/-1% output voltage accuracy
- Built-in Over Current Protection circuit (OCP)
- Built-in Thermal Shut Down circuit (TSD)
- Zero μA Shutdown mode
