ROHMDatasheet (PDF)

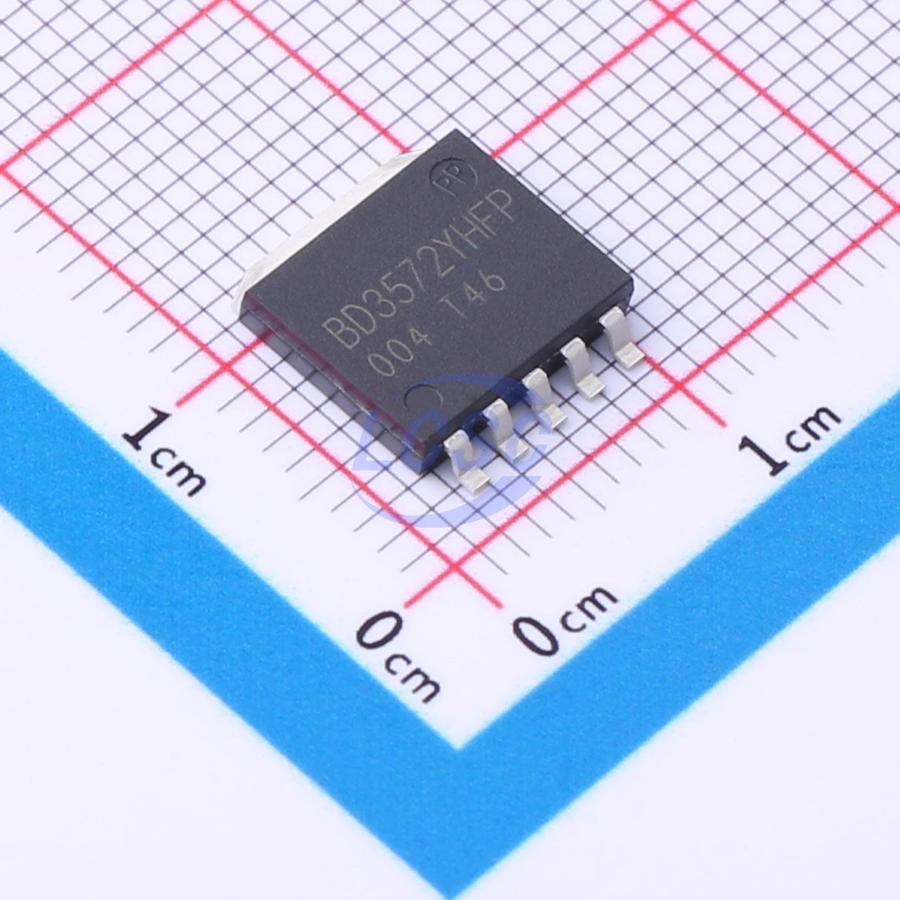

BD3572YHFP-MTR
2.8V~12V Positive Adjustable TO-263-6 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-6ROHS3 CompliantActive
Single-Output LDO Regulators High Voltage LDO
- Manufacturer
- ROHM
- Manufacturer part #
- BD3572YHFP-MTR
- Store part #
- C448574
- Package / case
- TO-263-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,380 in stock
#C448574
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.67 | ₹119.67 |
| 10+ | ₹107.14 | ₹1,071.40 |
| 30+ | ₹100.44 | ₹3,013.20 |
| 100+ | ₹92.66 | ₹9,266.00 |
| 500+ | ₹89.21 | ₹44,605.00 |
| 1,000+ | ₹87.70 | ₹87,700.00 |
1 × ₹119.67
₹119.67
excl. GST
₹141.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BD3572YHFP-MTR
₹119.67 for 1 + GST
Specifications
- Output Voltage
- 2.8V~12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 36V
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.654 g
Overview
BD357xYFP-M BD357xYHFP-M Series regulators feature a high withstand voltage (50 V) and are suitable to use with onboard vehicle microcontrollers. They offer an output current of 500 mA while limiting the quiescent current to 30 μA (Typ). With these devices, a ceramic capacitor may be used at the output for stable operation. The output tolerance is within ±2 % over their operating temperature range (-40 °C to +125 °C). The short circuit protection is folded-type to minimize generation of heat during malfunction. These devices are developed to offer the most robust power supply design under harsh automotive environments. The BD357xYFP-M BD357xYHFP-M Series provide an ideal solution to lower current consumption as well as to simplify the use with battery direct-coupled systems.
Applications
- Onboard Vehicle Devices (Body Control, Car Stereos, Satellite Navigation Systems, etc.)
Key features
- Low-Saturation Voltage Type P-Channel DMOS Output Transistors
- High Output Voltage Precision: ±2 % (10 = 200 mA)
- Low-ESR Ceramic Capacitors can be used as Output Capacitors.
- VCC Power Supply Voltage = 50 V
- Built-in Overcurrent Protection Circuit and Thermal Shutdown Circuit
