ROHMDatasheet (PDF)

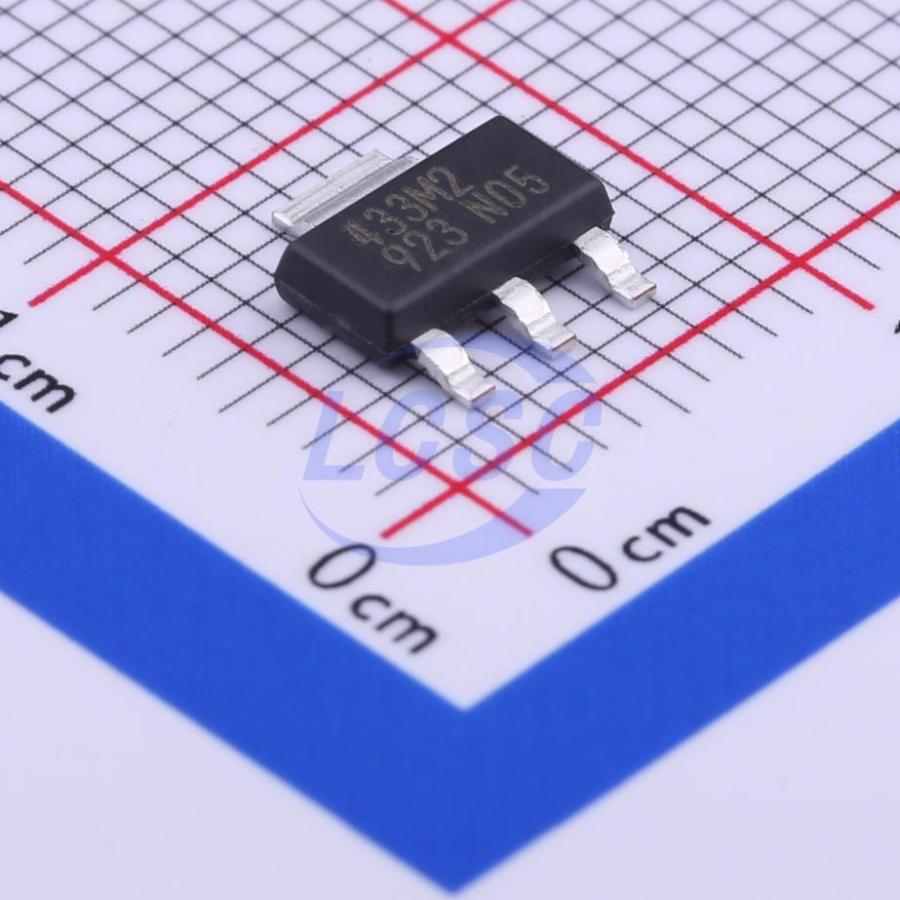

BD433M2FP3-CE2
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-223-3
SOT-223-3ROHS3 CompliantActive
200-mA 3.3-V or 5.0-V Output LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BD433M2FP3-CE2
- Store part #
- C79957
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,283 in stock
#C79957
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.48 | ₹86.48 |
| 10+ | ₹70.41 | ₹704.10 |
| 30+ | ₹62.37 | ₹1,871.10 |
| 100+ | ₹54.55 | ₹5,455.00 |
| 500+ | ₹45.21 | ₹22,605.00 |
| 1,000+ | ₹42.60 | ₹42,600.00 |
1 × ₹86.48
₹86.48
excl. GST
₹102.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BD433M2FP3-CE2
₹86.48 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 42V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- Automotive (body, audio system, navigation system, etc.)
Key features
- Qualified for Automotive Applications
- Wide Temperature Range: -40°C to +150°C
- Wide Operating Input Range: 3.0 V to 42 V
- Low Quiescent Current: 40 μA (Typ.)
- Output Current: 200 mA
- High Output Voltage Accuracy: ±2%
- Output Voltage: 3.3 V or 5.0 V (Typ.)
- Enable Input (Only W: Includes Enable Input)
- Over Current Protection (OCP)
- Thermal Shutdown Protection (TSD)
- AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BD433M2WFP3-CE2#C3745731ROHM · SOT-223-4F | ROHM | SOT-223-4F | 7 | ₹238.78 · 7 in stock | View |
 | BD733L2FP3-CE2#C2981755ROHM · SOT-223-4 | ROHM | SOT-223-4 | 1,366 | ₹72.28 · 1,366 in stock | View |
 | RS3007-3.3YD3#C5372516RUNIC · SOT-223 | RUNIC | SOT-223 | 1,215 | ₹30.20 · 1,215 in stock | View |
| RS3015-3.3XD3#C42459564RUNIC · SOT-223 | RUNIC | SOT-223 | 2,405 | ₹18.44 · 2,405 in stock | View | |
 | TPMCP1790-3302E/DB#C42394080TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 4,803 | ₹66.02 · 4,803 in stock | View |
