ROHMDatasheet (PDF)

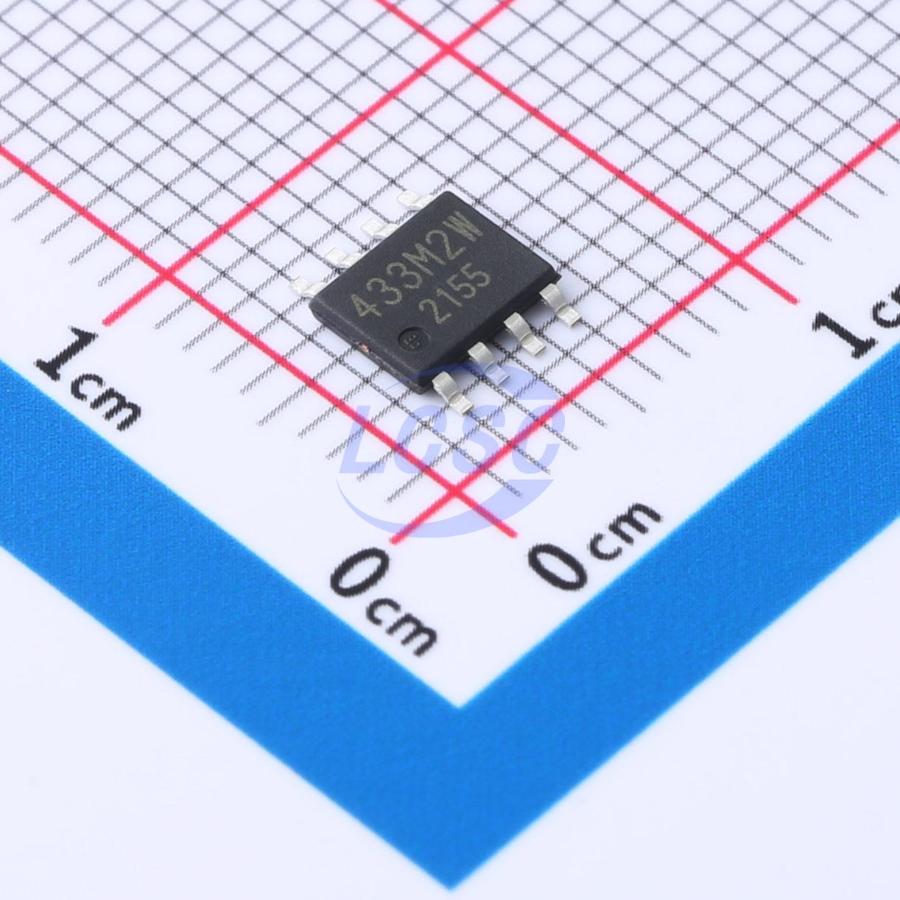

BD433M2WEFJ-CE2
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA HTSOP-J8
HTSOP-J8ROHS3 CompliantActive
200-mA 3.3-V or 5.0-V Output LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BD433M2WEFJ-CE2
- Store part #
- C2981751
- Package / case
- HTSOP-J8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
334 in stock
#C2981751
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.95 | ₹92.95 |
| 10+ | ₹75.54 | ₹755.40 |
| 30+ | ₹66.84 | ₹2,005.20 |
| 100+ | ₹58.34 | ₹5,834.00 |
| 500+ | ₹53.12 | ₹26,560.00 |
| 1,000+ | ₹50.51 | ₹50,510.00 |
1 × ₹92.95
₹92.95
excl. GST
₹109.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD433M2WEFJ-CE2
₹92.95 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 42V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.228 g
Overview
Applications
- Automotive (body, audio systems, navigation systems, etc.)
Key features
- Low quiescent regulator with 45 V absolute maximum voltage, ±2% output voltage accuracy (3.3 V or 5.0 V: typical), 200 mA output current, and 40 μA (typical) current consumption
- Logic "high" enables device, "low" disables device (W only: includes switch)
- Ceramic capacitors applicable for output capacitor phase compensation
- Overcurrent protection against device damage due to short circuit
- Integrated thermal shutdown protects device from overload under overload conditions
- Suitable for automotive applications
- Wide temperature range: -40°C to +150°C
- Wide operating input range: 3.0 V to 42 V
- Low quiescent current: 40 μA (typical)
- Output current: 200 mA
- High output voltage accuracy: ±2%
- Output voltage: 3.3 V or 5.0 V (typical)
- Enable input (W only: includes enable input)
- Overcurrent protection (OCP)
- Thermal shutdown protection (TSD)
- AEC-Q100 qualified (Grade 1)
