ROHMDatasheet (PDF)

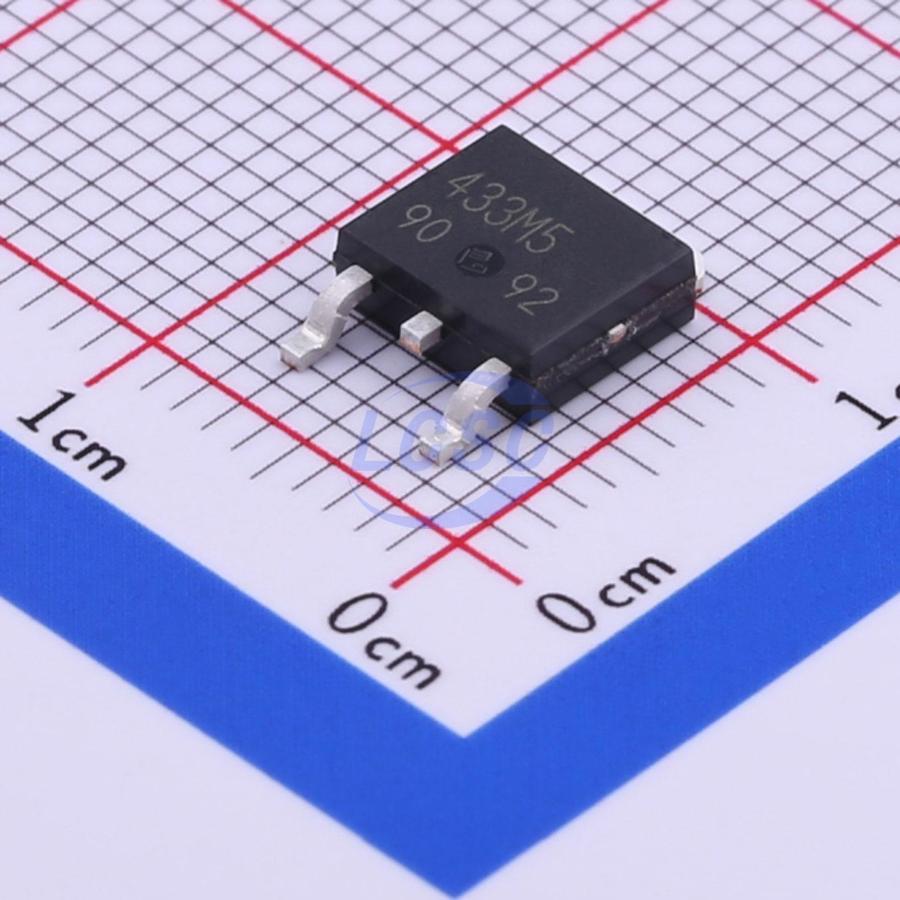

BD433M5FP-CE2
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-252
TO-252ROHS3 CompliantActive
500-mA 3.3-V or 5.0-V Output LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BD433M5FP-CE2
- Store part #
- C442601
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,973 in stock
#C442601
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.22 | ₹103.22 |
| 10+ | ₹86.48 | ₹864.80 |
| 30+ | ₹78.02 | ₹2,340.60 |
| 100+ | ₹69.54 | ₹6,954.00 |
| 500+ | ₹58.46 | ₹29,230.00 |
| 1,000+ | ₹55.86 | ₹55,860.00 |
1 × ₹103.22
₹103.22
excl. GST
₹121.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BD433M5FP-CE2
₹103.22 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 38uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 42V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.464 g
Overview
Applications
- Automotive (body, audio system, navigation system, etc.)
Key features
- 45 V absolute maximum voltage
- Output voltage accuracy of ±2 % (3.3 V or 5.0 V: Typ.)
- 500 mA output current
- 38 μA (Typ.) current consumption
- A logical “HIGH” at the CTL enables the device and “LOW” at the CTL disables the device (Only W: Includes Enable Input)
- Ceramic capacitors can be used for compensation of the output capacitor phase
- Overcurrent protection to protect the device from damage caused by short - circuiting
- Integrated thermal shutdown to protect the device from overheating at overload conditions
- Qualified for Automotive Applications
- Wide Temperature Range (Tj): -40 °C to +150 °C
- Wide Operating Input Range: 3.0 V to 42 V
- Low Quiescent Current: 38 μA (Typ.)
- High Output Voltage Accuracy: ±2 %
- Output Voltage: 3.3 V or 5.0 V (Typ.)
- Enable Input (Only W)
- Overload Current Protection (OCP)
- Thermal Shutdown Protection (TSD)
- AEC - Q100 Qualified
