ROHMDatasheet (PDF)

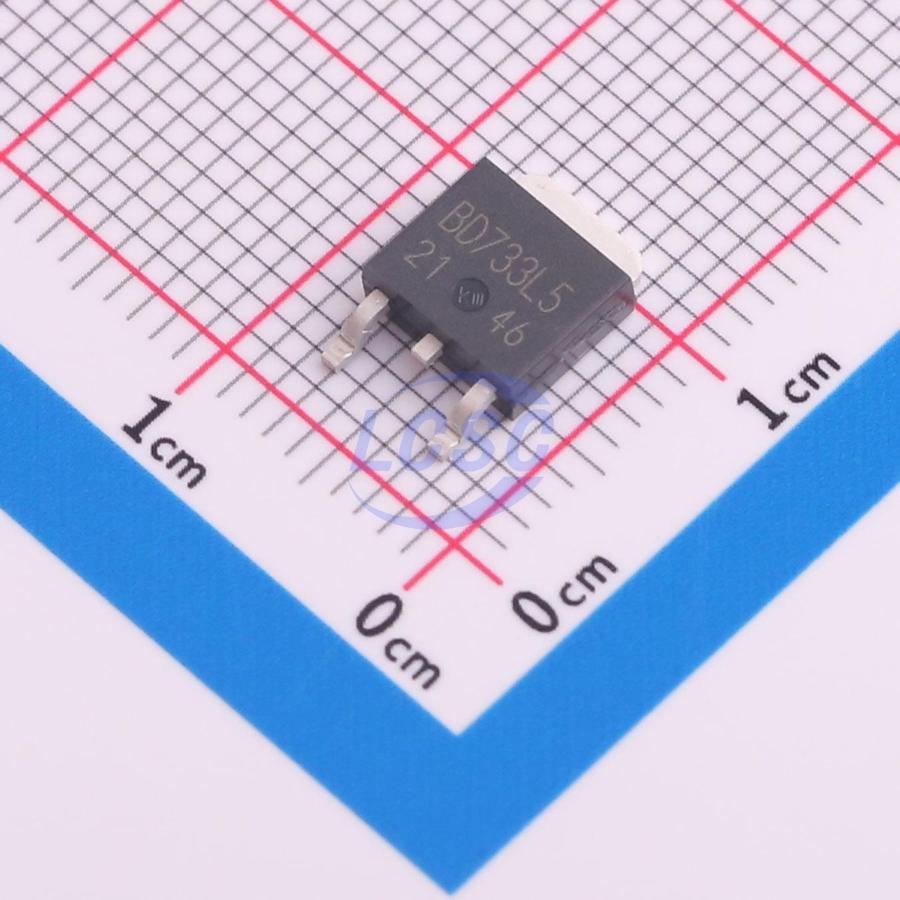

BD733L5FP-CE2
3.3V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252ROHS3 CompliantActive
Single-Output LDO Regulator, Ultra Low Quiescent Current
- Manufacturer
- ROHM
- Manufacturer part #
- BD733L5FP-CE2
- Store part #
- C509724
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,024 in stock
#C509724
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.21 | ₹138.21 |
| 10+ | ₹107.77 | ₹1,077.70 |
| 30+ | ₹92.65 | ₹2,779.50 |
| 100+ | ₹77.53 | ₹7,753.00 |
| 500+ | ₹68.47 | ₹34,235.00 |
| 1,000+ | ₹63.93 | ₹63,930.00 |
1 × ₹138.21
₹138.21
excl. GST
₹163.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BD733L5FP-CE2
₹138.21 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 6uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 45V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.052 g
Overview
The BD7xxL5FP-C are low quiescent regulators featuring 50V absolute maximum voltage, and output voltage accuracy of ±2%, 500mA output current and 6μA (Typ.) current consumption. There regulators are therefore ideal for applications requiring a direct connection to the battery and a low current consumption. Ceramic capacitors can be used for compensation of the output capacitor phase. Furthermore, these ICs also feature overcurrent protection to protect the device from damage caused by short-circuiting and an integrated thermal shutdown to protect the device from overheating at overload conditions.
Applications
- Automotive (body, audio system, navigation system, etc.)
Key features
- Ultra low quiescent current: 6.0μA (Typ.)
- Output current capability: 500mA
- Output voltage: 3.3 V or 5.0 V(Typ.)
- High output voltage accuracy: ±2%
- Low saturation voltage by using PMOS output transistor.
- Integrated overcurrent protection to protect the IC from damage caused by output short-circuiting.
- Integrated thermal shutdown to protect the IC from overheating at overload conditions.
- Low ESR ceramic capacitor can be used as output capacitor.
- TO252-3 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ICW1238A33T2GQ1#C22395385ICW · TO-252-2 | ICW | TO-252-2 | 48 | ₹48.54 · 48 in stock | View |
 | BD433M5FP-CE2#C442601ROHM · TO-252 | ROHM | TO-252 | 1,973 | ₹103.22 · 1,973 in stock | View |
 | TPS7B8833QKVURQ1#C2873619TI · TO-252-3 | TI | TO-252-3 | 25 | ₹292.32 · 25 in stock | View |
 | TPS7B8833QKVURQ1R2#C3746819TI · TO-252 | TI | TO-252 | 1 | ₹583.05 · 1 in stock | View |
 | BD3570FP-E2#C79634ROHM · TO-252-2(DPAK) | ROHM | TO-252-2(DPAK) | 1,723 | ₹141.38 · 1,723 in stock | View |
