ROHMDatasheet (PDF)

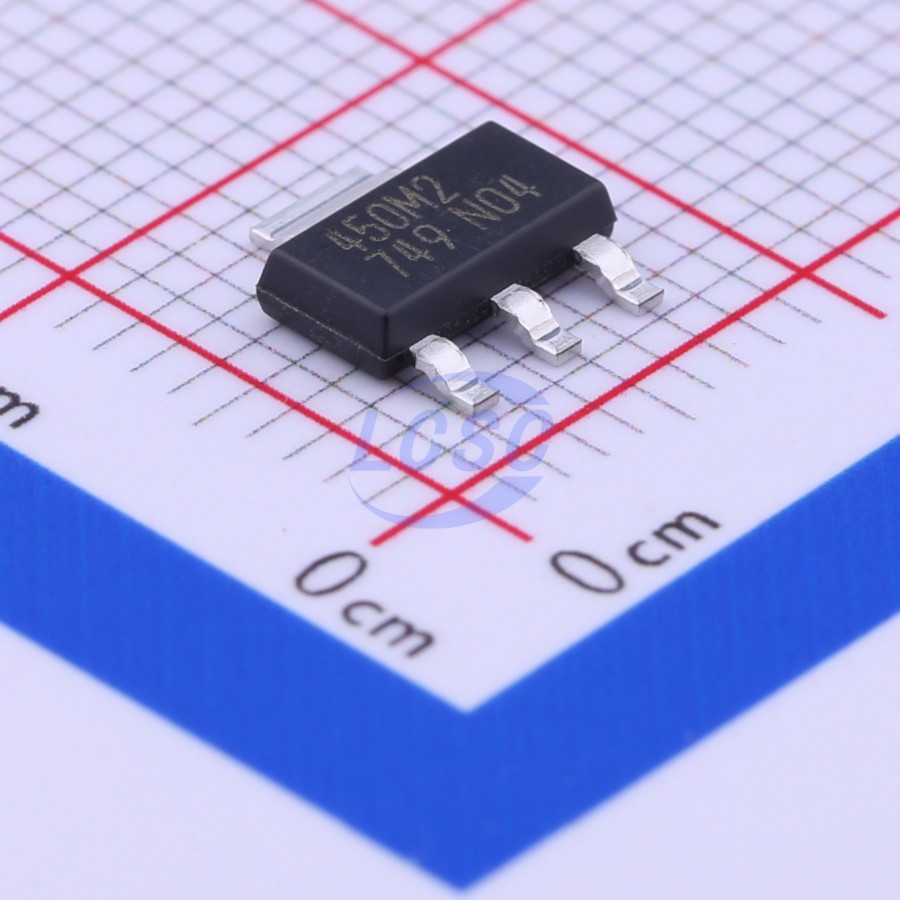

BD450M2FP3-CE2
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-223-4(F)
SOT-223-4(F)ROHS3 CompliantActive
200-mA 3.3-V or 5.0-V Output LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BD450M2FP3-CE2
- Store part #
- C308595
- Package / case
- SOT-223-4(F)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,118 in stock
#C308595
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.66 | ₹93.66 |
| 10+ | ₹77.14 | ₹771.40 |
| 30+ | ₹69.11 | ₹2,073.30 |
| 100+ | ₹60.84 | ₹6,084.00 |
| 500+ | ₹50.21 | ₹25,105.00 |
| 1,000+ | ₹47.59 | ₹47,590.00 |
1 × ₹93.66
₹93.66
excl. GST
₹110.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BD450M2FP3-CE2
₹93.66 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 90uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 42V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.389 g
Overview
Applications
- Automotive (body, audio systems, navigation systems, etc.)
Key features
- Absolute maximum voltage: 45 V
- Output voltage accuracy: ±2% (3.3 V or 5.0 V: typical)
- Output current: 200 mA
- Current consumption: 40 μA (typical)
- Ceramic capacitor compatible for output capacitor phase compensation
- Overcurrent protection (OCP)
- Thermal shutdown protection (TSD)
- Automotive applications
- Wide temperature range: -40 °C to +150 °C
- Wide operating input range: 3.0 V to 42 V
- Low quiescent current: 40 μA (typical)
- High output voltage accuracy: ±2%
- Output voltage: 3.3 V or 5.0 V (typical)
- Enable input (W suffix only: includes enable input)
- AEC-Q100 qualified (Grade 1)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BD450M2WFP3-CZ1E2#C308597ROHM · SOT-223-4F | ROHM | SOT-223-4F | 5 | ₹144.71 · 5 in stock | View |
 | BD450M2WFP3-CE2#C308596ROHM · SOT-223-4(F) | ROHM | SOT-223-4(F) | 1,365 | ₹93.35 · 1,365 in stock | View |
 | TPL803150Q-ST4R-S#C519333793PEAK · SOT-223-3 | 3PEAK | SOT-223-3 | 140 | ₹116.87 · 140 in stock | View |
 | RS3007-5.0YD3#C5372519RUNIC · SOT-223 | RUNIC | SOT-223 | 1,085 | ₹30.20 · 1,085 in stock | View |
 | BD750L2FP3-CE2#C2939036ROHM · SOT-223-4F | ROHM | SOT-223-4F | 1,767 | ₹139.30 · 1,767 in stock | View |
