ROHMDatasheet (PDF)

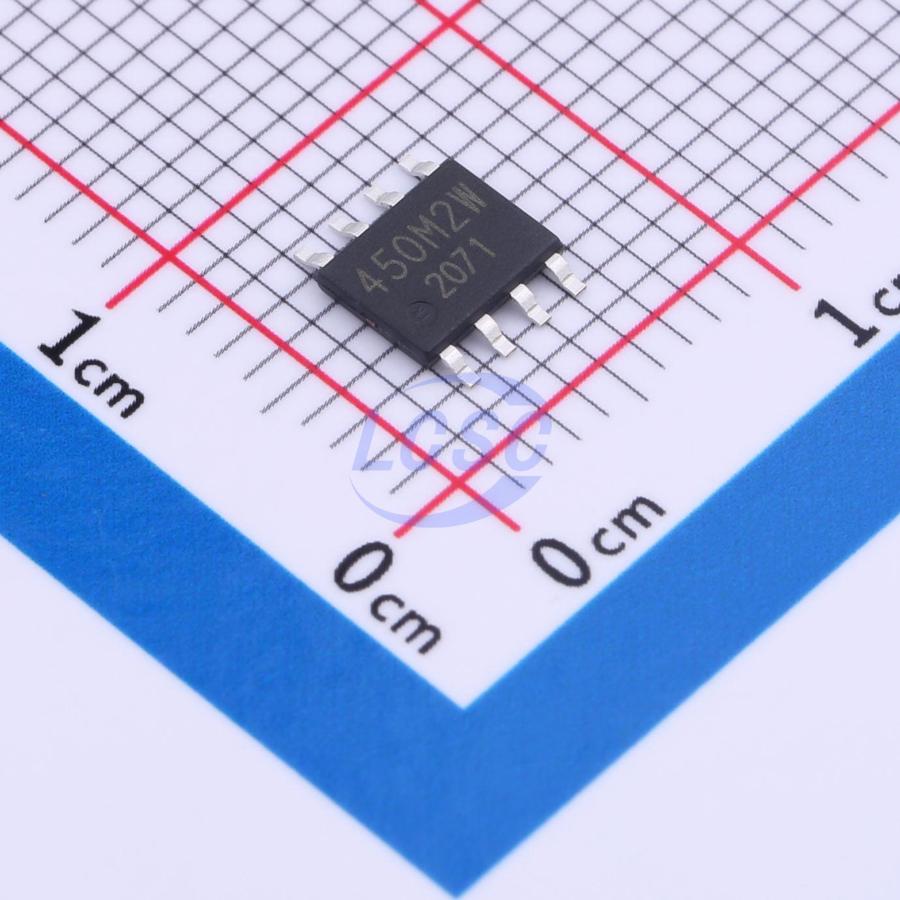

BD450M2WEFJ-CE2
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA HTSOP-J8
HTSOP-J8ROHS3 CompliantActive
200-mA 3.3-V or 5.0-V Output LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BD450M2WEFJ-CE2
- Store part #
- C3029510
- Package / case
- HTSOP-J8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,304 in stock
#C3029510
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.18 | ₹110.18 |
| 10+ | ₹91.27 | ₹912.70 |
| 30+ | ₹81.93 | ₹2,457.90 |
| 100+ | ₹72.58 | ₹7,258.00 |
| 500+ | ₹60.84 | ₹30,420.00 |
| 1,000+ | ₹57.80 | ₹57,800.00 |
1 × ₹110.18
₹110.18
excl. GST
₹130.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD450M2WEFJ-CE2
₹110.18 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 42V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
Applications
- Automotive (body, audio system, navigation system, etc.)
Key features
- 45 V absolute maximum voltage
- Output voltage accuracy: ±2% (3.3 V or 5.0 V: Typ.)
- Output current: 200 mA
- Current consumption: 40 μA (Typ.)
- Ceramic capacitor applicable for output capacitor phase compensation
- Overcurrent protection (OCP)
- Thermal shutdown protection (TSD)
- Automotive applications
- Wide temperature range: -40 °C to +150 °C
- Wide operating input range: 3.0 V to 42 V
- Low quiescent current: 40 μA (Typ.)
- High output voltage accuracy: ±2%
- Output voltage: 3.3 V or 5.0 V (Typ.)
- Enable input (W suffix only: includes enable input)
- AEC-Q100 qualified (Grade 1)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BD450S2WEFJ-CE2#C26929461ROHM · HTSOP-J8 | ROHM | HTSOP-J8 | 128 | ₹74.68 · 128 in stock | View |
 | BD450S5WEFJ-CE2#C22422636ROHM · HTSOP-J8 | ROHM | HTSOP-J8 | 273 | ₹97.09 · 273 in stock | View |
| BD820F50EFJ-CE2#C3747509ROHM · HTSOP-J8 | ROHM | HTSOP-J8 | 2,500 | ₹140.16 · 2,500 in stock | View | |
 | AP7375Q-50SP-13#C5185306DIODES · SO-8-EP | DIODES | SO-8-EP | On request | ₹82.41 · 0 in stock | View |
 | BD750L2EFJ-CE2#C2766153ROHM · HTSOP-J8 | ROHM | HTSOP-J8 | 655 | ₹99.09 · 655 in stock | View |
