ROHM

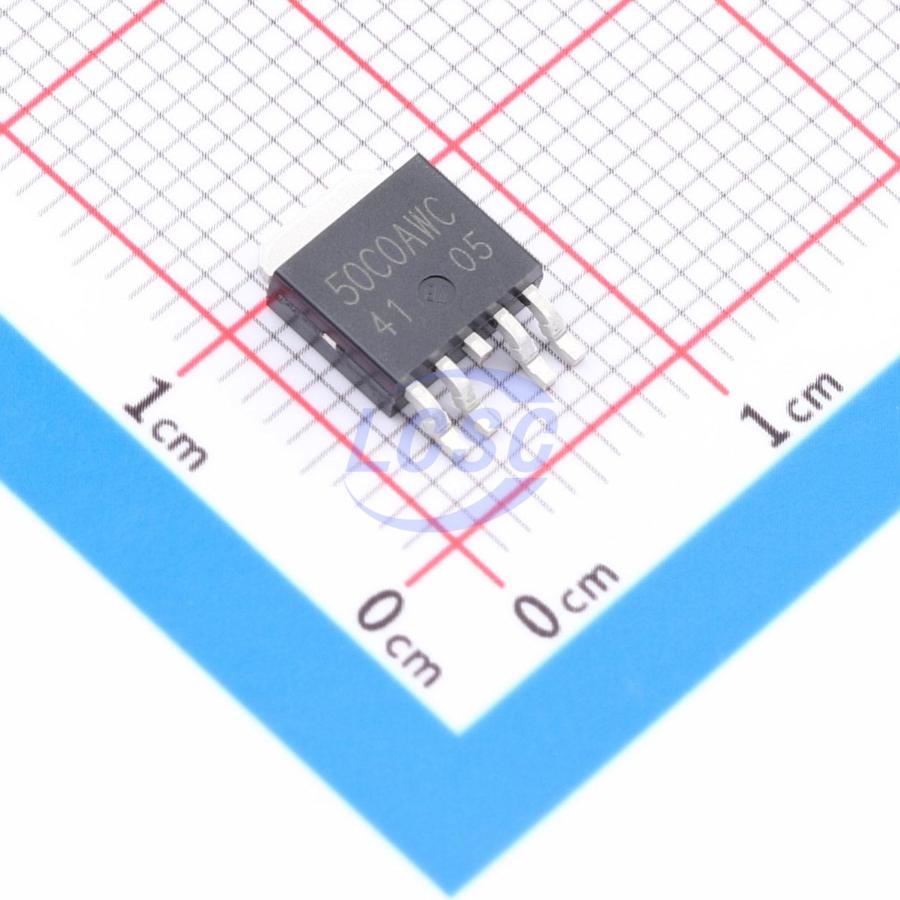

BD50C0AWFP-CE2

1V~15V Positive Adjustable TO-252-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-252-5ROHS3 CompliantActive

Manufacturer: ROHM
Manufacturer part #: BD50C0AWFP-CE2
Store part #: C7219906
Package / case: TO-252-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C7219906

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹293.57	₹293.57
10+	₹250.43	₹2,504.30
30+	₹223.32	₹6,699.60
100+	₹195.58	₹19,558.00
500+	₹183.21	₹91,605.00
1,000+	₹177.80	₹1,77,800.00

Quantity (min 1)

1 × ₹293.57

₹293.57

excl. GST

₹346.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

BD50C0AWFP-CE2

₹293.57 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1V~15V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 500uA
Output Configuration: Positive
Operating Voltage: 26.5V
Output Type: Adjustable
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.444 g

Overview

The BDxxC0A-C series and the BDxxC0AW-C series are low-saturation regulators. This series feature variable and fixed voltage output with selectable Shutdown switch (referred to as SW); Vout-3.3V, 5.0V, 8.0V and 9.0V. Five conventional PKGs; TO252-3/5, HRP5 and TO263-3(F)/5 are available. This series has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits and a thermal Shutdown circuit that protects the IC from thermal damage due to overloading.

Applications

Automotive (body, audio system, navigation system, etc.)

Key features

Output current capability: 1A
Output voltage: Variable, 3.3V, 5.0V, 8.0V and 9.0V
High output voltage accuracy (Ta = 25°C, TO252-3/5, HRP5): ±1%
Low saturation with PDMOS output
Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
Built-in thermal Shutdown circuit for protecting the IC from thermal damage due to overloading
Low ESR Capacitor
TO252-3/5, HRP5, TO263-3(F)/5 package
AEC-Q100 Qualified (Grade 1)
