ROHMDatasheet (PDF)

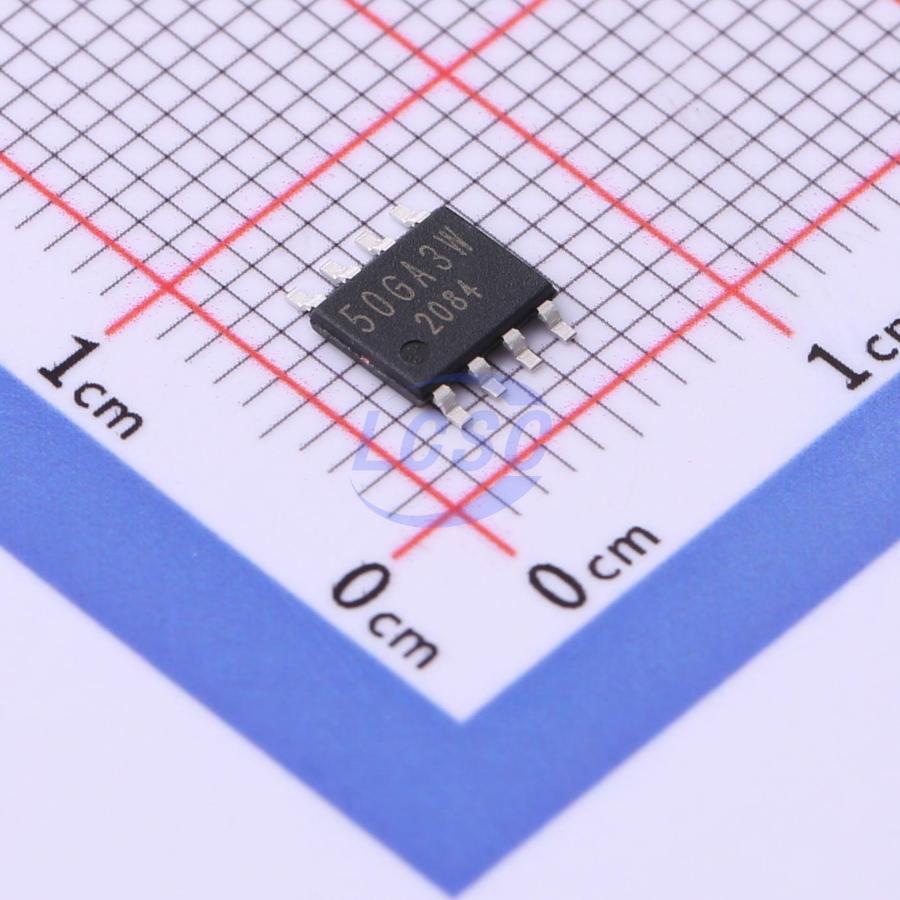

BD50GA3WEFJ-E2
5V Positive Fixed HTSOP-J8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HTSOP-J8-EPROHS3 CompliantActive
300mA Variable / Fixed Output LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BD50GA3WEFJ-E2
- Store part #
- C509752
- Package / case
- HTSOP-J8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,565 in stock
#C509752
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹58.81 | ₹294.05 |
| 50+ | ₹45.93 | ₹2,296.50 |
| 150+ | ₹40.42 | ₹6,063.00 |
| 500+ | ₹33.52 | ₹16,760.00 |
| 2,500+ | ₹28.93 | ₹72,325.00 |
| 5,000+ | ₹27.10 | ₹1,35,500.00 |
5 × ₹58.81
₹294.05
excl. GST
₹346.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD50GA3WEFJ-E2
₹294.05 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 600uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 14V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
BDxxGA3WEFJ / BDxxGA3WNUX series devices are LDO regulators with an output current of 300mA. The output accuracy is ±1% of the output voltage. Both fixed and variable output voltage devices are available. The output voltage of the variable output voltage device can be varied from 1.5V to 13V using external resistors. Various fixed output voltage devices that do not use external resistors are also available. It can be used for a wide range of digital appliance applications. It has small package types: HTSOP - J8 (4.90mm×6.00mm×1.00mm) / VSON008X2030 (2.00mm×3.00mm×0.60mm). These devices have built - in over current protection to protect the device when output is shorted, 0μA shutdown mode, and thermal shutdown circuit to protect the device during thermal over - load conditions. These LDO regulators are usable with ceramic capacitors that enable a smaller layout and longer life.
Key features
- +/-1% output voltage accuracy
- Built - in Over Current Protection (OCP)
- Built - in Thermal Shut Down circuit (TSD)
- Zero μA shutdown mode
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BD50GA5WEFJ-E2#C3749200ROHM · HTSOP-J8 | ROHM | HTSOP-J8 | 43 | ₹75.49 · 43 in stock | View | |
 | BD50GC0MEFJ-ME2#C5576492ROHM · HTSOP-J8 | ROHM | HTSOP-J8 | 1 | ₹253.66 · 1 in stock | View |
 | BD4269EFJ-CE2#C509751ROHM · ESOP-8 | ROHM | ESOP-8 | 105 | ₹208.50 · 105 in stock | View |
 | TLS203B0EJ V50#C540248Infineon · DSO-8-EP | Infineon | DSO-8-EP | 11 | ₹148.20 · 11 in stock | View |
 | BD4271EFJ-CE2#C7085804ROHM · HTSOP-8-J | ROHM | HTSOP-8-J | 1 | ₹350.63 · 1 in stock | View |
