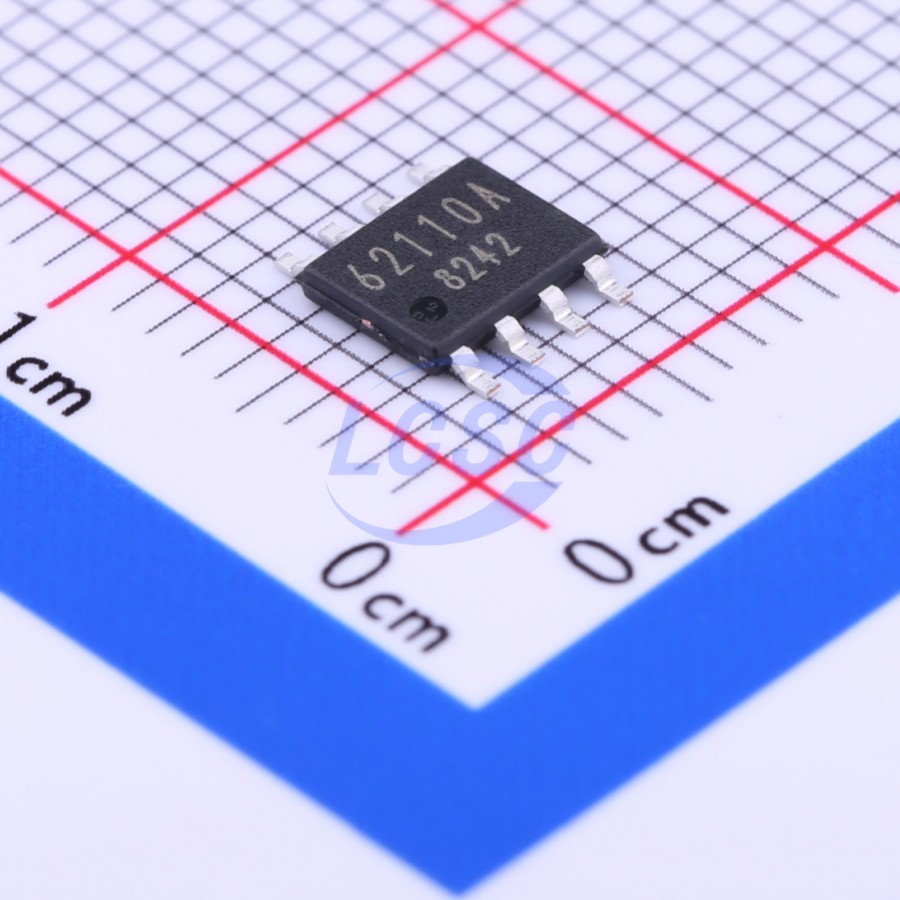

BD62110AEFJ-E2
8V~28V SOP-8-EP Motor Drivers, Controllers RoHS
SOP-8-EPROHS3 CompliantActive
36V 1ch DC Brush Motor Drivers
- Manufacturer
- ROHM
- Manufacturer part #
- BD62110AEFJ-E2
- Store part #
- C239855
- Package / case
- SOP-8-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,392 in stock
#C239855
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹127.54 | ₹127.54 |
| 10+ | ₹103.64 | ₹1,036.40 |
| 30+ | ₹91.91 | ₹2,757.30 |
| 100+ | ₹79.96 | ₹7,996.00 |
| 500+ | ₹63.23 | ₹31,615.00 |
| 1,000+ | ₹59.54 | ₹59,540.00 |
1 × ₹127.54
₹127.54
excl. GST
₹150.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD62110AEFJ-E2
₹127.54 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Voltage - Supply
- 8V~28V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 10uA
- Output Current
- 1A
- Peak Current
- 2A
- RDS(on)
- 1.8Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.182 g
Overview
BD62110AEFJ is a built-in 1 channel H-bridge motor driver for DC brush motors. This driver can facilitate low power consumption by direct PWM. There are built in protection circuits in this IC. Each protection circuit operation contributes to set high reliability.
Applications
- Plain Paper Copier (PPC)
- Multi-function Printer
- Laser Printer
- Inkjet Printer
- Photo Printer
- FAX
- Mini Printer
Key features
- Single Power Supply Input (rated voltage of 36V)
- Rated Output Current (peak): 1.0A(2.0A)
- Low ON-Resistance DMOS Output
- Forward, Reverse, Brake, Open
- External PWM Control
- Driver for DC Brush Motor
- Built-in logic input pull-down resistor
- Cross-conduction Prevention Circuit
- Thermal Shutdown Circuit (TSD)
- Over-current Protection Circuit (OCP)
- Under Voltage Lock out Circuit (UVLO)
- Over Voltage Lock out Circuit (OVLO)
- Ghost Supply Prevention (protects against malfunction when power supply is disconnected)
- Adjacent Pins Short Protection
- Inverted Mounting Protection
- HTSOP-J8 package
