ROHMDatasheet (PDF)

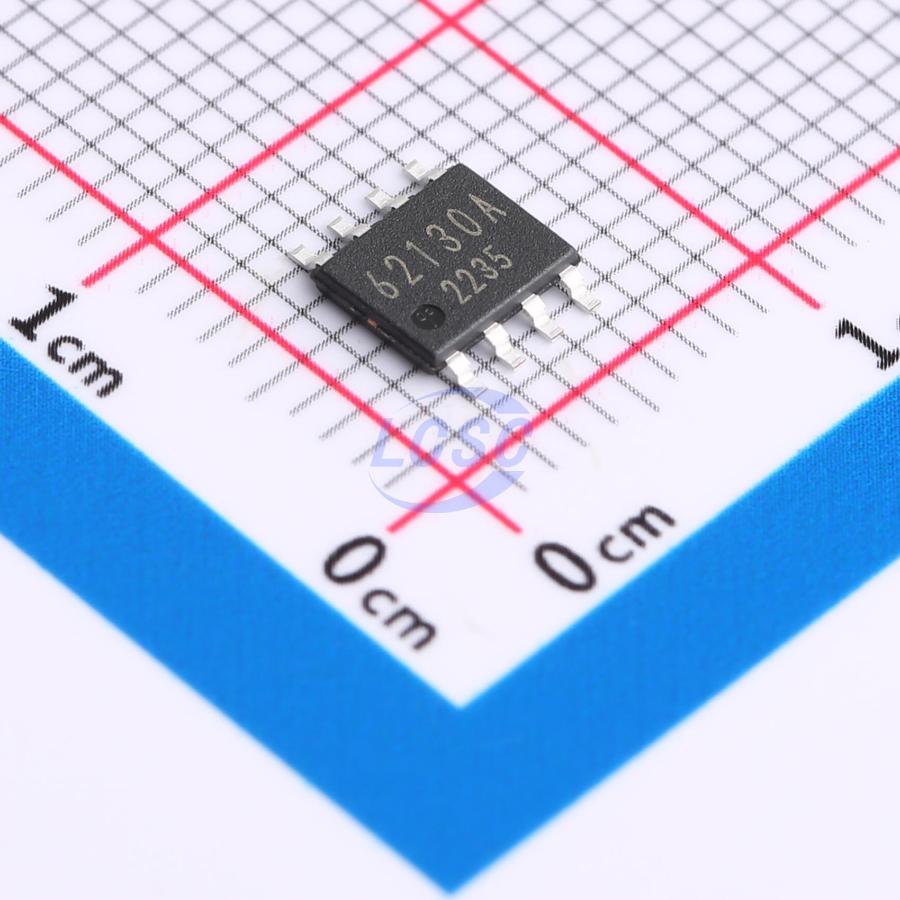

BD62130AEFJ-E2
8V~28V SOP-8-EP Motor Drivers, Controllers RoHS
SOP-8-EPROHS3 CompliantActive
36 V 1ch DC Brush Motor Driver
- Manufacturer
- ROHM
- Manufacturer part #
- BD62130AEFJ-E2
- Store part #
- C2150562
- Package / case
- SOP-8-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,455 in stock
#C2150562
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹161.32 | ₹161.32 |
| 10+ | ₹132.05 | ₹1,320.50 |
| 30+ | ₹115.97 | ₹3,479.10 |
| 100+ | ₹97.91 | ₹9,791.00 |
| 500+ | ₹89.78 | ₹44,890.00 |
| 1,000+ | ₹86.17 | ₹86,170.00 |
1 × ₹161.32
₹161.32
excl. GST
₹190.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD62130AEFJ-E2
₹161.32 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Voltage - Supply
- 8V~28V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 10uA
- Output Current
- 2.4A
- Peak Current
- 4A
- RDS(on)
- 350mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.085 g
Overview
BD62130AEFJ is a built-in 1 channel H bridge motor driver for DC brush motors. This driver can drive high efficiency by direct PWM. There are built in protection circuits in this IC. Each protection circuit operation contributes to set high reliability.
Applications
- Plain Paper Copier (PPC)
- Multi-function Printer
- Laser Printer
- Inkjet Printer
- Photo Printer
- FAX
- Mini Printer
Key features
- Single Power Supply Input (Rated voltage of 36 V)
- Rated Output Current (peak): 3.0 A (4.0 A)
- Low ON-Resistance DMOS Output
- Forward, Reverse, Brake, Stop
- Direct PWM Control
- Drive DC Brush Motor
- Built-in Logic Input Pull-down Resistor
- Cross-conduction Prevention Circuit
- Thermal Shutdown Circuit (TSD)
- Over-current Protection Circuit (OCP)
- Under Voltage Lock Out Circuit (UVLO)
- Over Voltage Lock Out Circuit (OVLO) Protects against malfunction when power supply is disconnected (Ghost Supply Prevention function) Adjacent Pins Short Protection
- Inverted Mounting Protection Micro Miniature, Ultra-thin and High Heat-radiation (exposed metal type) Package
