ROHMDatasheet (PDF)

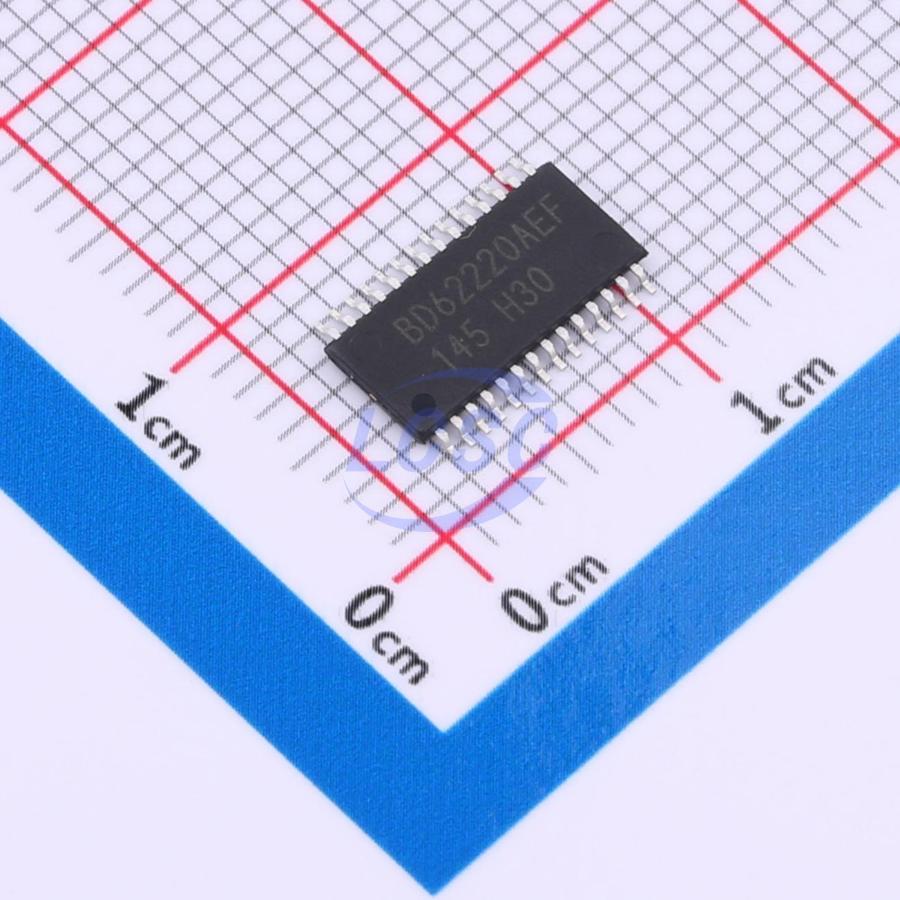

BD62220AEFV-E2
8V~28V HTSSOP-28-EP Motor Drivers, Controllers RoHS
HTSSOP-28-EPROHS3 CompliantActive
36V 2ch DC Brush Motor Drivers
- Manufacturer
- ROHM
- Manufacturer part #
- BD62220AEFV-E2
- Store part #
- C509753
- Package / case
- HTSSOP-28-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,513 in stock
#C509753
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹181.86 | ₹181.86 |
| 10+ | ₹149.47 | ₹1,494.70 |
| 30+ | ₹131.76 | ₹3,952.80 |
| 100+ | ₹111.67 | ₹11,167.00 |
| 500+ | ₹102.81 | ₹51,405.00 |
| 1,000+ | ₹98.71 | ₹98,710.00 |
1 × ₹181.86
₹181.86
excl. GST
₹214.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD62220AEFV-E2
₹181.86 for 1 + GST
Specifications
- Number of H-bridges
- 2
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Voltage - Supply
- 8V~28V
- Operating Temperature
- -25℃~+85℃
- Output Current
- 1.4A
- Peak Current
- 2.8A
- RDS(on)
- 650mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.527 g
Overview
BD62220AEFV is a built- in 2 channel H- bridge motor driver for 2 DC brush motors or 4 stepper motor. This driver can facilitate low power consumption by direct PWM or PWM constant current control. There are built in protection circuits in this IC. It is possible to output an abnormal detection signal for Wired- OR that notifies each protection circuit operation, which contributes to set high reliability.
Applications
- Plain Paper Copier (PPC), Multi- function Printer, Laser Printer, Inkjet Printer, Photo Printer, FAX, Mini Printer and etc.
Key features
- Single Power Supply Input (rated voltage of 36V)
- Rated Output Current (peak): 2.0A(2.8A)
- Low ON- Resistance DMOS Output
- Forward, Reverse, Brake, Open- Power Save Function
- External PWM Control
- PWM Constant Current Control (current limit function)
- Built- in Spike Noise Cancel Function (external noise filter is unnecessary)
- Driver for 2 DC Brush Motor
- Driver for 1 Stepper motor
- FULL STEP, HALF STEP (driving stepper motor)
- μSTEP Drive by External DAC (driving stepper motor)
- Built- in logic input pull- down resistor
- Cross- conduction Prevention Circuit
- Output detection signal during abnormal states (Wired- OR)
- Thermal Shutdown Circuit (TSD)
- Over- current Protection Circuit (OCP)
- Under Voltage Lock out Circuit (UVLO)
- Over Voltage Lock out Circuit (OVLO)
- Ghost Supply Prevention (protects against malfunction when power supply is disconnected)
- Adjacent Pins Short Protection
- Inverted Mounting Protection
- Microminiature, ultra- thin and high heat- radiation (exposed metal type) HTSSOP- B28 package
