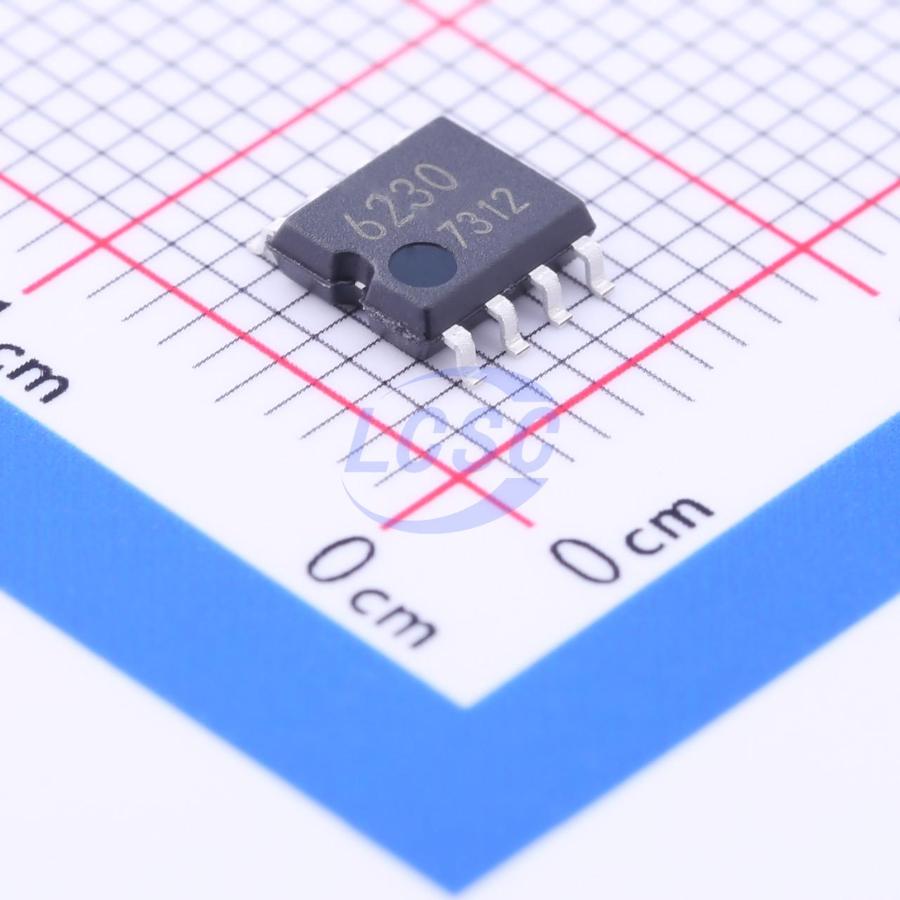

BD6230F-E2
6V~32V SOP-8 Motor Drivers, Controllers RoHS
SOP-8ROHS3 CompliantActive
DC Brush Motor Drivers
- Manufacturer
- ROHM
- Manufacturer part #
- BD6230F-E2
- Store part #
- C84323
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,137 in stock
#C84323
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹258.78 | ₹258.78 |
| 10+ | ₹216.97 | ₹2,169.70 |
| 30+ | ₹190.91 | ₹5,727.30 |
| 100+ | ₹164.18 | ₹16,418.00 |
| 500+ | ₹152.12 | ₹76,060.00 |
| 1,000+ | ₹146.96 | ₹1,46,960.00 |
1 × ₹258.78
₹258.78
excl. GST
₹305.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD6230F-E2
₹258.78 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function
- Technology
- Yes
- Voltage - Supply
- 6V~32V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 0uA
- Output Current
- 500mA
- RDS(on)
- 1.5Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
These H-bridge drivers are full bridge drivers for brush motor applications. Each IC can operate at a wide range of power supply voltages (from 6V to 32V), with output currents of up to 2A. MOS transistors in the output stage allow PWM speed control. The integrated VREF voltage control function allows direct replacement of discontinued motor driver ICs. These highly efficient H-bridge driver ICs facilitate low-power consumption design.
Applications
- VTR
- CD/DVD players
- audio-visual equipment
- optical disc drives
- PC peripherals
- OA equipments
Key features
- Built-in, selectable one channel or two channels configuration VREF voltage setting pin enables PWM duty control
- Cross-conduction prevention circuit Four protection circuits provided: OCP, OVP, TSD and UVLO
Same category
