ROHMDatasheet (PDF)

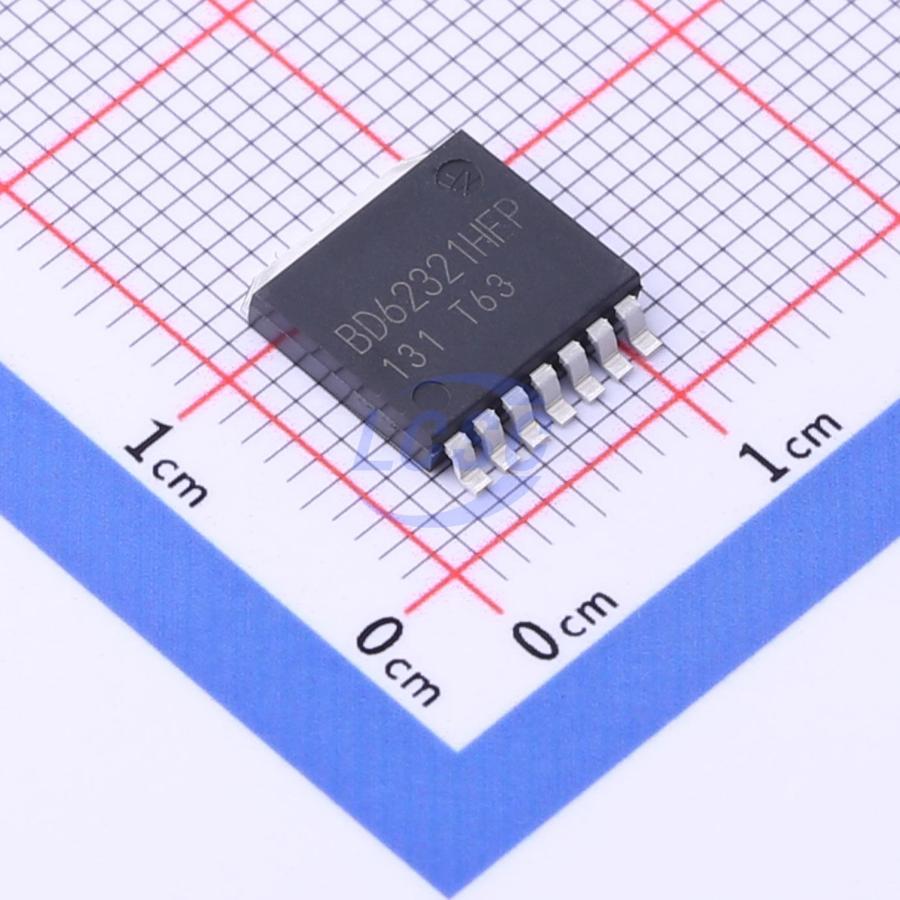

BD62321HFP-TR
6V~32V TO-263-8 Motor Drivers, Controllers RoHS
TO-263-8ROHS3 CompliantActive
DC Brush Motor Drivers
- Manufacturer
- ROHM
- Manufacturer part #
- BD62321HFP-TR
- Store part #
- C509720
- Package / case
- TO-263-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,796 in stock
#C509720
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹323.00 | ₹323.00 |
| 10+ | ₹272.02 | ₹2,720.20 |
| 30+ | ₹240.12 | ₹7,203.60 |
| 100+ | ₹207.38 | ₹20,738.00 |
| 500+ | ₹192.63 | ₹96,315.00 |
| 1,000+ | ₹186.12 | ₹1,86,120.00 |
1 × ₹323.00
₹323.00
excl. GST
₹381.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BD62321HFP-TR
₹323.00 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function
- Technology
- Yes
- Voltage - Supply
- 6V~32V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 0uA
- Output Current
- 3A
- RDS(on)
- 1Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.58 g
Overview
BD62321HFP is a full bridge driver for brush motor applications. This IC can operate at a wide range of power- supply voltages (from 6V to 32V) with output currents of up to 3A. MOS transistors in the output stage allow PWM speed control. The BD62321HFP is pin compatible with the BD623xHFP series.
Applications
- VTR
- CD/DVD players
- audio- visual equipment
- optical disc drives
- PC peripherals
- OA equipments
Key features
- Built- in One Channel Driver
- Cross- Conduction Prevention Circuit
- Four Protection Circuits Provided: OCP, OVP, TSD, UVLO and SAP
