ROHMDatasheet (PDF)

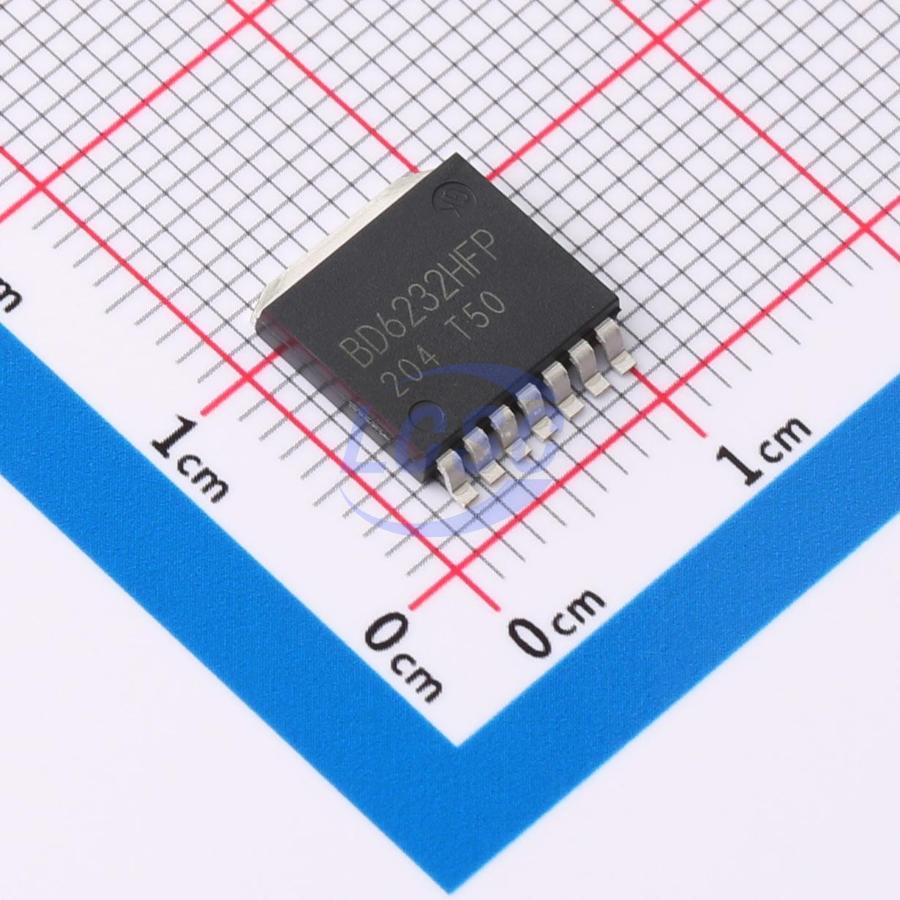

BD6232HFP-TR
Full bridge 6V~32V TO-263-8 Motor Drivers, Controllers RoHS
TO-263-8ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- BD6232HFP-TR
- Store part #
- C2981752
- Package / case
- TO-263-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
493 in stock
#C2981752
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹363.45 | ₹363.45 |
| 10+ | ₹304.86 | ₹3,048.60 |
| 30+ | ₹268.33 | ₹8,049.90 |
| 100+ | ₹230.70 | ₹23,070.00 |
| 500+ | ₹213.62 | ₹1,06,810.00 |
| 1,000+ | ₹206.27 | ₹2,06,270.00 |
1 × ₹363.45
₹363.45
excl. GST
₹428.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BD6232HFP-TR
₹363.45 for 1 + GST
Specifications
- Driven Configuration
- Full bridge
- Features
- Interleaved conduction protection;Enable shutdown
- Voltage - Supply
- 6V~32V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 0uA
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.84 g
Overview
These H-bridge drivers are full-bridge drivers for brushed motor applications. Each IC operates over a wide supply voltage range (6V to 32V) with output current up to 2A. The output stage MOSFETs support PWM speed control. An integrated VREF voltage control feature allows direct replacement of discontinued motor driver ICs. These highly efficient H-bridge driver ICs contribute to low-power designs.
Applications
- VCR
- CD/DVD player
- Audio/video equipment
- Optical disc drive
- Computer peripherals
Key features
- Built-in single-channel or dual-channel selectable configuration
- VREF voltage setting pin supports PWM duty cycle control
- Cross-conduction prevention circuit
- Four protection circuits: OCP, OVP, TSD, and UVLO
