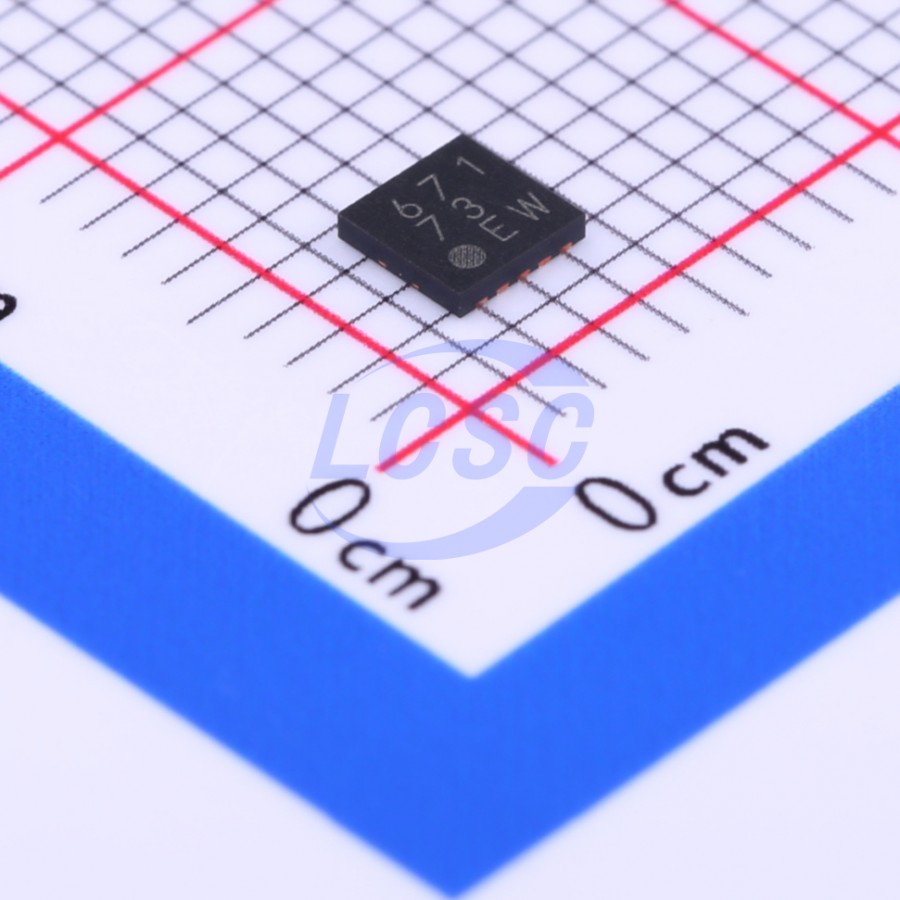

BD67173NUX-E2
2.2V~5.5V VSON-10-EP(3x3) Motor Drivers, Controllers RoHS
DC Brushless Fan Motor Drivers Three-Phase Full-Wave Fan Motor Driver
- Manufacturer
- ROHM
- Manufacturer part #
- BD67173NUX-E2
- Store part #
- C239847
- Package / case
- VSON-10-EP(3x3)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,696 in stock
#C239847
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.18 | ₹76.18 |
| 10+ | ₹60.73 | ₹607.30 |
| 30+ | ₹52.89 | ₹1,586.70 |
| 100+ | ₹45.27 | ₹4,527.00 |
| 500+ | ₹40.48 | ₹20,240.00 |
| 1,000+ | ₹38.31 | ₹38,310.00 |
1 × ₹76.18
₹76.18
excl. GST
₹89.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BD67173NUX-E2
₹76.18 for 1 + GST
Specifications
- Drive Type
- Three Phase
- Features
- Interleaved conduction protection;Motor stall protection;Motor speed indication;Soft switching
- Voltage - Supply
- 2.2V~5.5V
- Operating Temperature
- -25℃~+95℃
- Supply Current (Iq)
- 15uA
- Output Current
- 700mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
BD67173NUX is a three-phase sensorless fan motor driver used to cool off notebook PCs. It is controlled by a variable speed provided through the PWM input signal. Its feature is sensorless drive which doesn’t require a hall device as a location detection sensor and motor downsizing can be achieved by limiting the number of external components as much as possible. Furthermore, introducing a direct PWM soft switched driving mechanism achieves silent operations and low vibrations.
Applications
- Small fan motor for notebook PCs etc.
Key features
- Speed controllable by PWM input signal
- Sensorless drive
- Soft switched drive
- Quick start
- Power save function
- Internal RNF resistance
- Quick start function
