ROHMDatasheet (PDF)

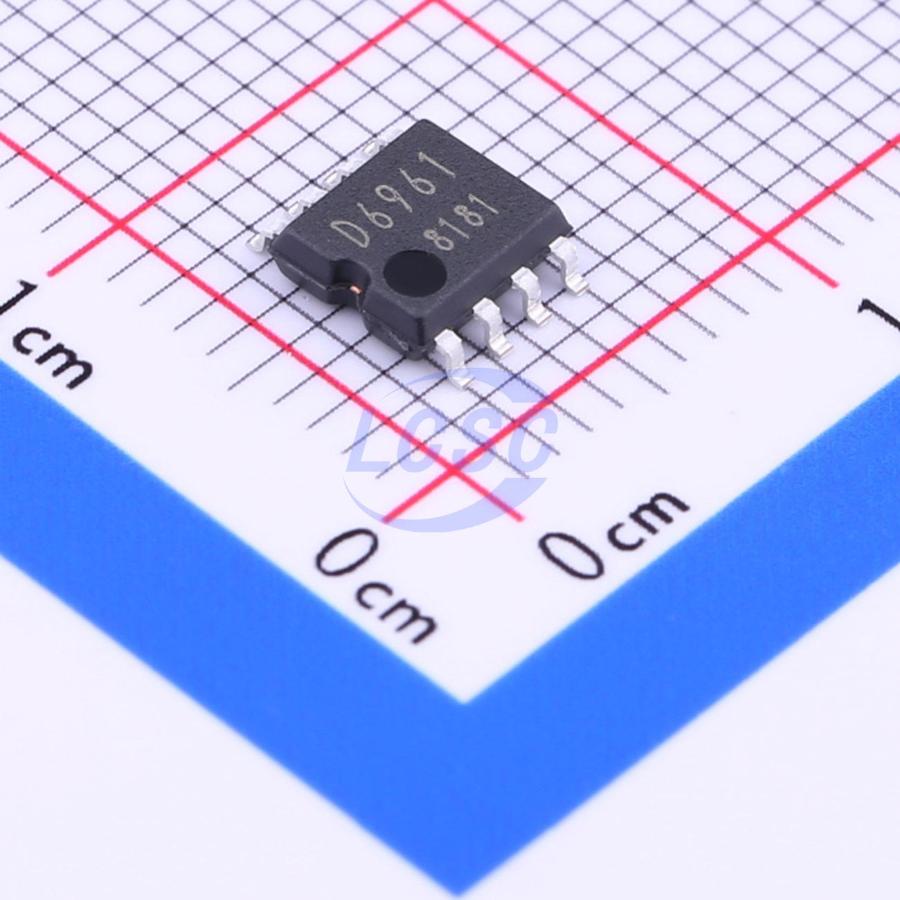

BD6961F-E2
3.3V~14V SOP-8 Motor Drivers, Controllers RoHS
SOP-8ROHS3 CompliantActive
DC Brushless Fan Motor Driver
- Manufacturer
- ROHM
- Manufacturer part #
- BD6961F-E2
- Store part #
- C239869
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C239869
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.11 | ₹78.11 |
| 10+ | ₹62.27 | ₹622.70 |
| 30+ | ₹54.24 | ₹1,627.20 |
| 100+ | ₹46.44 | ₹4,644.00 |
| 500+ | ₹41.66 | ₹20,830.00 |
| 1,000+ | ₹39.28 | ₹39,280.00 |
1 × ₹78.11
₹78.11
excl. GST
₹92.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD6961F-E2
₹78.11 for 1 + GST
Specifications
- Drive Type
- Single Phase
- Features
- Interleaved conduction protection;Motor stall protection;Motor speed indication;Soft switching
- Technology
- Yes
- Voltage - Supply
- 3.3V~14V
- Interface
- PWM
- Operating Temperature
- -40℃~+105℃
- Output Current
- 1mA
- Number of Half Bridges
- 2
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
BD6961F can drive FAN motor silently by BTL soft switching, and it can control rotational speed by PWM signal.
Applications
- PC
- PC peripheral component (Power supply, VGA card, case FAN etc.)
- BD player
- Projector etc.
Key features
- BTL soft switching drive
- PWM speed control
- Quick start function
- Lock protection and auto restart (without external capacitor)
- Rotating speed pulse signal (FG) output
