ROHMDatasheet (PDF)

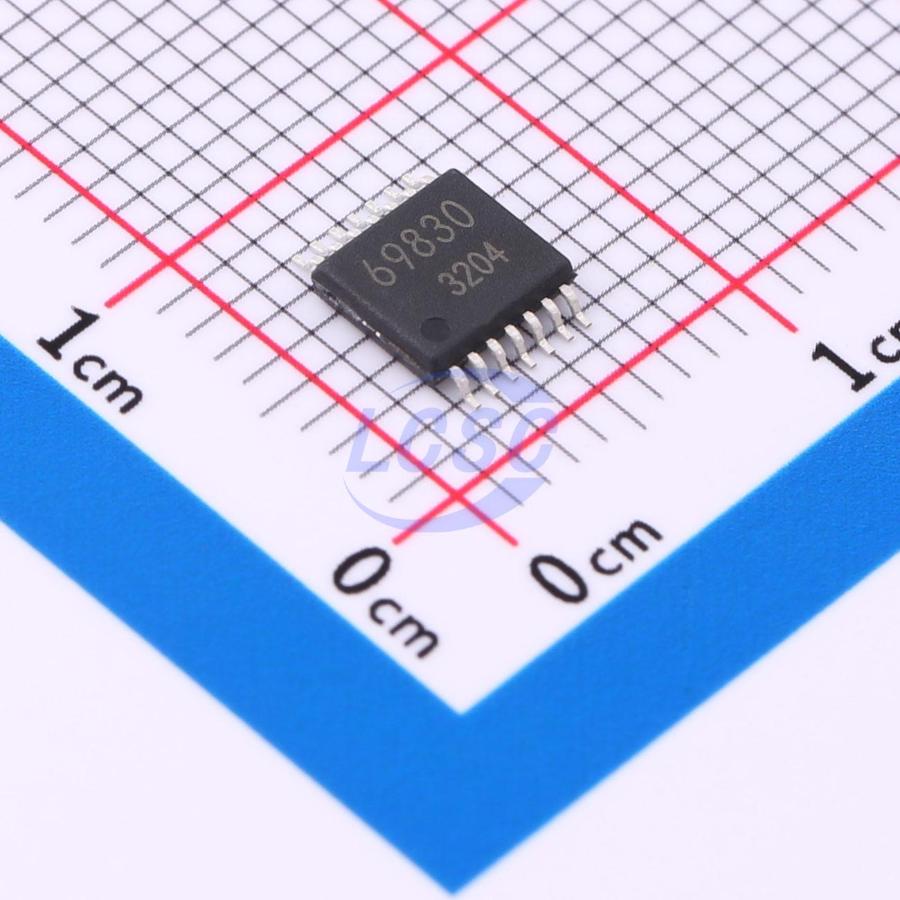

BD69830FV-GE2
Full bridge 6V~28V MOSFET SSOP-B14 Motor Drivers, Controllers RoHS
SSOP-B14ROHS3 CompliantActive
DC Brushless Motor Drivers for Fans
- Manufacturer
- ROHM
- Manufacturer part #
- BD69830FV-GE2
- Store part #
- C600649
- Package / case
- SSOP-B14
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,383 in stock
#C600649
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹45.54 | ₹45.54 |
| 10+ | ₹39.47 | ₹394.70 |
| 30+ | ₹36.86 | ₹1,105.80 |
| 100+ | ₹33.39 | ₹3,339.00 |
| 500+ | ₹32.10 | ₹16,050.00 |
| 1,000+ | ₹31.22 | ₹31,220.00 |
1 × ₹45.54
₹45.54
excl. GST
₹53.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD69830FV-GE2
₹45.54 for 1 + GST
Specifications
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Built-in bootstrap diode;Charge pump boost
- Driven Configuration
- Full bridge
- Number of Channels
- 2
- Voltage - Supply
- 6V~28V
- Operating Temperature
- -40℃~+105℃
- Load Type
- MOSFET
- Input Logic Level - High
- 2.5V~5.5V
- Supply Current (Iq)
- 1.2mA
- Input Logic Level - Low
- -300mV~800mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.194 g
Overview
The BD69830FV is a 24V single- coil brushless DC FAN motor driver. The device incorporates high efficiency DMOS H- bridge driver, regulated voltage output for hall element, and rotation speed is controlled by input PWM signal.
Applications
- BD player, Projector, STB etc.
- Office equipment, Copier, FAX, Laser Printer, etc.
Key features
- Power DMOS FET integrated
- Direct PWM speed control
- Low duty start up function
- Quick start function
- Constant voltage output for hall element
- Lock protection and auto restart (without external capacitor)
- Rotating speed pulse signal (FG) output and ALARM signal output selectable
