ROHMDatasheet (PDF)

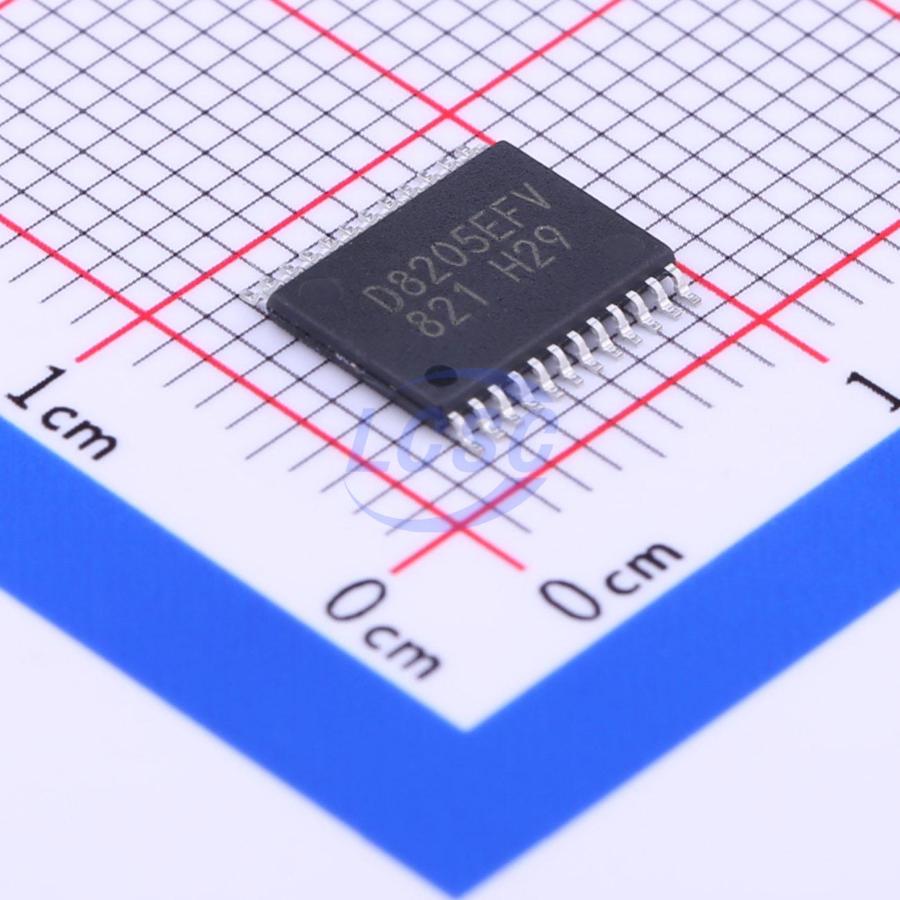

BD8205EFV-ME2
VSSOP-24-EP-5.6mm Motor Drivers, Controllers RoHS
VSSOP-24-EP-5.6mmROHS3 CompliantActive
5ch System Motor Driver for Car AV
- Manufacturer
- ROHM
- Manufacturer part #
- BD8205EFV-ME2
- Store part #
- C239858
- Package / case
- VSSOP-24-EP-5.6mm
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C239858
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.57 | ₹133.57 |
| 10+ | ₹106.25 | ₹1,062.50 |
| 30+ | ₹92.81 | ₹2,784.30 |
| 100+ | ₹79.14 | ₹7,914.00 |
| 500+ | ₹71.12 | ₹35,560.00 |
| 1,000+ | ₹67.00 | ₹67,000.00 |
1 × ₹133.57
₹133.57
excl. GST
₹157.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BD8205EFV-ME2
₹133.57 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 13mA
- RDS(on)
- 2.5Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.303 g
Overview
BD8205EFV-M is a 5-Channel system motor driver developed for DC motors (Spindle motor, Sled motor, Loading motor) and coils (Tracking, Focus) drive for actuator. This IC can drive the motor and the coil of a CD/DVD drive.
Applications
- Car Audio
Key features
- 5CH BTL Driver
- POWVCC1 for CHs 1, 2, and 3 (DC motors) and POWVCC2 for CHs 4 and 5 (actuator) are independent for efficient drive configuration.
- Built-in protection functions (TSD, UVLO, BIAS Drop Mute)
- AEC-Q100 Qualified
