ROHMDatasheet (PDF)

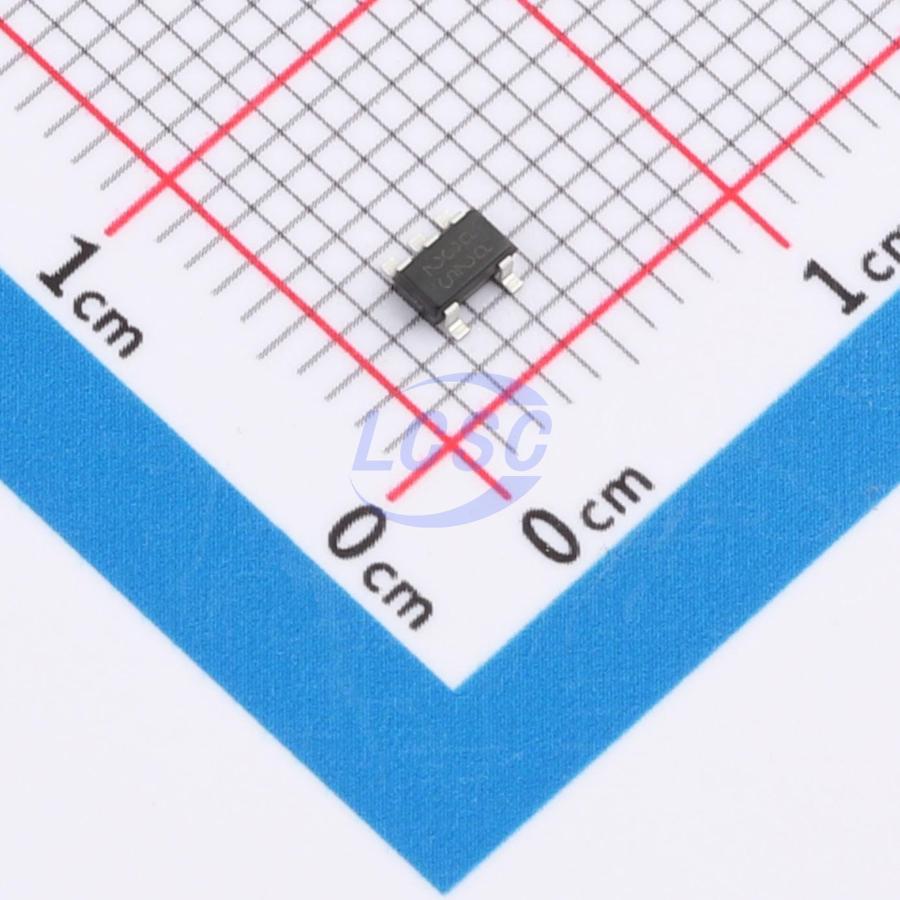

BD950N1G-CTR
5V Positive Fixed SSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SSOP-5ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- BD950N1G-CTR
- Store part #
- C5576665
- Package / case
- SSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,131 in stock
#C5576665
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.24 | ₹111.24 |
| 10+ | ₹88.47 | ₹884.70 |
| 30+ | ₹77.20 | ₹2,316.00 |
| 100+ | ₹66.14 | ₹6,614.00 |
| 500+ | ₹59.42 | ₹29,710.00 |
| 1,000+ | ₹55.95 | ₹55,950.00 |
1 × ₹111.24
₹111.24
excl. GST
₹131.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD950N1G-CTR
₹111.24 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 28uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 42V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Input under-voltage protection;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
The BD9xxN1-C series are linear regulators featuring Nano Cap topology, designed for various automotive application power supplies requiring direct battery connection. This series supports a maximum input voltage of 45V, output current capability of 150mA, and typical quiescent current of 28μA. Output voltage accuracy is ±2.0%. The series is compatible with output capacitors of 100nF or larger, achieving excellent transient performance even with small capacitors. Output voltage options include fixed 3.3V and 5.0V versions, as well as an adjustable version configurable via an external resistor divider with a range of 1.0V to 18V. The device integrates an enable function. It also incorporates overcurrent protection, thermal shutdown, and undervoltage lockout. Low-ESR ceramic capacitors are fully suitable for phase compensation.
Applications
- Automotive powertrain
- Automotive body ECU
- In-vehicle infotainment systems
Key features
- Nano Cap topology
- QuiCur™ topology for high-speed load transient response
- AEC-Q100 compliant
- Automotive grade
- Integrated overcurrent protection
- Integrated thermal shutdown protection
- Integrated undervoltage lockout
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BD950N1WG-CTR#C21744823ROHM · SSOP-5 | ROHM | SSOP-5 | 42 | ₹106.01 · 42 in stock | View |
