ROHMDatasheet (PDF)

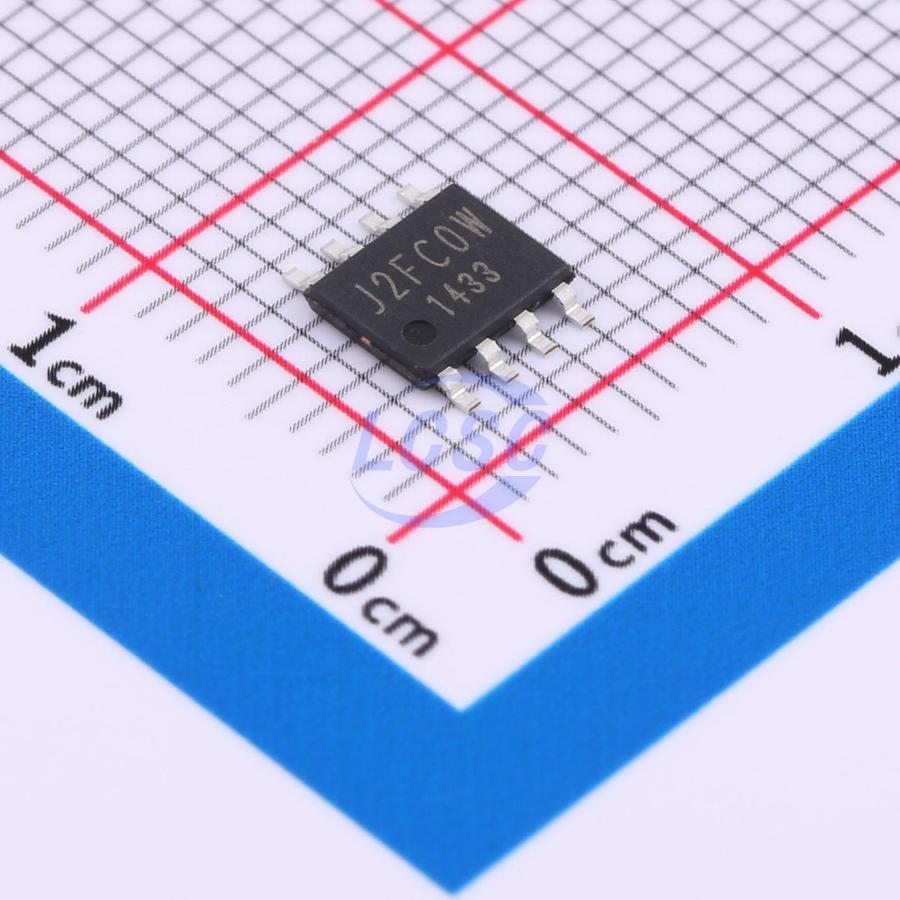

BDJ2FC0WEFJ-E2
12V Positive Fixed HTSOP-8-J Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HTSOP-8-JROHS3 CompliantActive
Single-Output LDO Regulators 35V Withstand Voltage 1A LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BDJ2FC0WEFJ-E2
- Store part #
- C509762
- Package / case
- HTSOP-8-J
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,526 in stock
#C509762
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹35.85 | ₹35.85 |
| 10+ | ₹34.98 | ₹349.80 |
| 30+ | ₹34.33 | ₹1,029.90 |
| 100+ | ₹33.67 | ₹3,367.00 |
1 × ₹35.85
₹35.85
excl. GST
₹42.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BDJ2FC0WEFJ-E2
₹35.85 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 500uA
- Output Configuration
- Positive
- Operating Voltage
- 26.5V
- Output Current
- 1A
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
The BDxxFC0 series are low- saturation regulators. The series' output voltages are Variable, 3.0V, 3.3V, 5.0V, 6.0V, 7.0V, 8.0V, 9.0V, 10.0V, 12.0V and 15.0V and packages are HTSOP- J8, TO252- 3, and TO252- 5. This series has a built- in over- current protection circuit that prevents the destruction of the IC due to output short circuits and a thermal shutdown circuit that protects the IC from thermal damage due to overloading.
Key features
- Output Voltage: 1.0V to 15.0V
- Output Voltage Precision (Ta = 25°C) ±1%
- Supply Voltage (Vo≥ 3.0V): Vo + 1.0V to 26.5V
- Supply Voltage (Vo< 3.0V): 4.0V to 26.5V
- Output Current: 1A
- Operating Temperature Range: -25°C ≤ Ta ≤ +85°C
