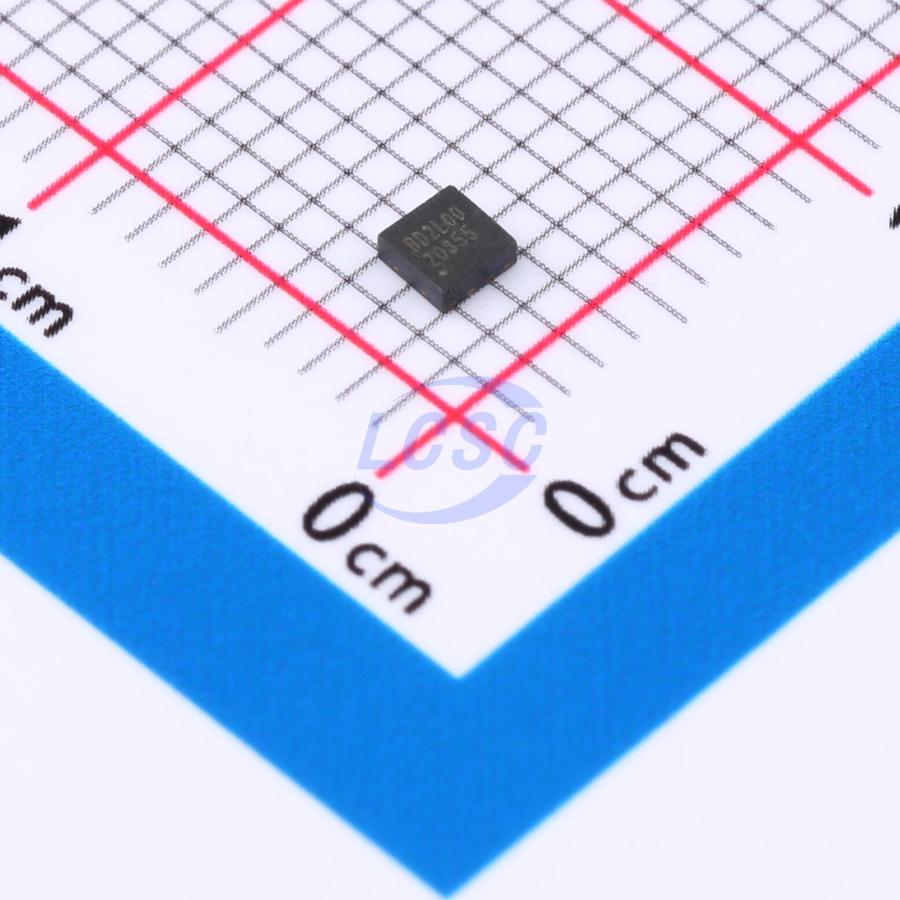

Bardeen Micro.Datasheet (PDF)
BDR2L00
3.3V~5.5V 2A 2.2A DFN-8 Gate Drivers RoHS
DFN-8ROHS CompliantActive
Half-Bridge Driver
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDR2L00
- Store part #
- C5371998
- Package / case
- DFN-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,470 in stock
#C5371998
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.88 | ₹99.40 |
| 50+ | ₹15.51 | ₹775.50 |
| 150+ | ₹13.64 | ₹2,046.00 |
| 500+ | ₹11.30 | ₹5,650.00 |
| 2,500+ | ₹10.25 | ₹25,625.00 |
| 4,000+ | ₹9.63 | ₹38,520.00 |
5 × ₹19.88
₹99.40
excl. GST
₹117.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BDR2L00
₹99.40 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 110uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 3.3V~5.5V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -30℃~+85℃
- Current - Output Low(IOL)
- 2A
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 2.2A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.015 g
Overview
The BDR2L00 is a single Phase MOSFET gate driver optimized to drive the gates of both high-side and low-side power MOSFETs.
Applications
- Wireless Charger for 5W to 20W Systems
- Half or full bridge driver for N+N MOSFET
Key features
- Drive two N-MOSFETs
- High-Frequency operation (Up to 1MHz)
- PWM input capable of 3.3V and 5V
- Fast output rise time
- Internal bootstrap diode Adaptive shoot through protection
- Under-voltage lockout
- Internal thermal shutdown
- Small size package：SOP-8, DFN8(2x2, 3x3)
- These are Pb-Free Devices
