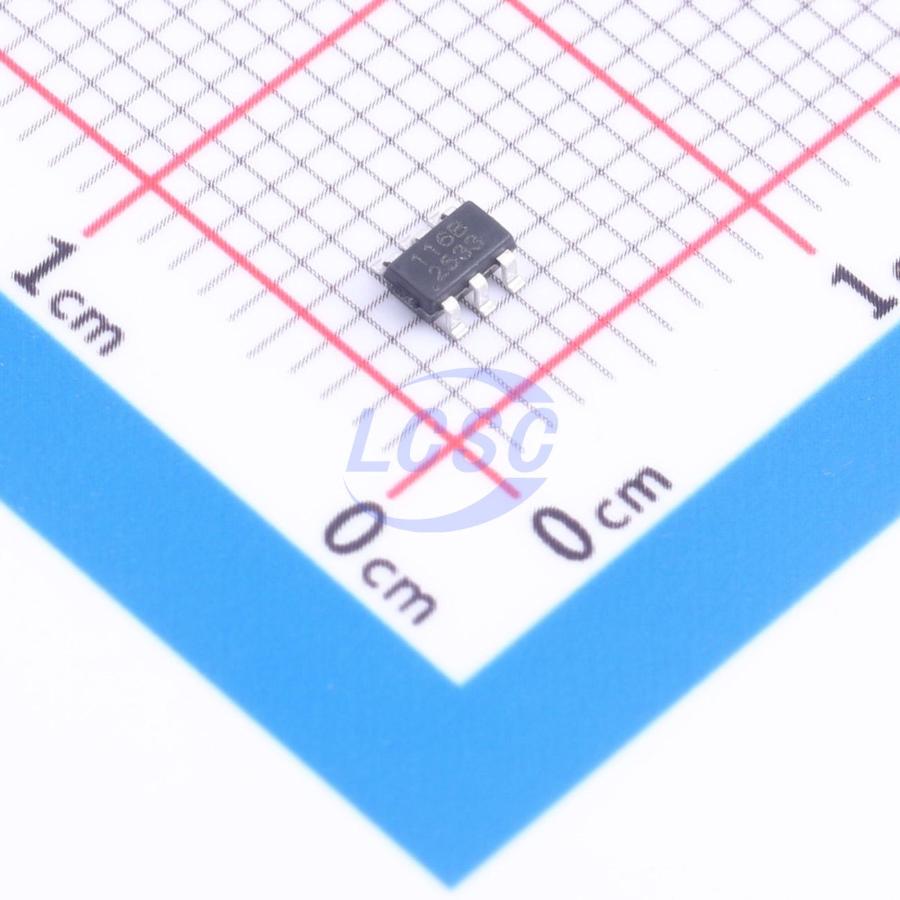

BDR6116B
2V~6.5V SOT-23-6L Motor Drivers, Controllers
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDR6116B
- Store part #
- C52200573
- Package / case
- SOT-23-6L
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,440 in stock
#C52200573
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.58 | ₹55.80 |
| 100+ | ₹4.45 | ₹445.00 |
| 300+ | ₹3.88 | ₹1,164.00 |
| 3,000+ | ₹3.44 | ₹10,320.00 |
| 6,000+ | ₹3.10 | ₹18,600.00 |
| 9,000+ | ₹2.92 | ₹26,280.00 |
10 × ₹5.58
₹55.80
excl. GST
₹65.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BDR6116B
₹55.80 for 10 + GST
Specifications
- Features
- Interleaved conduction protection
- Technology
- Yes
- Voltage - Supply
- 2V~6.5V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 100nA
- Output Current
- 800mA
- Peak Current
- 2A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
BDR6116B is a dedicated driver IC for small brushed DC motor control, offering four operating modes: forward, reverse, brake, and standby. It operates over a supply voltage range of 2V to 6.5V, and at VDD = 6V under room temperature conditions, it can deliver a continuous output current of up to 1.2A and a peak current of up to 2A. The IC integrates an over-temperature protection circuit: when the junction temperature exceeds 150°C (typical), the internal circuitry shuts down the power transistors to stop output current; once the junction temperature drops back to a safe level of 120°C, the IC resumes normal operation, effectively preventing damage caused by overheating.
Applications
- Electric toothbrush, small fan
- Dry battery toy motor drive
- Lithium battery-powered motor drive
- RC toy aircraft tail rotor drive
- Servo motor drive
Key features
- Standby current as low as 0.1uA
- Low operating current: 10uA
- Operating voltage range: 2V~6.5V
- Maximum continuous current: 1.2A
- Maximum peak current: 2A
- Integrated freewheeling diode
- Integrated thermal protection
- Package: SOT23-6L
