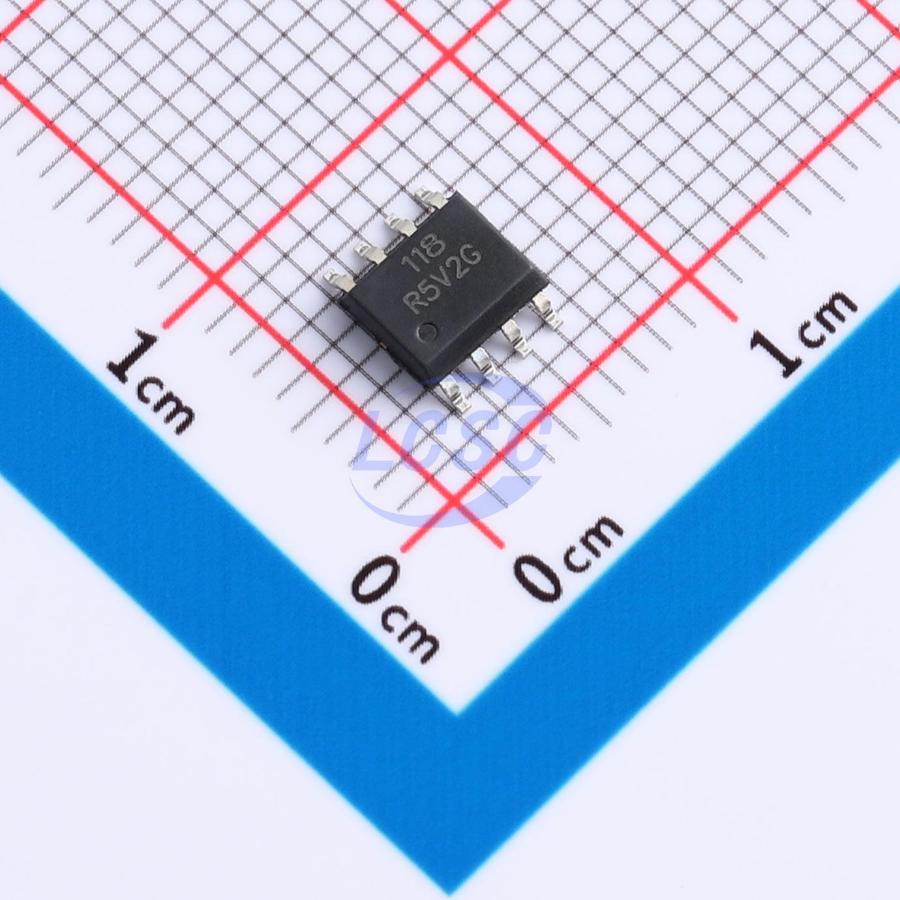

BDR6118
2V~7V SOP-8 Motor Drivers, Controllers
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDR6118
- Store part #
- C53055896
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,820 in stock
#C53055896
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.85 | ₹68.50 |
| 100+ | ₹5.45 | ₹545.00 |
| 300+ | ₹4.75 | ₹1,425.00 |
| 1,000+ | ₹4.22 | ₹4,220.00 |
| 4,000+ | ₹3.80 | ₹15,200.00 |
| 8,000+ | ₹3.60 | ₹28,800.00 |
10 × ₹6.85
₹68.50
excl. GST
₹80.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BDR6118
₹68.50 for 10 + GST
Specifications
- Features
- Interleaved conduction protection;Active braking function
- Technology
- Yes
- Voltage - Supply
- 2V~7V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 100nA
- Output Current
- 1.5A
- Peak Current
- 2.5A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.16 g
Overview
BDR6118 is a driver IC for DC motor control. The chip adopts an H-bridge circuit topology with built-in P/N MOSFET power switches, supporting four control modes: forward rotation, reverse rotation, braking, and standby. The BDR6118 features a wide operating voltage range of 2V ~ 7V. At an ambient temperature of 25℃ and VDD = 6V, the chip can deliver a continuous current of up to 1.8A and a peak current of up to 2.5A to the motor load. The BDR6118 integrates an over-temperature protection circuit: when the junction temperature exceeds 150℃ (typical), the internal circuitry shuts down the power switches and stops output current; once the junction temperature drops back to the safe level of 130℃, the chip resumes normal operation. This over-temperature protection feature prevents the chip from being damaged by overheating.
Applications
- Motor driver for 2–4 cell dry battery supply
- Motor driver for single-cell lithium battery supply
- RC toy aircraft tail motor driver
- RC toy aircraft servo motor driver
Key features
- Low standby current: 0.1uA
- Operating voltage range: 2V ~ 7V
- Maximum continuous current: 1.8A
- Maximum peak current: 2.5A
- Integrated freewheeling diode
- Integrated over-temperature protection
- Package: SOP8
