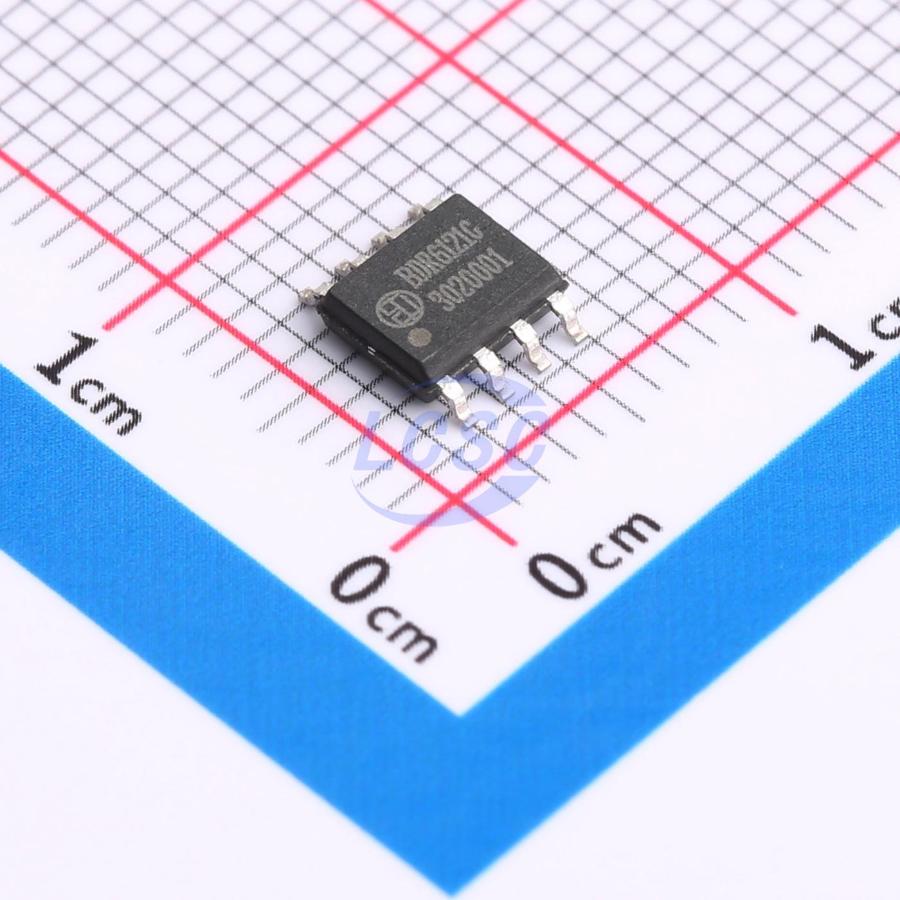

BDR6121G
1.8V~8.5V SOP8 Motor Drivers, Controllers RoHS
DC motor driver chip
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDR6121G
- Store part #
- C5440775
- Package / case
- SOP8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,090 in stock
#C5440775
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.89 | ₹54.45 |
| 50+ | ₹8.59 | ₹429.50 |
| 150+ | ₹7.45 | ₹1,117.50 |
| 500+ | ₹6.59 | ₹3,295.00 |
| 2,500+ | ₹5.89 | ₹14,725.00 |
| 4,000+ | ₹5.54 | ₹22,160.00 |
5 × ₹10.89
₹54.45
excl. GST
₹64.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BDR6121G
₹54.45 for 5 + GST
Specifications
- Features
- Interleaved conduction protection;Motor stall protection;Active braking function
- Technology
- Yes
- Voltage - Supply
- 1.8V~8.5V
- Supply Current (Iq)
- 100nA
- Output Current
- 1.55A
- Peak Current
- 3A
- RDS(on)
- 550mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.097 g
Overview
BDR6121G integrates an internal (P+NMOS) H-bridge driver circuit, suitable for driving inductive loads such as coils and motors. BDR6121G output DC peak current up to 3A, continuous current 1.55A; VDD operating range 1.8 - 8.5V. BDR6121H features one set of PWM (INA - INB) inputs, low output on-resistance, in SOP8 package. Integrated thermal shutdown protection: when the internal temperature exceeds the set threshold (typical 150°C), load current is cut off; when the junction temperature drops to the preset temperature (typical 80°C), the circuit returns to normal operation.
Applications
- Toy motor drive powered by 2–4 AA/AAA dry batteries
- Toy motor drive powered by 2–5 NiMH/NiCd rechargeable batteries
- Motor drive powered by 2-cell lithium batteries
- Smart locks, utility meters, and related applications
Key features
- Low standby current (typical 0.1uA)
- Operating voltage range: 1.8V - 8.5V
- Maximum continuous output current: 1.55A (VDD = 6.5V)
- Maximum peak output current: 3A (VDD = 6.5V)
- Low on-resistance (0.55R)
- Low input current; logic inputs INA\INB with integrated 100K pull-down resistors to GND
- Built-in thermal shutdown (TSD) with hysteresis
- ESD rating: 3.5KV (HBM)
