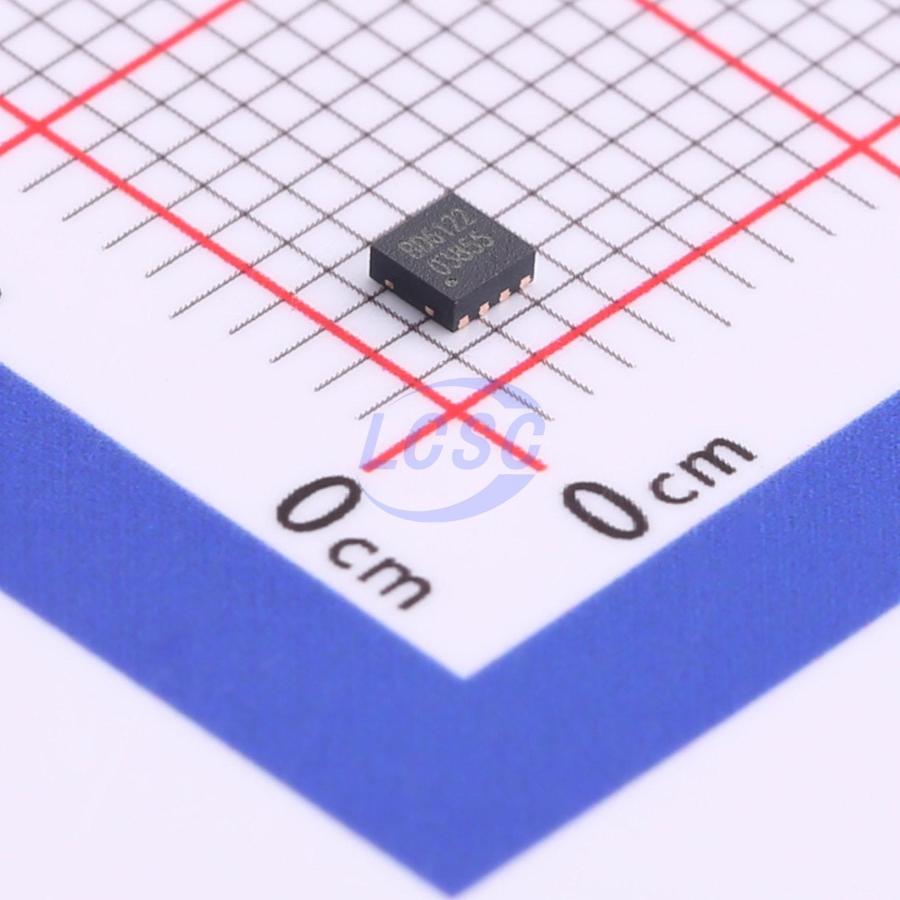

BDR6122T
1.8V~5.5V WDFN-8-EP(2x2) Motor Drivers, Controllers RoHS
1.8A Low-Voltage H-Bridge Driver IC
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDR6122T
- Store part #
- C908104
- Package / case
- WDFN-8-EP(2x2)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,980 in stock
#C908104
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.01 | ₹140.05 |
| 50+ | ₹21.76 | ₹1,088.00 |
| 150+ | ₹19.09 | ₹2,863.50 |
| 500+ | ₹15.76 | ₹7,880.00 |
| 2,500+ | ₹14.65 | ₹36,625.00 |
| 5,000+ | ₹13.75 | ₹68,750.00 |
5 × ₹28.01
₹140.05
excl. GST
₹165.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BDR6122T
₹140.05 for 5 + GST
Specifications
- Features
- Current sensing/regulation function;Active braking function
- Voltage - Supply
- 1.8V~5.5V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 10nA
- Output Current
- 1.8A
- Peak Current
- 3.5A
- RDS(on)
- 280mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
BDR6122T is a DC brushed motor driver IC designed for electric toothbrushes, smart locks, consumer products, and other low-voltage or battery-powered motion control applications. The BDR6122T delivers an output DC current of up to 1.8A. It operates across two supply voltage ranges: VM from 0 to 12V and VCC from 1.8V to 5.5V. The BDR6122T features a PWM (IN1–IN2) input, ultra-low output on-resistance, and is available in DFN8 and SOP8 packages. Integrated protection functions include overcurrent protection, undervoltage lockout, and overtemperature protection.
Applications
- Electronic locks
- Toys
- Wireless charging
- Consumer robotics
Key features
- H-bridge motor driver
- Drives DC brushed motors, inductors, or other loads
- Ultra-low on-resistance: high-side + low-side: 280mΩ
- Maximum 1.8A DC output drive current
- Independent motor and logic voltage supplies
- Motor supply VM: 0 to 12V
- Logic supply VCC: 1.8V to 5.5V
- Low-power sleep mode
- IVM and IVCC quiescent current: 10nA
- Compact package
- DFN8 (2.0×2.0 mm)
- SOP-8
- Protection features
- VCC undervoltage lockout
- Overcurrent protection
- Overtemperature protection
