Bardeen Micro.Datasheet (PDF)

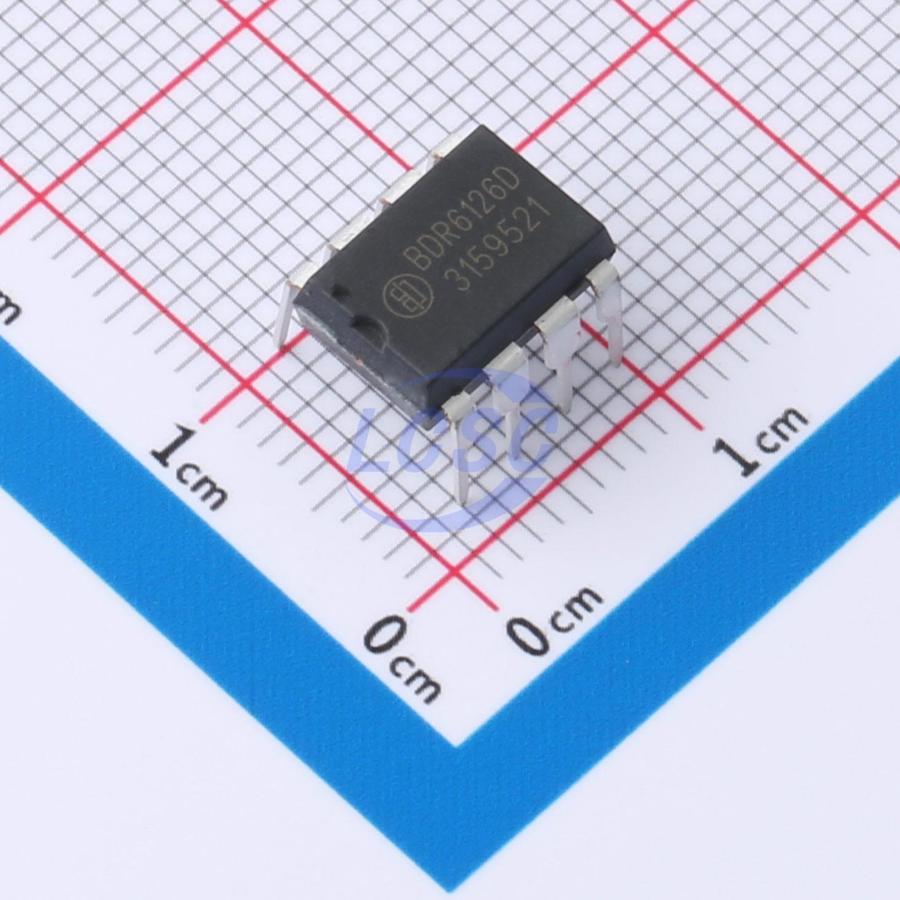

BDR6126D
2.8V~15V DIP8 Motor Drivers, Controllers RoHS
DIP8ROHS CompliantActive
High-power DC motor driver chip
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDR6126D
- Store part #
- C7424658
- Package / case
- DIP8
- Category
- Motor Drivers, Controllers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,678 in stock
#C7424658
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹39.33 | ₹39.33 |
| 10+ | ₹34.33 | ₹343.30 |
| 50+ | ₹32.16 | ₹1,608.00 |
| 100+ | ₹29.56 | ₹2,956.00 |
| 500+ | ₹28.25 | ₹14,125.00 |
| 1,000+ | ₹27.60 | ₹27,600.00 |
1 × ₹39.33
₹39.33
excl. GST
₹46.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
BDR6126D
₹39.33 for 1 + GST
Specifications
- Features
- Active braking function
- Technology
- Yes
- Voltage - Supply
- 2.8V~15V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 200nA
- Output Current
- 4A
- Peak Current
- 15A
- RDS(on)
- 85mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.81 g
Overview
BDR6126D is a DC motor driver IC designed for smart locks, personal care products, and small home appliances. It integrates a full-bridge driver with low on-resistance. Motor forward, reverse, and brake functions are controlled via two logic input pins. BDR6126D is available in a DIP8 package and complies with environmental regulations.
Applications
- Electronic locks
- Personal care devices
- Small home appliances
- Robotics
Key features
- Integrated PMOS/NMOS H-bridge driver
- 2.8 - 15V wide supply voltage range
- Low output on-resistance
- Standby current 0.2uA (typical)
- Continuous current 4A (VDD = 12V)
- Output peak current 15A (ΔVDD = 12V)
- DIP8 package
