Bardeen Micro.Datasheet (PDF)

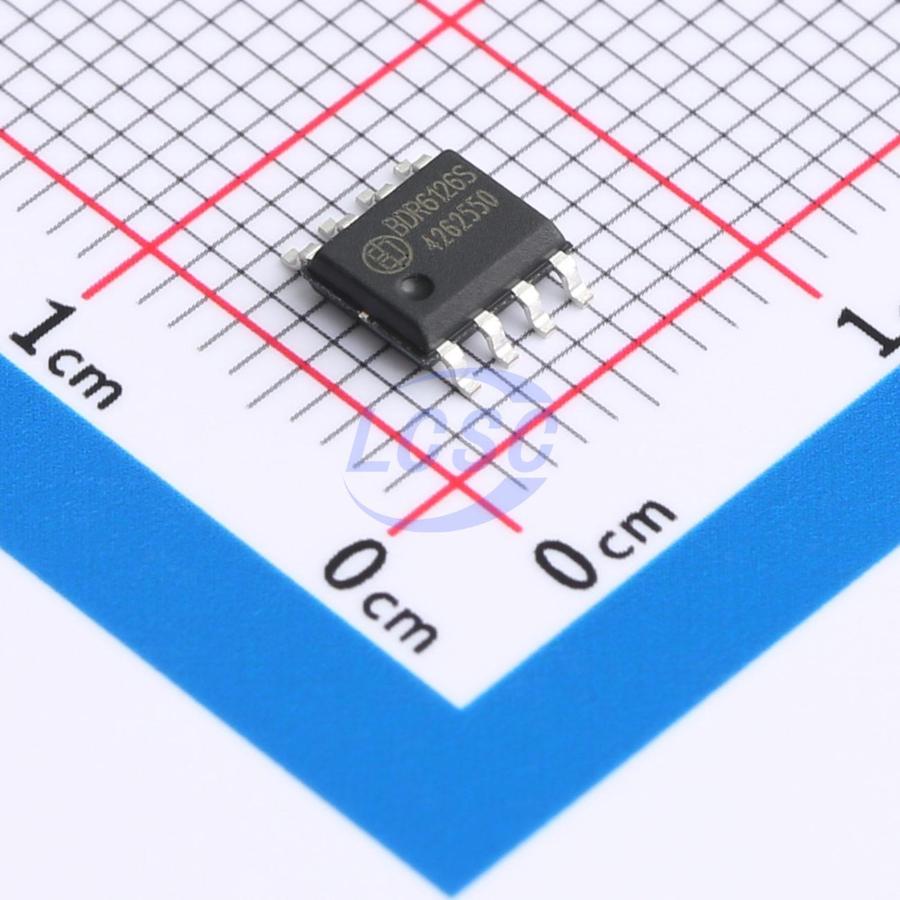

BDR6126S
3V~16V SOP-8 Motor Drivers, Controllers RoHS
SOP-8ROHS CompliantActive
High-power DC motor driver chip
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDR6126S
- Store part #
- C36911434
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,600 in stock
#C36911434
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.56 | ₹222.80 |
| 50+ | ₹34.76 | ₹1,738.00 |
| 150+ | ₹30.56 | ₹4,584.00 |
| 500+ | ₹25.32 | ₹12,660.00 |
| 2,500+ | ₹22.99 | ₹57,475.00 |
| 4,000+ | ₹21.59 | ₹86,360.00 |
5 × ₹44.56
₹222.80
excl. GST
₹262.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BDR6126S
₹222.80 for 5 + GST
Specifications
- Features
- Active braking function
- Technology
- Yes
- Voltage - Supply
- 3V~16V
- Operating Temperature
- -25℃~+85℃
- Output Current
- 1.8A
- Peak Current
- 5A
- RDS(on)
- 140mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.13 g
Overview
BDR6126S is a DC motor driver IC for smart locks, personal care products, and small household appliances. It integrates an H-bridge driver with low on-resistance P/NMOS power transistors. Motor forward, reverse, and brake functions are controlled via two logic inputs. The BDR6126S is available in an SOP8 package and complies with environmental regulations.
Applications
- Electronic locks
- Personal care appliances
- Small home appliances
- Robotics
- Pet appliances
Key features
- Built-in PMOS/NMOS H-bridge driver
- 3~16V wide voltage operating range
- Low output on-resistance
- Standby current less than 1uA
- Continuous current 1.8A (VDD=12V)
- Peak 5A (ΔVDD=12V) current output capability
- SOP8 package
