Bardeen Micro.Datasheet (PDF)
BDR6133
2.7V~5.5V ESOP-8 Motor Drivers, Controllers RoHS
ESOP-8ROHS CompliantActive
1CH DC Motor Driver
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDR6133
- Store part #
- C2687793
- Package / case
- ESOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,992 in stock
#C2687793
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.93 | ₹51.93 |
| 10+ | ₹40.42 | ₹404.20 |
| 30+ | ₹35.64 | ₹1,069.20 |
| 100+ | ₹29.33 | ₹2,933.00 |
| 500+ | ₹27.60 | ₹13,800.00 |
| 1,000+ | ₹25.86 | ₹25,860.00 |
1 × ₹51.93
₹51.93
excl. GST
₹61.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel

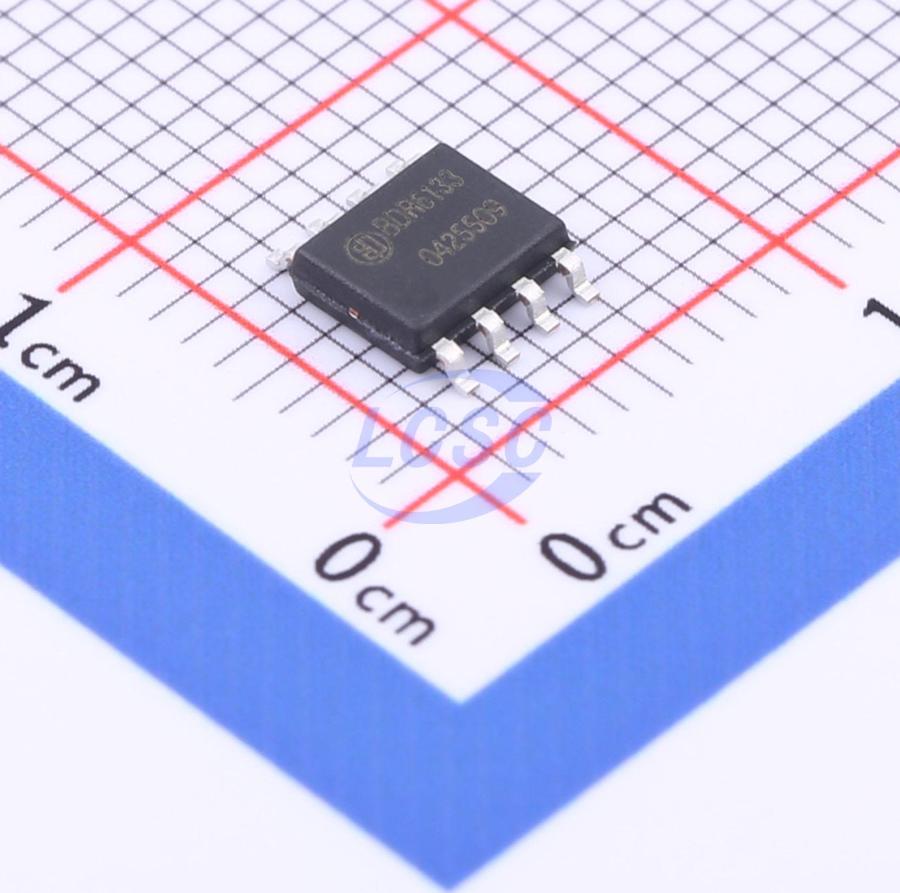

BDR6133
₹51.93 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection
- Voltage - Supply
- 2.7V~5.5V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 50nA
- Output Current
- 2.8A
- Peak Current
- 4.8A
- RDS(on)
- 510mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.153 g
Overview
The BDR6133 is 1 Full-On Drive H-Bridge channel with two different packages. The driver features wide range operating from 2V to 24V and low power consumption by fast switching speed.
Applications
- DC brushed motor
- Auto icemaker or dumper drive for refrigerator
- Intelligent electronic lock
Key features
- It is low consumption by BCD process adoption
- Small packages: ESOP8
- Wide power-supply voltage range:
- Control (VCC): 2.7V~5.5V
- Motor (VM): 2.0V~24V
- High DC output current: Max. = 2.8A
- Ultra low RDSON (TOP+BOT): 0.51Ω (TYP @ 25°C), 1A for ESOP8
- Low current consumption when power-down: < 0.05μA @ 25°C
- PWM control, Max. input frequency: 200KHz
- Operating temperature range: -40~+85°C
- Charge-pump less
- Shoot-through current protection
- Built-in protection circuits:
- Under voltage lock out
- Thermal shut down
