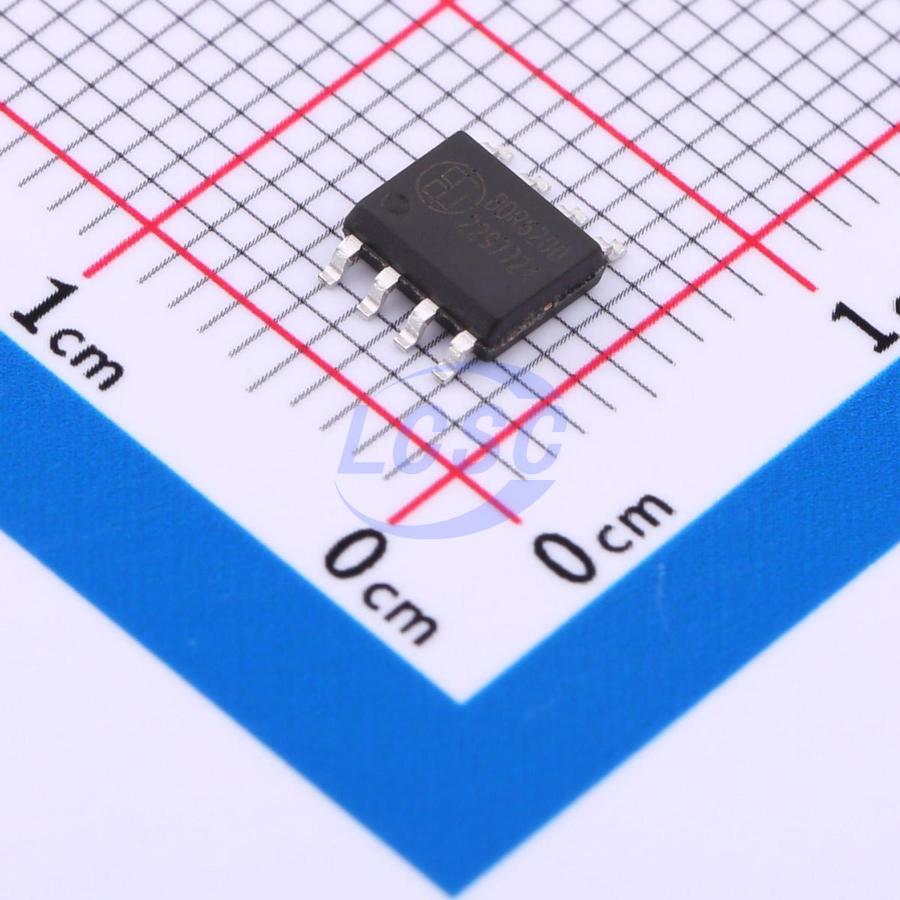

BDR6200
3V~25V SOP-8 Motor Drivers, Controllers RoHS
Motor driver IC
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDR6200
- Store part #
- C5221455
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,335 in stock
#C5221455
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.38 | ₹71.90 |
| 50+ | ₹12.57 | ₹628.50 |
| 150+ | ₹11.79 | ₹1,768.50 |
| 500+ | ₹10.82 | ₹5,410.00 |
| 2,500+ | ₹9.87 | ₹24,675.00 |
| 4,000+ | ₹9.60 | ₹38,400.00 |
5 × ₹14.38
₹71.90
excl. GST
₹84.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BDR6200
₹71.90 for 5 + GST
Specifications
- Number of H-bridges
- 1
- Technology
- No
- Voltage - Supply
- 3V~25V
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.21 g
Overview
BDR6200 is a wide input voltage range, high-current DC brushed motor driver control circuit designed to drive an H-bridge composed of PMOS and NMOS transistors. Since the power PMOS and NMOS are externally configured, the H-bridge drive current capability is determined by the PMOS and NMOS devices, making it suitable for high-current motor drive applications. The circuit supports multiple operating states — including forward, reverse, and braking — via two control signals. Low quiescent current, wide supply voltage range: 3V - 25V
Applications
- High-current motor drive
- High-power toys
- Handheld devices
Key features
- External power PMOS and NMOS transistors
- Three output states: forward, reverse, and brake
- Package: SOP8
