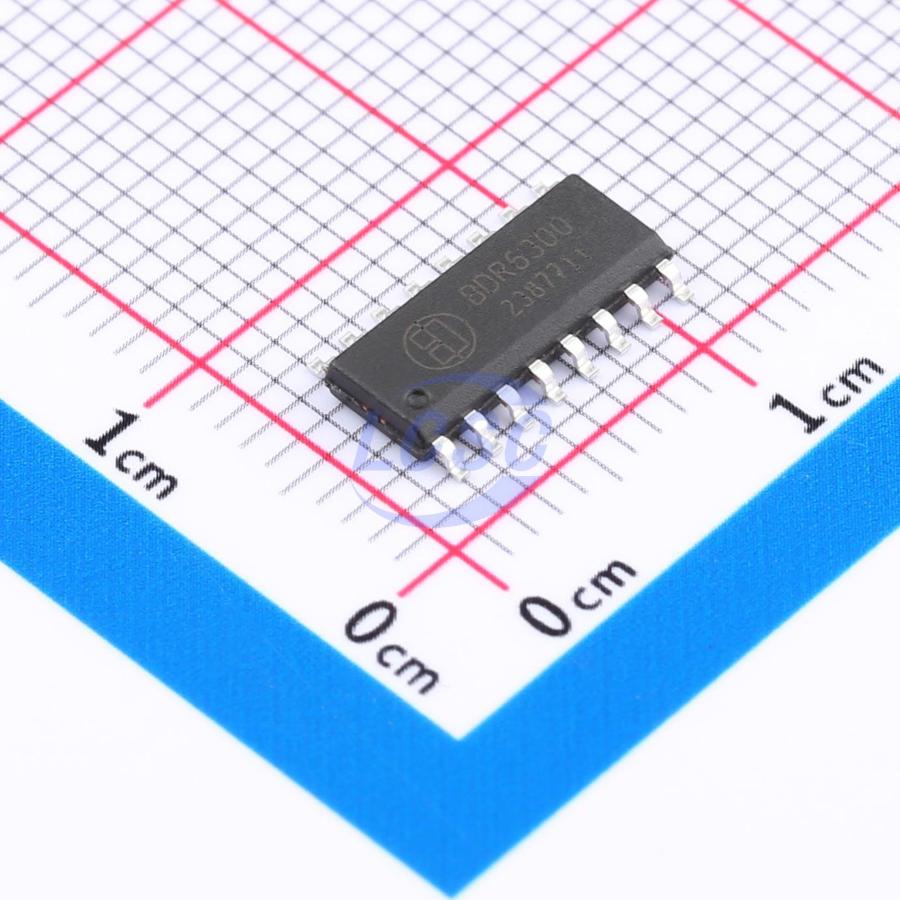

BDR6300
Three Phase Half-Bridge Gate Driver IC MOSFET SOP-16
BDR6300 Three-Phase Gate Driver IC: Low Standby Current, Fast Switching Speed, and Wide Supply Voltage Range
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDR6300
- Store part #
- C5349299
- Package / case
- SOP-16
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,015 in stock
#C5349299
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.57 | ₹87.85 |
| 50+ | ₹13.83 | ₹691.50 |
| 150+ | ₹11.95 | ₹1,792.50 |
| 500+ | ₹10.53 | ₹5,265.00 |
| 2,500+ | ₹9.57 | ₹23,925.00 |
| 4,000+ | ₹9.00 | ₹36,000.00 |
5 × ₹17.57
₹87.85
excl. GST
₹103.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BDR6300
₹87.85 for 5 + GST
Specifications
- Driven Configuration
- Three Phase;Half-Bridge
- Number of Channels
- 3
- Voltage - Supply
- 12V~30V
- Propagation Delay tpHL
- 40ns
- Operating Temperature
- -20℃~+80℃
- Load Type
- MOSFET
- Supply Current (Iq)
- 1mA
- Propagation Delay tpLH
- 70ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
BDR6300 is a three-phase gate driver IC capable of directly driving three NMOS + PMOS half-bridges. An integrated stable 5V output power supply is built into the circuit. The BDR6300 offers greater flexibility in drive-stage MOS selection. When operating at 24V, the internal control circuit ensures that the gate voltage of the PMOS power transistor is approximately 12V during turn-on (i.e., the VGS of the PMOS power transistor is approximately -12V).
Applications
- DC brushless motor drive applications
- Wireless charging drive applications
