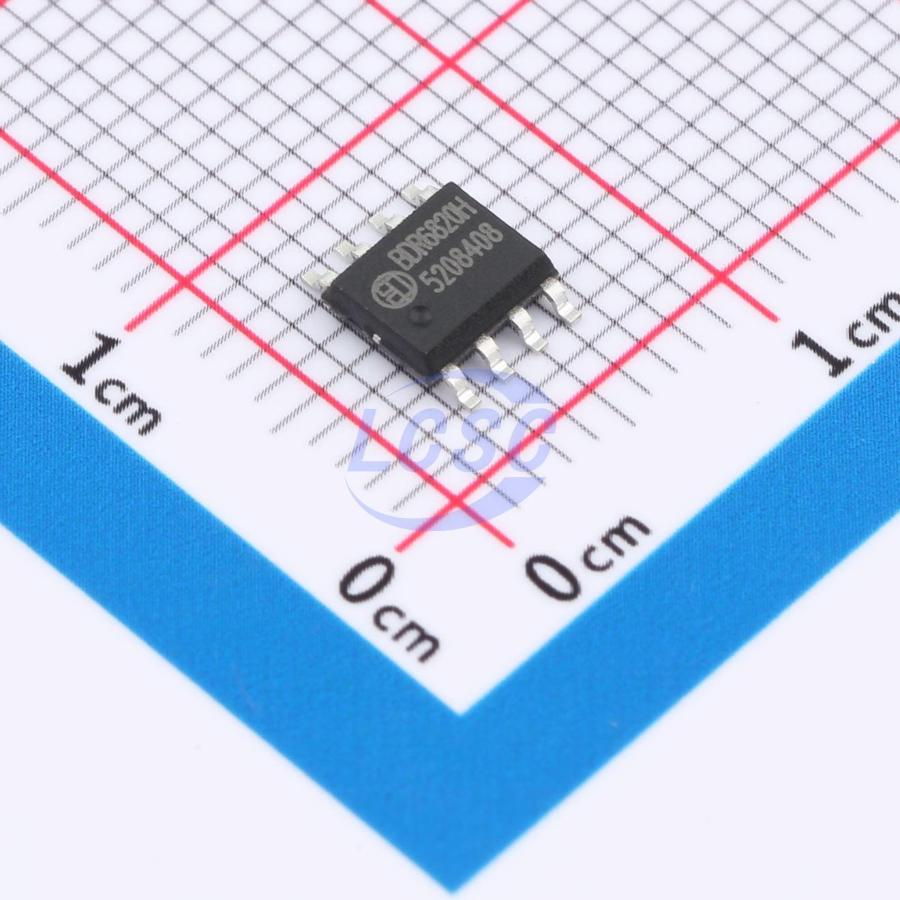

BDR6820H
ESOP-8 Motor Drivers, Controllers
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDR6820H
- Store part #
- C49303001
- Package / case
- ESOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,635 in stock
#C49303001
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.11 | ₹125.55 |
| 50+ | ₹22.04 | ₹1,102.00 |
| 150+ | ₹20.72 | ₹3,108.00 |
| 500+ | ₹19.08 | ₹9,540.00 |
| 2,500+ | ₹18.35 | ₹45,875.00 |
| 4,000+ | ₹17.91 | ₹71,640.00 |
5 × ₹25.11
₹125.55
excl. GST
₹148.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BDR6820H
₹125.55 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Overcurrent Protection;Short-Circuit Protection;Under-voltage lockout;Over temperature protection
- Technology
- Yes
- Operating Temperature
- -25℃~+85℃
- Step Resolution
- 2
- Output Current
- 1A
- Control Voltage
- 4V~20V
- RDS(on)
- 840mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.155 g
Overview
BDR6820H is a dual-channel H-bridge driver IC optimized for motor driving in 12V system applications. Each H-bridge delivers a maximum peak current of 1A and an RMS current of 0.7A (under adequate heat dissipation conditions at 12V and Ta = 25℃), capable of driving two DC motors, one parallel DC motor, or a stepper motor, with support for full-step and half-step drive modes. The IC integrates built-in shutdown protection features including overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature protection.
Applications
- Dual-channel DC and stepper motor drive
- Refrigerators, tumble dryers, vacuum cleaners
- POS printers, label printers
- PoE point-of-sale terminals
- Stage lighting
Key features
- Maximum VCC voltage 24V, maximum I0 current 1A
- Operating voltage range: 4V to 20V
- No 3.3V control supply required
- N+P MOS output resistance (typical) RON < 1Ω
- Zero current consumption in standby
- Parallelable (drive channels in parallel)
- Built-in brake function
- Package: ESOP8
