BORNDatasheet (PDF)

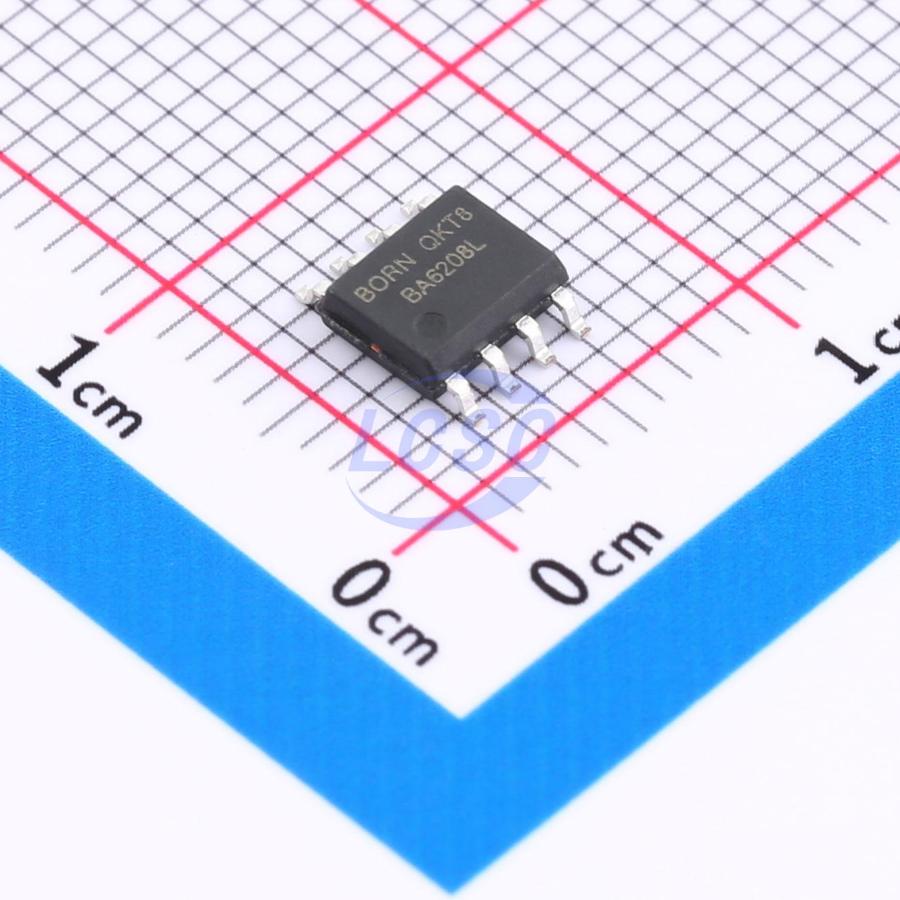

BE6208
4.5V~15V SOP-8 Motor Drivers, Controllers RoHS
SOP-8ROHS CompliantActive
Motor driver
- Manufacturer
- BORN
- Manufacturer part #
- BE6208
- Store part #
- C406218
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,460 in stock
#C406218
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.35 | ₹83.50 |
| 100+ | ₹6.79 | ₹679.00 |
| 300+ | ₹6.01 | ₹1,803.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.07 | ₹24,420.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹8.35
₹83.50
excl. GST
₹98.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BE6208
₹83.50 for 10 + GST
Specifications
- Features
- Active braking function
- Technology
- No
- Voltage - Supply
- 4.5V~15V
- Operating Temperature
- -20℃~+80℃
- Supply Current (Iq)
- 100nA
- Output Current
- 100mA
- Peak Current
- 500mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.174 g
Overview
A dedicated IC designed for controlling and driving bidirectional motors. The input is compatible with TTL/CMOS logic levels with good noise immunity; the internal logic control circuit enables bidirectional motor forward rotation, reverse rotation, and braking; the power transistors support a continuous current with a typical value of 100mA; the built-in clamp diodes dissipate reverse surge currents from inductive loads.
Applications
- Bidirectional motor drive
Key features
- Low quiescent current
- Wide supply voltage range: 4.5V - 15V
- Continuous current output capability per channel (typical: 100mA)
- Low saturation voltage drop
- Four output states: forward, reverse, brake, and high-impedance
- TTL/CMOS output level compatible, direct CPU interface
- Built-in clamp diodes on outputs, suitable for inductive loads
- Control and drive integrated in a single IC
- Pin high-voltage protection
- Operating temperature range: -20℃～+80℃
