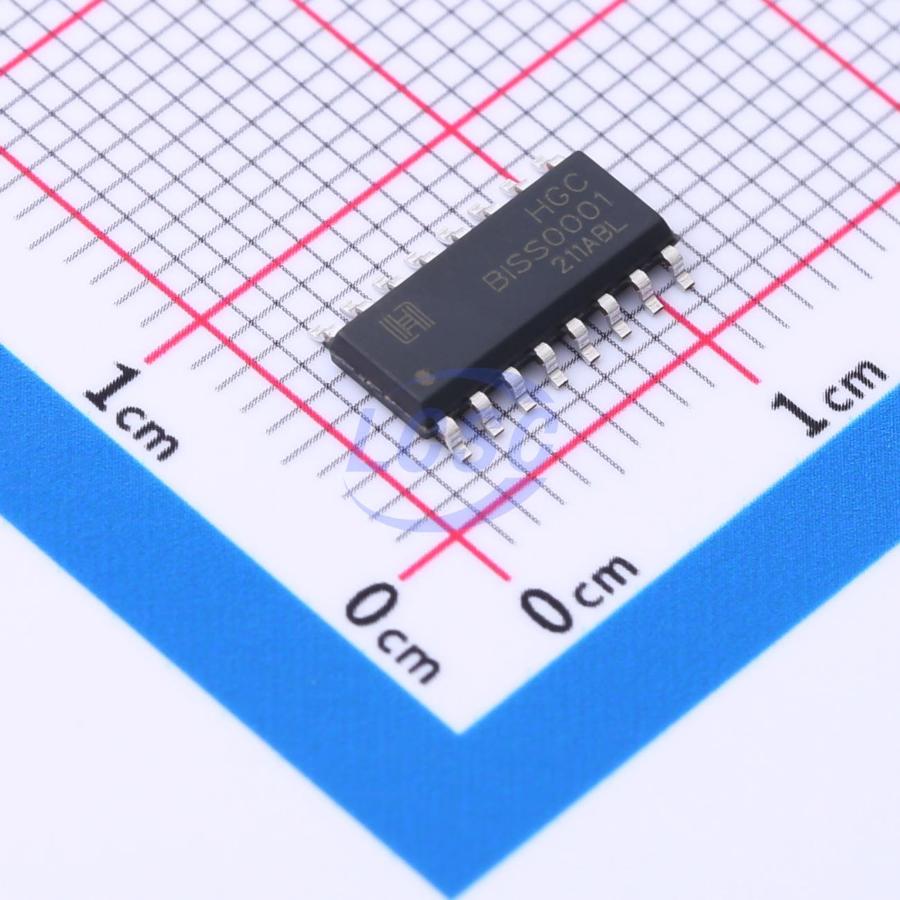

BISS0001DRG
SOP-16 Sensor and Detector Interfaces RoHS
Human body infrared pyroelectric induction controller
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- BISS0001DRG
- Store part #
- C5145437
- Package / case
- SOP-16
- Category
- Sensor and Detector Interfaces
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,915 in stock
#C5145437
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.52 | ₹62.60 |
| 50+ | ₹9.91 | ₹495.50 |
| 150+ | ₹8.61 | ₹1,291.50 |
| 500+ | ₹7.63 | ₹3,815.00 |
| 2,500+ | ₹6.52 | ₹16,300.00 |
| 5,000+ | ₹6.13 | ₹30,650.00 |
5 × ₹12.52
₹62.60
excl. GST
₹73.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BISS0001DRG
₹62.60 for 5 + GST
Specifications
- Features
- Ambient light suppression function
- Current - Supply
- 100uA
- Operating Temperature
- -10℃~+70℃
- Voltage - Supply
- 3V~5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
BISS0001 is a CMOS mixed-signal ASIC developed specifically for pyroelectric infrared (PIR) signal processing, featuring high sensitivity, strong noise immunity, and low power consumption. It integrates an op-amp, voltage comparators, a state controller, a delay time timer, a blocking time timer, and a reference voltage source. Peripheral components can be selected by the user as needed, making it widely applicable to various sensors and delay controllers.
Applications
- Access control systems
- Toys
- Human body sensing lighting
- Other sensor signal processing
Key features
- CMOS mixed-signal ASIC
- Bidirectional amplitude discriminator with effective interference suppression
- Operating voltage range: 3.0 ~ 5.0V
- Package options: DIP-16, SOP-16, TSSOP-16
- Independent high-input-impedance op-amp for signal conditioning, compatible with various sensors
- Built-in delay timer and inhibit timer — novel, stable, and reliable architecture with wide adjustment range
