BLDatasheet (PDF)

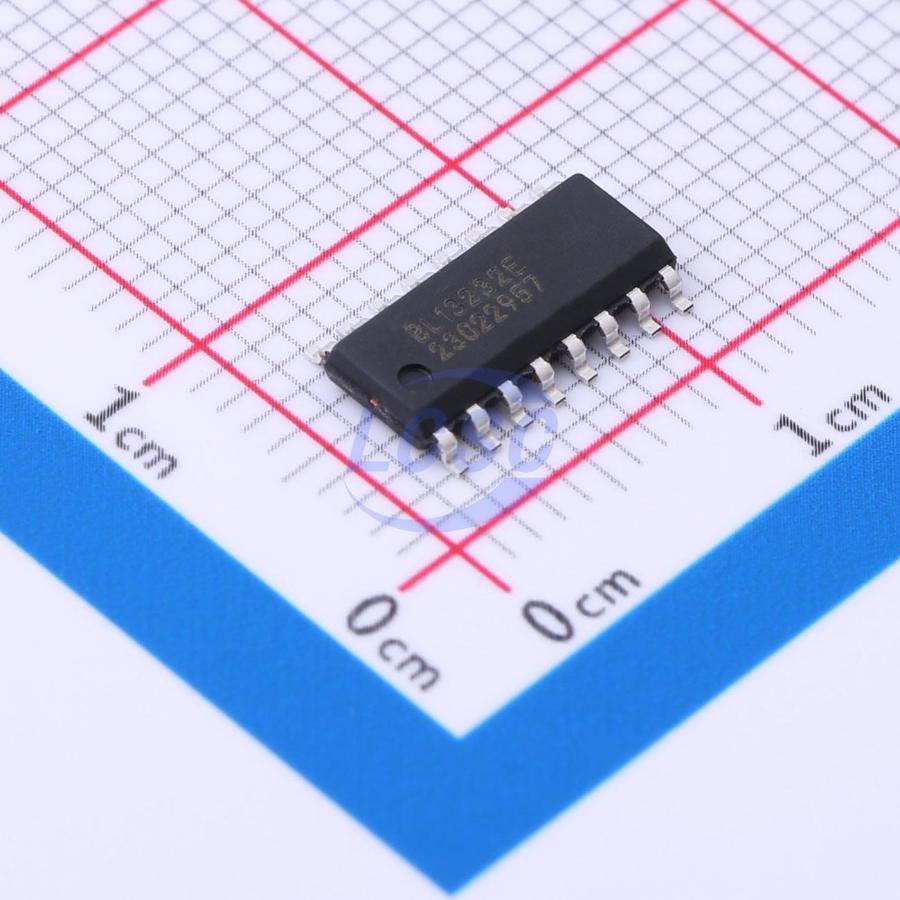

BL13232ESO
Transceiver 3V~5.5V 250Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
3V to 5.5V, 250kbps RS-232 Transceivers
- Manufacturer
- BL
- Manufacturer part #
- BL13232ESO
- Store part #
- C2999149
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,590 in stock
#C2999149
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.02 | ₹215.10 |
| 50+ | ₹35.07 | ₹1,753.50 |
| 150+ | ₹31.66 | ₹4,749.00 |
| 500+ | ₹27.41 | ₹13,705.00 |
| 2,500+ | ₹25.52 | ₹63,800.00 |
| 5,000+ | ₹24.38 | ₹1,21,900.00 |
5 × ₹43.02
₹215.10
excl. GST
₹253.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BL13232ESO
₹215.10 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+125℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 1.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.35 g
Overview
The BL13232E consists of two drivers, two receivers, and a dual charge-pump circuit with ±12kV IEC 61000-4-2 Contact Discharge ESD protection. The BL13232E meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3V to 5.5V supply. The device operates at data signaling rates up to 250 kbps. The BL13232E is available in SOP16 and TSSOP16 package.
Applications
- Battery-Powered Equipment
- Industry Human Machine Interface
- Notebook, Computers
- Printers
Key features
- ESD protection for RS-232 Bus Pins
- ±12kV (IEC61000-4-2, Contact Discharge)
- ±15kV (IEC61000-4-2, Air-Gap Discharge)
- Meets the Requirements of TIA/EIA-232-F standard
- Wide Power Supply Range: Single +3V to +5.5V
- Operates up to 250kbps
- Two Drivers and Two Receivers
- External Capacitors: 4×0.1 μF
- Accepts 5V Logic Input With 3.3V Supply
