BLDatasheet (PDF)

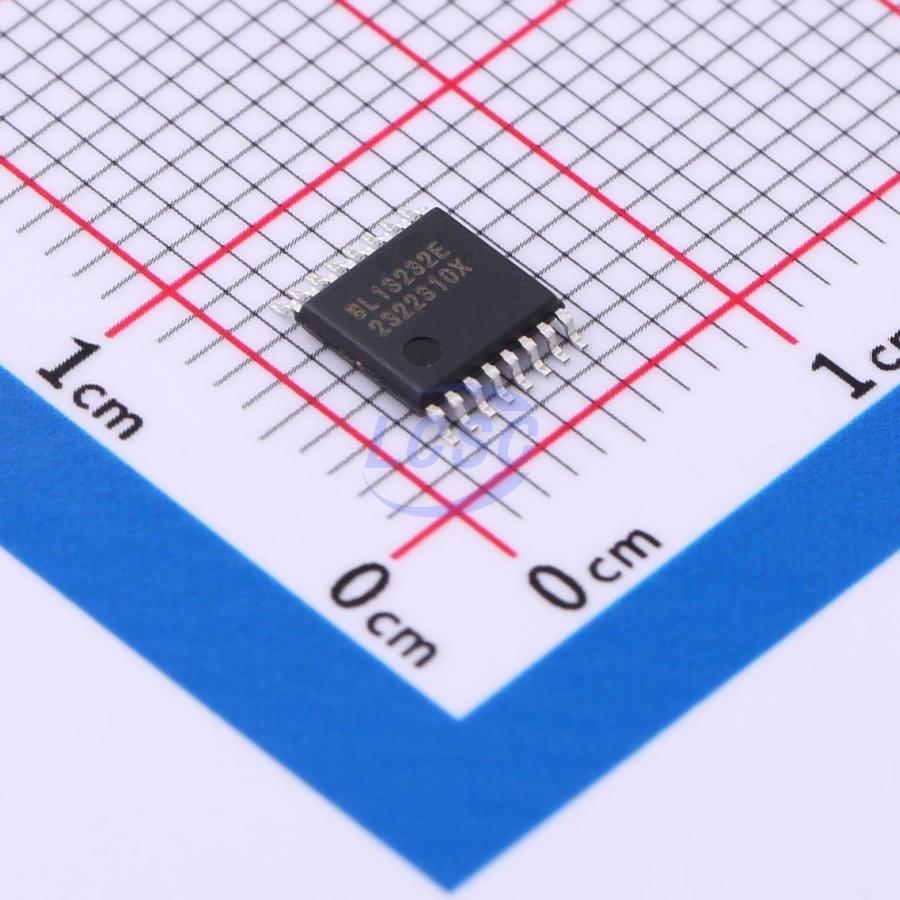

BL13232ETS
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers
TSSOP-16RoHSActive
RS-232 Transceivers
- Manufacturer
- BL
- Manufacturer part #
- BL13232ETS
- Store part #
- C5128657
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,100 in stock
#C5128657
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.93 | ₹259.65 |
| 50+ | ₹41.60 | ₹2,080.00 |
| 150+ | ₹37.16 | ₹5,574.00 |
| 500+ | ₹31.63 | ₹15,815.00 |
| 3,000+ | ₹29.17 | ₹87,510.00 |
| 6,000+ | ₹27.69 | ₹1,66,140.00 |
5 × ₹51.93
₹259.65
excl. GST
₹306.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL13232ETS
₹259.65 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+125℃
- ESD Protect
- ±12kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 1.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
The BL13232E consists of two drivers, two receivers, and a dual charge-pump circuit with ±12 kV IEC 61000-4-2 Contact Discharge ESD protection. The BL13232E meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3V to 5.5V supply. The device operates at data signaling rates up to 250 kbps. The BL13232E is available in SOP16 and TSSOP16 package.
Applications
- Battery-Powered Equipment
- Industry Human Machine Interface
- Notebook, Computers
- Printers
Key features
- ESD protection for RS-232 Bus Pins
- ±12 kV (IEC61000-4-2, Contact Discharge)
- ±15 kV (IEC61000-4-2, Air-Gap Discharge)
- Meets the Requirements of TIA/EIA-232-F standard
- Wide Power Supply Range: Single +3V to +5.5V
- Operates up to 250 kbps
- Two Drivers and Two Receivers
- External Capacitors: 4×0.1 μF
- Accepts 5V Logic Input With 3.3V Supply
