Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
68,115 in stock
#C89291
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.50 | ₹82.50 |
| 50+ | ₹13.60 | ₹680.00 |
| 150+ | ₹12.14 | ₹1,821.00 |
| 500+ | ₹11.07 | ₹5,535.00 |
| 2,500+ | ₹10.19 | ₹25,475.00 |
| 5,000+ | ₹9.76 | ₹48,800.00 |
5 × ₹16.50
₹82.50
excl. GST
₹97.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel

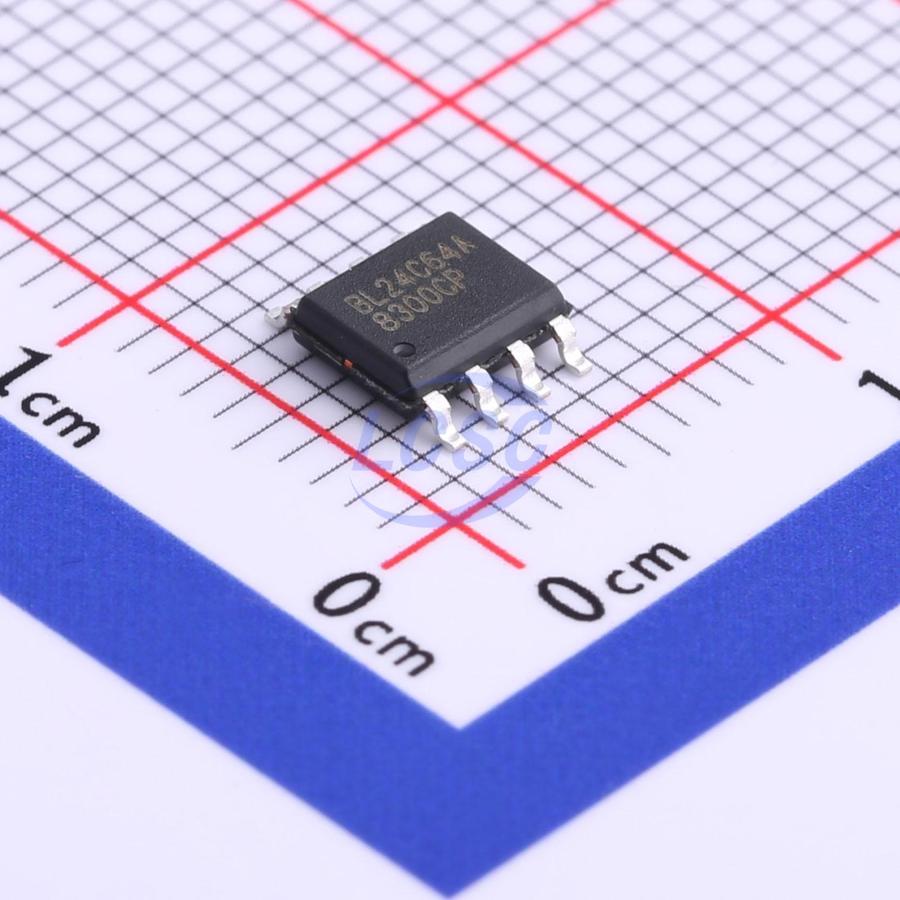

BL24C64A-PARC
₹82.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.198 g
Overview
The BL24C64A provides 65536 bits of serial electrically erasable and programmable readonly memory (EEPROM), organized as 8192 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The BL24C64A offers an additional page, named the Identification Page (32 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Compatible with all I2C bidirectional data transfer protocol
- Memory array:
- 64 Kbits (8 Kbytes) of EEPROM
- Page size: 32 bytes
- Additional Write lockable page
- Single supply voltage and high speed:
- 1 MHz
- Random and sequential Read modes
- Write:
- Byte Write within 3 ms
- Page Write within 3 ms
- Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High-reliability
- Endurance: 1 Million Write Cycles Data Retention: 100 Years
- Enhanced ESD/Latch-up protection
- HBM 8000V
- 8-lead PDIP/SOP/TSSOP/UDFN and WLCSP4 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BL24C64B-PARC#C2981770BL · SOP-8 | BL | SOP-8 | On request | Price on request | Quote |
