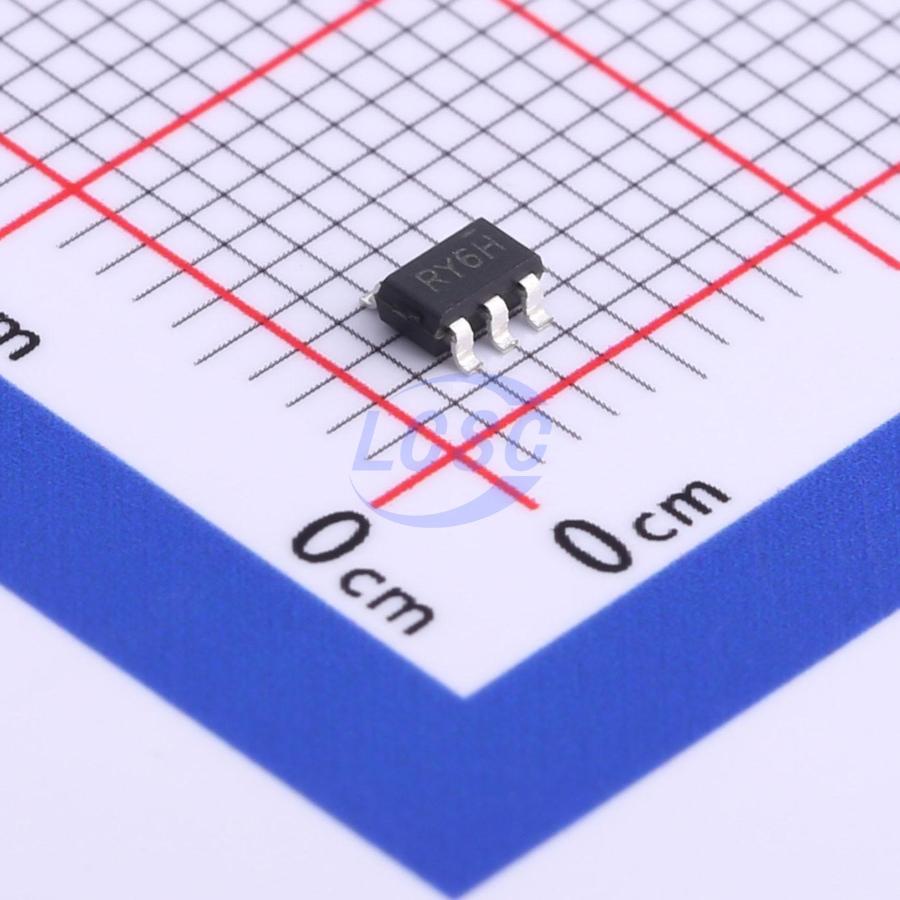

BL8023DCB6TR
5V~36V SOT-23-6 Motor Drivers, Controllers
300mA Bi-Direction Relay Driver
- Manufacturer
- BL
- Manufacturer part #
- BL8023DCB6TR
- Store part #
- C692261
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,820 in stock
#C692261
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.21 | ₹86.05 |
| 50+ | ₹13.57 | ₹678.50 |
| 150+ | ₹11.75 | ₹1,762.50 |
| 500+ | ₹10.39 | ₹5,195.00 |
| 3,000+ | ₹9.29 | ₹27,870.00 |
| 6,000+ | ₹8.75 | ₹52,500.00 |
5 × ₹17.21
₹86.05
excl. GST
₹101.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8023DCB6TR
₹86.05 for 5 + GST
Specifications
- Features
- Bidirectional relay driver
- Voltage - Supply
- 5V~36V
- Operating Temperature
- -40℃~+85℃
- Peak Current
- 500mA
- RDS(on)
- 12Ω
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Discontinued
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.164 g
Overview
BL8023D is a bi-direction relay driver circuit, used to control the magnetic latching relay, with large output capability, ultra-low power consumption. It can be widely used in smart meters and other pulses, level control applications. BL8023D can provide 300mA typical driving current, which will different according to the relay coil resistance. The input High Level Threshold of BL8023D is 3V; it can compatible with most single chip microcontroller. BL8023D is available in SOT-23-6 packages.
Applications
- Smart Meter
Key features
- 5 to 36V input voltage range
- Low Power Consumption (<1uA)
- Input High Level Threshold: 3V, compatible with most single chip microcontroller
- Typical Driving Current: 300mA
- Rds(on) = 12 ohm (Vin = 12V, PMOSFET + NMOSFET)
- Rds(on) = 10 ohm (Vin = 30V, PMOSFET + NMOSFET)
- Peak Driving Current: 500mA @ Vin = 24V
- Environment Temperature: -40°C ~ 85°C
- SOT-23-6 packages
