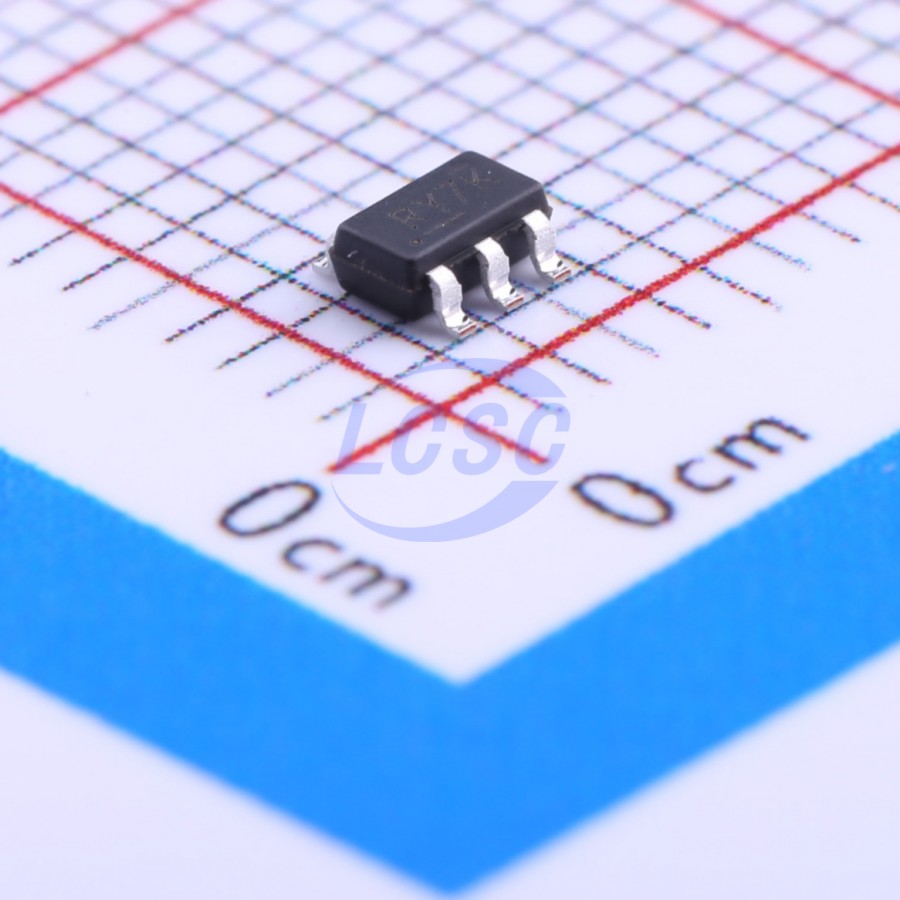

BL8023FCB6TR
5V~36V SOT-23-6 Motor Drivers, Controllers
300mA Bi-Direction Relay Driver
- Manufacturer
- BL
- Manufacturer part #
- BL8023FCB6TR
- Store part #
- C177774
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,645 in stock
#C177774
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.70 | ₹123.50 |
| 50+ | ₹19.98 | ₹999.00 |
| 150+ | ₹17.95 | ₹2,692.50 |
| 500+ | ₹15.41 | ₹7,705.00 |
| 3,000+ | ₹14.29 | ₹42,870.00 |
| 6,000+ | ₹13.61 | ₹81,660.00 |
5 × ₹24.70
₹123.50
excl. GST
₹145.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8023FCB6TR
₹123.50 for 5 + GST
Specifications
- Features
- Bidirectional relay driver
- Voltage - Supply
- 5V~36V
- Operating Temperature
- -40℃~+85℃
- Peak Current
- 500mA
- RDS(on)
- 12Ω
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
BL8023F is a bi-direction relay driver circuit, used to control the magnetic latching relay, with large output capability, ultra-low power consumption. It can be widely used in smart meters and other pulses, level control applications. BL8023F can provide 300mA typical driving current, which will different according to the relay coil resistance. The input High Level Threshold of BL8023F is 2V; it can compatible with most single chip microcontroller. BL8023F is available in SOT-23-6 and SOP-8 packages.
Applications
- Smart Meter
Key features
- 5 to 36V input voltage range
- Low Power Consumption (10<1uA)
- Input High Level Threshold: 2V, compatible with most single chip microcontroller
- Typical Driving Current: 300mA
- Rds(on) = 12 ohm (Vin=12V, PMOSFET + NMOSFET)
- Rds(on) = 10ohm (Vin=30V, PMOSFET + NMOSFET)
- Peak Driving Current: 500mA@Vin=24V
- Environment Temperature: -40°C~85°C
- SOT-23-6 and SOP-8 packages
