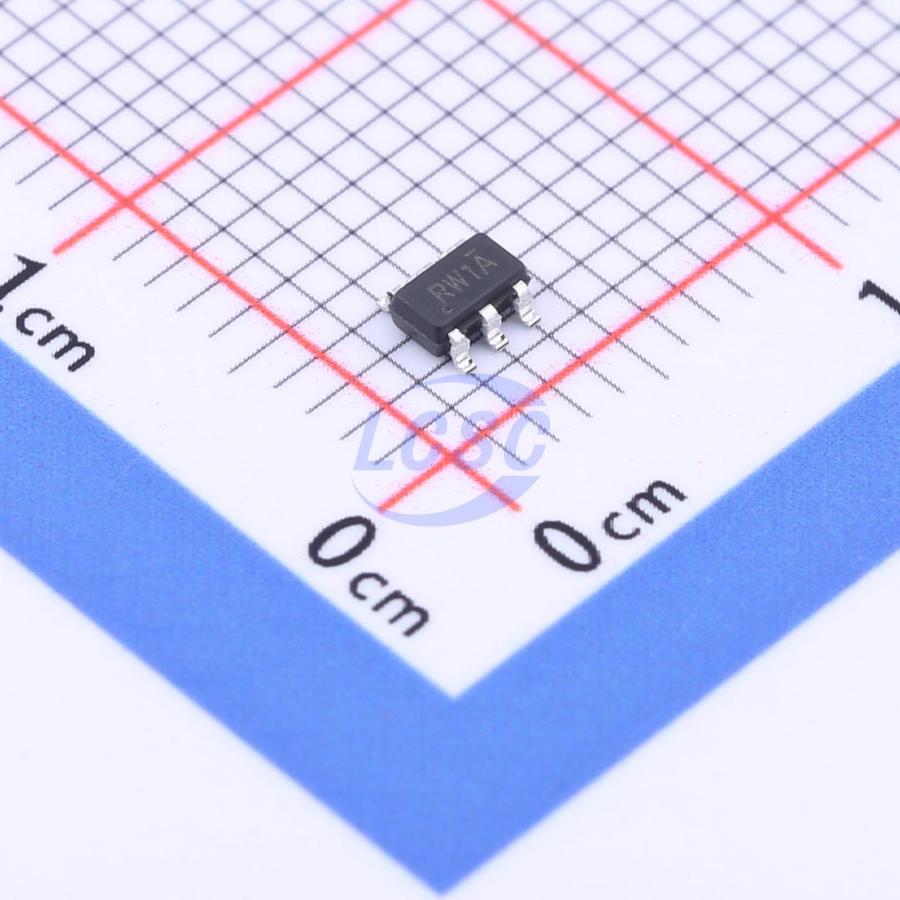

BL8023KCB6TR
5V~40V SOT-23-6 Motor Drivers, Controllers
400mA Bi-Direction Relay Driver
- Manufacturer
- BL
- Manufacturer part #
- BL8023KCB6TR
- Store part #
- C2895360
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,675 in stock
#C2895360
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.28 | ₹101.40 |
| 50+ | ₹16.97 | ₹848.50 |
| 150+ | ₹15.32 | ₹2,298.00 |
| 500+ | ₹14.09 | ₹7,045.00 |
| 3,000+ | ₹13.10 | ₹39,300.00 |
| 6,000+ | ₹12.59 | ₹75,540.00 |
5 × ₹20.28
₹101.40
excl. GST
₹119.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8023KCB6TR
₹101.40 for 5 + GST
Specifications
- Features
- Bidirectional relay driver
- Voltage - Supply
- 5V~40V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 2V
- Peak Current
- 500mA
- RDS(on)
- 7Ω
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
400mA Bi-Direction Relay Driver BL8023K is a bi-direction relay driver circuit, used to control the magnetic latching relay, with large output capability, ultra-low power consumption. It can be widely used in smart meters and other pulses, level control applications. BL8023K can provide 400mA typical driving current, which will different according to the relay coil resistance. The input High Level Threshold of BL8023K is 2V; it can compatible with most single chip microcontroller. BL8023K is available in SOT-23-6 package.
Applications
- Smart Meter
Key features
- 5 to 40V input voltage range
- Low power consumption (IO < 1uA)
- Input high level threshold: 2V, compatible with most single chip microcontroller
- Typical driving current: 400mA
- RDS(ON) = 7ohm (VIN = 12V, PMOSFET + NMOSFET)
- RDS(ON) = 7ohm (VIN = 30V, PMOSFET + NMOSFET)
- Peak driving current: 500mA @ VIN = 24V
- Environment temperature: -40°C ~ 85°C
- SOT-23-6 package
