BLDatasheet (PDF)

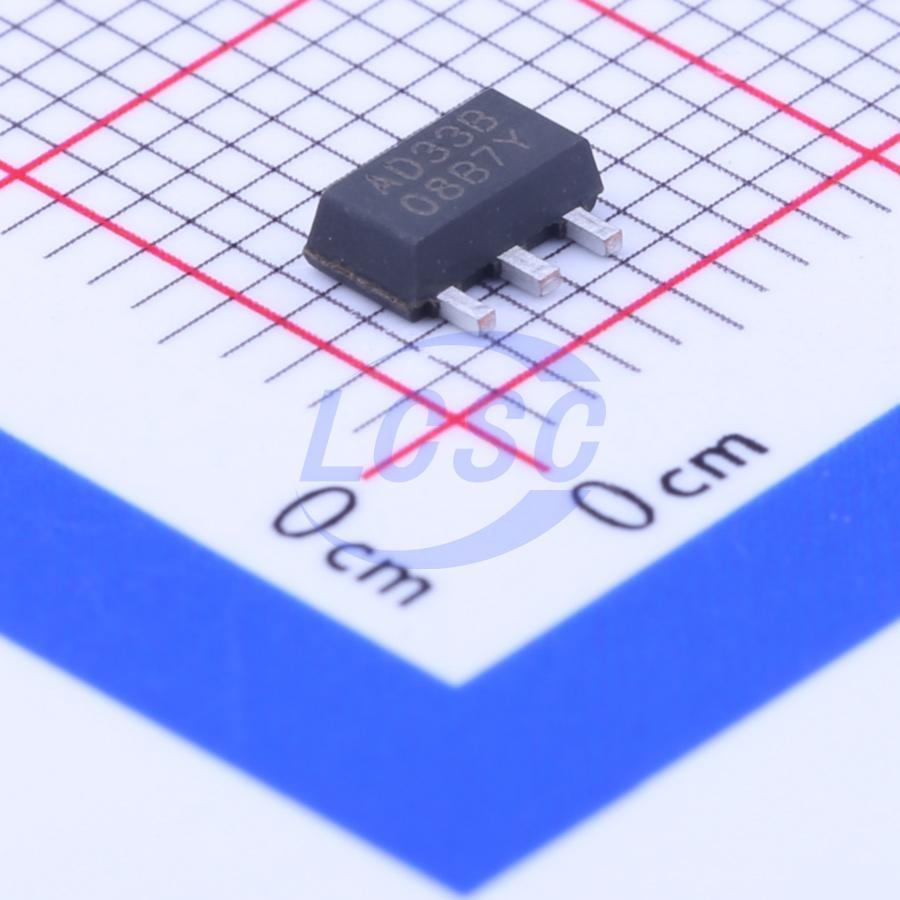

BL8565CC3BTR33
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
500mA High PSRR, Low Dropout Voltage Linear Regulator
- Manufacturer
- BL
- Manufacturer part #
- BL8565CC3BTR33
- Store part #
- C51826
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,405 in stock
#C51826
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.98 | ₹74.90 |
| 50+ | ₹11.84 | ₹592.00 |
| 150+ | ₹10.27 | ₹1,540.50 |
| 1,000+ | ₹9.09 | ₹9,090.00 |
| 2,000+ | ₹8.15 | ₹16,300.00 |
| 5,000+ | ₹7.69 | ₹38,450.00 |
5 × ₹14.98
₹74.90
excl. GST
₹88.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BL8565CC3BTR33
₹74.90 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.194 g
Overview
BL8565 series is a group of positive voltage output, low noise, low power consumption, low dropout voltage regulator. BL8565 can provide output value in the range of 1.5V~4.5V every 0.1V step. It also can be customized on command. BL8565 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module with discharge capability. BL8565 has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. BL8565 is available in SOT-89-3 packages which is lead free.
Applications
- Power Management for Computer, Mother Board, Graphic Card
- LCD Monitor and LCD TV
- DVD Decode Board
- Reference Voltage Source
- Regulation after Switching Power
Key features
- Low Power Consumption: 20uA（Typ.）
- Low output noise (47uVRMS)
- Low dropout Voltage: 0.16V@300mA (Typ.)
- High Ripple Rejection: 73dB@100Hz (Typ.)
- Low Temperature Coefficient: ± 100ppm/°C
- Excellent Line regulation: 0.05%/v
- Build-in chip enable and discharge circuit
- Output Voltage Range: 1.5V~4.5V (customized on command every 0.1V step)
- Highly Accurate: ±2% Output Current Limit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BL8075CC3TR33#C503467BL · SOT-89-3 | BL | SOT-89-3 | 2,185 | ₹19.74 · 2,185 in stock | View |
 | BL9153-33CC3TR#C976195BL · SOT-89-3L | BL | SOT-89-3L | On request | Price on request | Quote |
 | BL1117C-33CM#C2932480BL · SOT-89-3L | BL | SOT-89-3L | 2,290 | ₹9.90 · 2,290 in stock | View |
