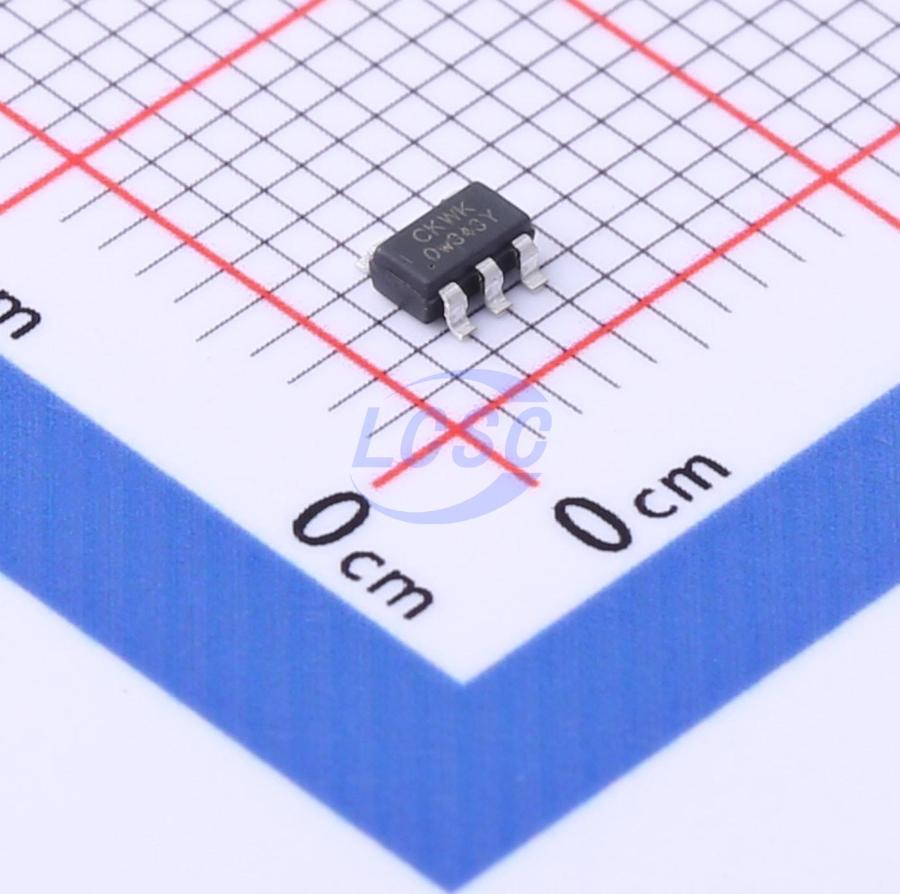

BL9162-330BARN

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

300mA High PSRR, Ultra-low Noise, Ultra-Fast CMOS LDO Regulator

Manufacturer: BL
Manufacturer part #: BL9162-330BARN
Store part #: C2836597
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,680 in stock

#C2836597

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.30	₹56.50
50+	₹9.01	₹450.50
150+	₹7.86	₹1,179.00
500+	₹7.00	₹3,500.00
3,000+	₹6.31	₹18,930.00
6,000+	₹5.97	₹35,820.00

Quantity (min 5, multiples of 5)

5 × ₹11.30

₹56.50

excl. GST

₹66.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

BL9162-330BARN

₹56.50 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 180uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.487 g

Overview

The BL9162 is designed for portable applications with demanding performance and space requirements. The BL9162 performance is optimized for battery-powered systems to deliver ultra-low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The BL9162 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The BL9162 consumes only 0.1μA current in shutdown mode and has fast turn-on time (Typical 100μs). The other features include ultra-low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.

Applications

Cellular and Smart Phones
Cordless Telephones
Camera and Machine Vision Modules
Battery-Powered Equipment
Laptop, Palmtops, Notebook Computers
Hand-Held Instruments
PCMCIA Cards Portable Information Appliances

Key features

Ultra-low Noise
Ultra-Fast Transient Response
High PSRR: -87dB @ 217Hz -83dB @ 1KHz -54dB @ 1MHz
0.1μA Standby Current When Shutdown
Low Dropout: 140mV@300mA (VOUT = 2.8V)
Wide Operating Voltage Ranges: 1.6V to 5.5V
Current Limiting and Short Circuit Current Protection
Thermal Shutdown Protection
Only 1μF Output Capacitor Required for Stability
Fast output discharge
Available in SOT23-5, SC70-5 and DFN1X1-4L Packages
